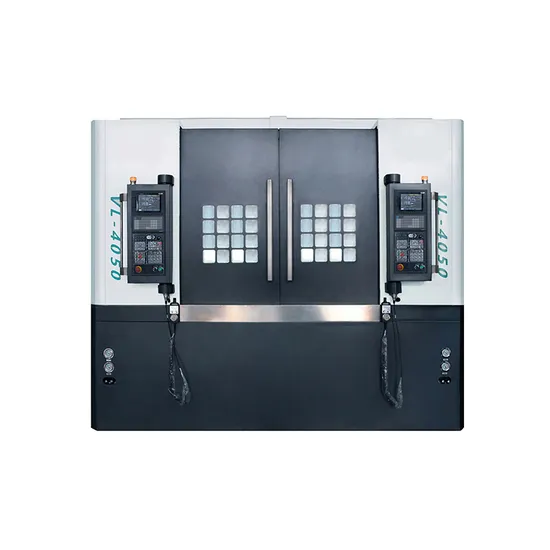

High Quality Metal Small Twin Spindle Double Column CNC Vertical Turning Lathe Machine 5% off
| US$20,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
RD-VL6065S DOUBLE SPINDLE
Type
Vertical Lathe
Processing Accessory
Centre CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE
Condition
New
Max. Swing Diameter
650
Max. Turning Diameter
600
Max. Turning Height
600
Spindle Speed
50-2000
Max. Spindle Torque
600
Transport Package
Wooden Case
Specification
3300x2800x3000
Trademark
Fagor
Origin
China
Production Capacity
100
Product Description
| ITEM | UNIT | RD-VL6065 | RD-VL6065S SINGLE SPINDLE | RD-VL6065S DOUBLE SPINDLE |
| Max. swing diameter | mm | 650 | 650 | 650 |
| Max. turning diameter | mm | 600 | 600 | 600 |
| Max. turning height | mm | 650 | 600 | 600 |
| Spindle nose | A2-8 | A2-8 | A2-8 | |
| Spindle speed | r/min | 50~2000 | 50~2000 | 50~2000 |
| Chuck diameter | in | 12 | 12 | 12 |
| Max. spindle torque | N.m | 600 | 600 | 600 |
| Max. loading capacity | kg | 800 | 800 | 800 |
| Spindle motor power | kw | 22 | 22 | 22 |
| CNC system | FANUC/SIEMENS/KND/GSK | FANUC/SIEMENS/KND/GSK | FANUC/SIEMENS/KND/GSK | |
| 2 axis guide rail | SRG45LR Extended slider | 45 roller guide | 45 roller guide | |
| 2 axis lead screw | DIK4210 | 4210 | 4210 | |
| X/Z axis motor power | kw | 2.8/3.6 | 2.8/3.6 | 2.8/3.6 |
| X/Z axis fast move speed | m/min | 20 | 20 | 20 |
| X axis travel | mm | -30~+650 | -30~+650 | -30~+650 |
| Z axis travel | mm | 600 | 600 | 600 |
| X/Z axis positioning accuracy | mm | ±0.005 | ±0.005 | ±0.005 |
| X/Z axis repeated positioning accuracy | mm | ±0.003 | ±0.003 | ±0.003 |
| Turret tool number | 10/12 | 10/12 | 10/12 | |
| Tool size O.D tool/Boring tool | mm | 25x25/40 | 25x25/40 | 25x25/40 |
| Hydraulic control range | MPa | 0.1-6 | 0.1-6 | 0.1-6 |
| Machining precision | IT6~IT7 | IT6~IT7 | IT6~IT7 | |
| Surface roughness | Ra1.6 | Ra1.6 | Ra1.6 | |
| Stampings pump head/flow | 34m/4m³/h | 34m/4m³/h | 34m/4m³/h | |
| Cooling pump head/flow | 28m/4m³/h | 28m/4m³/h | 28m/4m³/h | |
| Chip conveyor | Chain chip removal | Chain chip removal | Chain chip removal | |
| Working voltage | Hz | 380V±10% 50Hz | 380V±10% 50Hz | 380V±10% 50Hz |
| Machine electrical capacity | kVA | 35 | 35kVA*2 | 35kVA*2 |
| Dimension | mm | 1700x2800x3000 | 3300x2800x3000 | 3300x2800x3000 |
| Machine tool protection | Full protection | Full protection | Full protection | |
| Weight | kg | 7500 | 12000 | 12000 |
