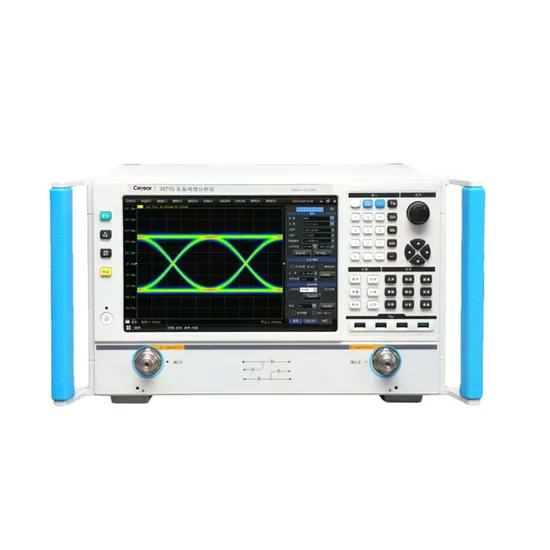

Ceyear 3671c 100kHz-14GHz Ector Network Analyzer Measuring Microwave

Product Description

3671 series vector network analyzer 3671 series vector network analyzer include 3671C (100 kHz~14GHz), 3671D (100 kHz~20GHz), 3671E (100 kHz~26.5GHz), 3671G (10MHz~43.5GHz). 3671series network analyzer provides frequency response, Single-port, response isolation, enhanced response, full-dual port, electronic calibration etc. Offer various display formats, such as logarithmic amplitude, linear amplitude, phase, group delay, Smith chart and polar coordinates. It designed with several standard interfaces, such as: USB, LAN, GPIB, VGA, and HDMI interface. It can accurately measure the amplitude frequency characteristics and phase frequency characteristics and group delay characteristics of microwave network. 3671 series vector network analyzers retain the features of high-end vector network analyzers, including performance indicators, instrument appearance, display effect, software interface, etc., while controlling the volume, weight, wind noise and other aspects of the instrument to create a good experience for users. The product can be widely used in communication and other fields, which are indispensable test equipment in university scientific research.
Features Flexible calibration type, compatible with multiple calibration kits 3671 series vector network analyzer provides different types of calibration such as automated calibration, guided calibration (through response calibration, through response and isolation, single port calibration, enhanced response calibration, full two-port SOLT calibration, TRL calibration can be achieve by mechanical calibration kits), electrical calibration (ECal) etc. Users can choose calibration types based on the test requirements, which greatly facilitates testing on devices with different interfaces.
Multiple windows to display all measuring channels The analyzer possess functions of multi-channel and multi-window display, support up to 64 channels, maximum 32 measuring windows can be simultaneously displayed, and each window can simultaneously display up to 16 test traces, which makes the observation result more visible and the operation more convenient.
specifications
3671C/D/E Technical Specifications

Frequency Characteristic
Frequency Range		100kHz~14/20/26.5GHz
Frequency Resolution		0.1Hz
Frequency Accuracy		±1×10-7(23ºC±3ºC)
Port Output Characteristic
Max Output Power		2-port	4-port
		+5dBm (100kHz~10MHz) +15dBm (10MHz~4GHz) +15dBm (4GHz~10GHz) +10dBm (10GHz~14GHz) +9dBm (14GHz~20GHz) +6dBm (20GHz~24GHz) 0dBm (24GHz~26.5GHz)	+3dBm (100kHz~10MHz) +13dBm (10MHz~4GHz) +10dBm (4GHz~10GHz) +4dBm (10GHz~14GHz) +3dBm (14GHz~20GHz) -2dBm (20GHz~24GHz) -6dBm (24GHz~26.5GHz)
Power Sweep Range		40dB(100kHz~10MHz) 45dB(10MHz~20GHz) 40dB(20GHz~26.5GHz)	40dB(100kHz~10MHz) 38dB(10MHz~20GHz) 34dB(20GHz~26.5GHz)
Network parameter characteristic
System Dynamic Range (10Hz intermediate frequency bandwidth)	2-port		4-port
	102dB (100kHz~10MHz) 132dB (10MHz~4GHz) 133dB (4GHz~10GHz) 125dB (10GHz~14GHz) 124dB (14GHz~20GHz) 120dB (20GHz~24GHz) 115dB (24GHz~26.5GHz)		102dB (100kHz~10MHz) 132dB (10MHz~4GHz) 130dB (4GHz~10GHz) 120dB (10GHz~14GHz) 119dB (14GHz~20GHz) 115dB (20GHz~24GHz) 110dB (24GHz~26.5GHz)
Effective Directivity	48dB(100kHz~2GHz) 44dB(2GHz~20GHz) 44dB(20GHz~26.5GHz)
Effective Source Match	40dB(100kHz~2GHz) 30dB(2GHz~20GHz) 30dB(20GHz~26.5GHz)
Effective Load Match	48dB(100kHz~2GHz) 44dB(2GHz~20GHz) 44dB(20GHz~26.5GHz)
Reflection Tracking (1kHz intermediate frequency bandwidth)	±0.04dB(100kHz~100MHz) ±0.05dB(100MHz~20GHz) ±0.05dB(20GHz~26.5GHz)
Transmission Tracking (1kHz intermediate frequency bandwidth)	±0.10dB(100kHz~100MHz) ±0.08dB(100MHz~20GHz) ±0.10dB(20GHz~26.5GHz)
Others
Amplitude Trace (-5dBm,1kHz intermediate frequency bandwidth)		0.010 dB rms (100kHz~50MHz) 0.005 dB rms (50MHz~500MHz) 0.001 dB rms (500MHz~14GHz) 0.001 dB rms (14GHz~20GHz) 0.002 dB rms (20GHz~26.5GHz)
Phase trace noise (-5dBm,1kHz intermediate frequency bandwidth)		0.100 deg rms (100kHz~50MHz) 0.040 deg rms (50MHz~500MHz) 0.030 deg rms (500MHz~14GHz) 0.040 deg rms (14GHz~20GHz) 0.040 deg rms (20GHz~26.5GHz)
Intermediate Frequency Bandwidth		1Hz~30MHz
Amplitude Display Resolution		0.001dB/div
Phase Display Resolution		0.01°/div
Setting Requirement of Reference Level Amplitude		-500~+500dB
Setting Requirement of Reference Level Phase		-500~+500°
Sweep Time (Full frequency sweep, 201 points, 600kHz if bandwidth, calibration off)		43ms
Max. Sweep Point		200001points
General Characteristics
Port connection		3.5mm(male)
System Impedance		50Ω
Number Of Measuring Ports		2/4 ports
Peripheral Interface		USB,GPIB,VGA,LAN,HDMI interface
Operating System		Windows 7
Display		12.1inch 16:10 screen (Equipped with capacitive touch function)
Size		W´H´D≈426mm×266mm×400mm(No soles, no handles) W´H´D≈516mm×280mm×490mm(include soles and handles)
Max. Power Consumption		300W
Power Supply		50Hz 220V or 50Hz/60Hz 110V AC
Max. Weight		25kg

Typical Application Automatic fixture removal (option)
The measurement objects of vector network analyzers involve non-standard connector devices, such as packaged microwave devices and on chip devices. The most significant feature of such devices is that they cannot be directly connected to vector network analyzers. The use of fixtures can connect the tested part to the vector network analyzer, but it also introduces fixture errors. The automatic fixture removal function can extract, store, and embed fixture parameters to obtain the true parameters of the tested part, which is easy to operate and has high accuracy.
When describing fixtures, single end fixtures and differential fixtures can be set, and information such as the number of ports of the fixture can also be selected. To extract fixture parameters, it is necessary to measure the fixture standards. In the standard description interface, the fixture standard includes three types: straight through standard, open circuit standard, and short circuit standard.
Utilize the automatic fixture removal function to extract balance parameters from the tested piece as a whole and perform four port de embedding. The test results show that the transmission parameters can be effectively removed, as well as near-end and far-end crosstalk.
