Automatic Inner Props Welding Machine Steel Prop Welding Equipment

Product Description

Product Description

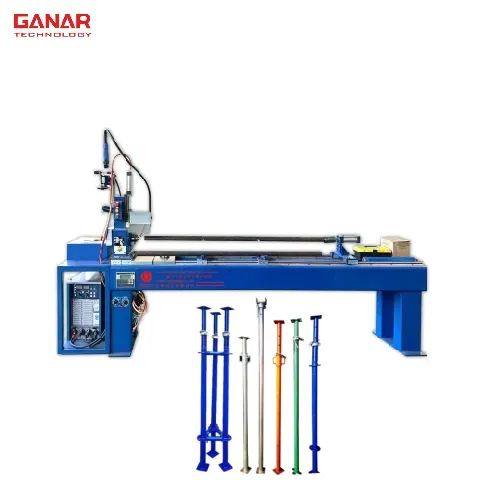

VH-SP01 Steel Prop Inner Props Automatic Welding Machine
Automatic steel prop inner props welding machine. Equipped with 1pc welding gun, automatic feeding system.
. PLC Controlled.
.Suitable both for Φ48mm & Φ60mm pipes.
.No need spot welding in advance, fully automatic.
.Welding time 13s per piece. The loading & unloading time is 20s.
If your working time is 8 hoursx60x60=28800s/33s=872pcs per day.
Detailed Photos
VH-SP01 Steel Prop Inner Props Welding Machine
After Welding:
Welding Machine:

Machine Name	Japan OTC Full Digital Inverter Welding Machine
Welding Power Source Item No.	CPVE-400
Brand	Japan OTC
Rate Input Voltage	3 ph 380v 10%,50/60Hz
Rate Output Current	400A/34V
Gas	CO2/MAG
Wire Type	Solid Wire, lux-cored Wire
Wire Diameter	Φ0.8, Φ0.9, Φ1.0, Φ1.2
Rate Input	16.2KVA/15.3KW
Range of Output Voltage	30-400A
Rated of Output Voltage	12-45V
Rated Duty Cycle	100%
Power Factor	0.95
Rated no-load Voltage	67.5V
Memory	30
Insuating Level	H level
Dimension (WXDXH)	345*550*580mm
Weight	55kg
Wire Feeder Specifications
Wire Feeder	CM-6201 (1-wire)/CM621(3-wire)/CM-8201(1-wire)
Suitable For Wire Diameter	(Φ0.8),( Φ0.9), Φ1.0, Φ1.2,(1.4),(1.6)
Wire Feeding Speed	1.8-22.0m/min
Wire Carry Weight	Max 25kg
Weight	7.1kg/6.9kg/11kg
Other Equipment
Welding Torch	WT3510-SCD/WT3510-SCP
Gas Flow Regulator	W-198-36V
Power Cable	BTPT-5002
Wire Feeder Air Tube	K5857
Wire Feeder Control Cable	BKCPP-0402
Analog Remote Control	P30092Z00

Product Parameters

Name	Steel Support Inner Props Automatic Welding Machine
Item No.	VH-SP01
Brand	VANHN
Welding technology	Gas shielded welding MAG/CO2)
Steel tube length range	1000mm-2600mm
Steel tube inner diameter range	Φ48mm-Φ60mm
Tube thickness	2.5-3.5mm
Steel tube rotation speed range(rpm)	3.0-20.0
Welding gun	1 pc
Welding gun manual adjusting range	X:100mm Y:100mm
Welding gun lifting stroke	0.100mm
Rotary spindle center height	150mm
Rated voltage	3 Phase 50Hz/AC380V+Zero line 220V
Rated power	11kw
Max. current of the collecting ring	800A
Air pressure range (Mpa)	0.4-0.6
Machine dimension	L:3300mm W:700mm H:1500mm
Machine weight	700kg
Packing dimension	L:3800mm W:1000mm H:1700mm
Machine packaging weight	1000kg
