China Manufacture Factory Price Two Roll Rubber Open Mixing Mill

Product Description

China professional manufacture of two roll rubber open mixing mill 1. Basic introduction China professional manufacture of two roll rubber open mixing mill is used for mixing and kneading raw rubber, synthetic rubber, thermoplastics or E.V.A.with chemicals into final materials. The final materials can be fed to calender, hot presses or other processing machine for making rubber or plastic products.
It is mainly used in following cases for rubber products factory: natural rubber refining, raw rubber and compound ingredient mixing, warming refining and sheeting of glue stock.
Parameters of China professional manufacture of two roll rubber open mixing mill

Specification&type	Roll diameter ×Length(mm)	Linear speed of front (m/min)	Roll friction ratio	Batch volume (kg)	Motor power (KW)	Max.nip adjusting (mm)	Overall dimension (mm)	Weight (t)
X(S)K-160 6 Inch	160×320	8.95	1:1.35	1-4	5.5	4.5	1120×920×1295	1.1
X(S)K-250 10 Inch	250×620	15.20	1:1.10	4-15	18.5	8	3220×1500×1290	3.8
X(S)K-360 14 Inch	360×900	16.26	1:1.25	15-30	30	10	3920×1650×1725	5.53
X(S)K-400 16 Inch	400×1000	18.65	1:1.27	30-50	40	10	4380×1710×1880	8.14
X(S)K-450 18 Inch	450×1200	23.85	1:1.27	50-80	55	8	5050×1920×1870	13
X(S)K-560 22 Inch	560×1530	25.8	1:1.315	80-95	95	12	5830×2300×2000	22
X(S)K-610 24 Inch	610×2000	28.4	1:1.25	100-150	160	15	6750×3040×1743	35
XKY-660 26 Inch	660×2130	29.8	1:1.09	150-220	185	15	7450×3660×2080	45

More details of China professional manufacture of two roll rubber open mixing mill
What can you do with it
rubber mixing mill machine is used for mixing and kneading raw rubber, synthetic rubber, thermoplastics with chemicals into final materials.
The final materials can be fed to rubber calender, hot presses or other processing machine for making rubber or plastic products.
When will you need it
This machine is mainly used in following cases for rubber porduction factory, natural rubber refining , raw rubber and compound ingredient mixing .

Main Features of China professional manufacture of two roll rubber open mixing mill
· Standard framework,stable performance, easy to operate.
· A range of speeds and fraction ratios are optional, which can satisfy customers' requirements.
· With good performance,Frame, and base, are all welded and treated by annealing for stress relieving.
· Chilled alloy cast iron roll is abrasion resistant with long service life.
· The speed reducer is the hard-tooth surface gear reducer, which has long service life and low noise.
·Emergency stop device can ensure the safety of worker and equipment.
· The seal structure with special design can eliminate the leaking phenomenon of lubricating oil.
· Human nature designed operating system reduces labor intensity.
· Modular structure offers various structures for customers' option.
· The flexible design system can satisfy customers' special design requirements within the shortest time.
· On-Load running test will be made after assembling equipments in our company to ensure the quality .

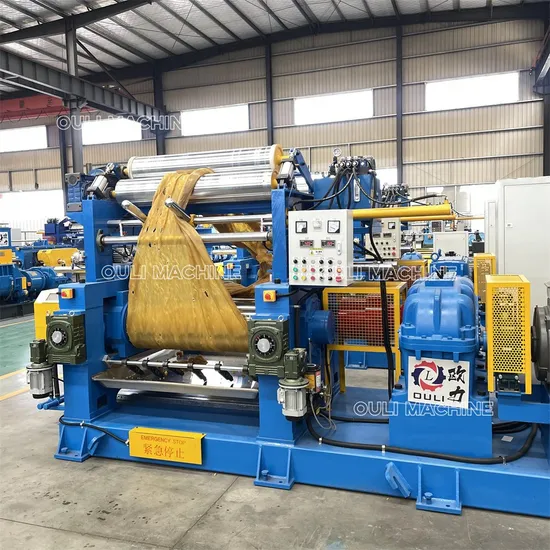

Sample Pictures of China professional manufacture of two roll rubber open mixing mill
Eight/8 steps of producing China professional manufacture of two roll rubber open mixing mill
No.1: Laser cutting what we need No.2: Welding parts
No.3: Flaw detection to ensure quality No.4: Annealing
No.5: Maching No.6: Assembling
No.7: Inspection No.8: Finished product




Related Products
Except Electrically adjust 2/two roll open mixingmill machine for Rubber Plasticizing and Mixing , we have
many other products related to rubber production.
Such as Rubber Kneader,Rubber Bale Cutter,Column Type Press Machine,Frame Type Press Machine,Foaming
Press , Batch-off Cooling Machine , Rubber Calender, Rubber Extruder, Tube Extruding Line,Tube Curing Press
Machine, Waste Tire Cutting Machine ,Rubber Crusher ,Tire Shredding Machine ,Rubber Powder Grinder ,
Reclaimed Rubber Refining Mill ......


About the Package and delivery
With professional equipments and workers , we will deliver your China professional manufacture of two roll rubber open mixing mill in time.

Company Introduction
Work Show & Company Certification

With more than 20 years experience in this field ,we have customers all around the world .
Our products have been exported to many countries ,such as America ,France ,Canada ,
Australis ,Sotheast Asia ......
With high quality and excellent service ,our products have won highly praise from customers .
So,we warmly welcome everyone come to our company ,and take a visit here.





Q1:Why choose us?

1.More than 20 years experience and more than 10 years foreign sales experience in this field,we have engineers
oversea and we can provide service more than 20 countries .
2.ISO:9001,CE,BV certification approval
3.Service timely, Promise to give solution within 12 hours,Guarantee customer trouble free.
4.Short delivery date, No delay. Accept urgent order for prompt shipment.

Q2:What about delivery date?

It will be according to the quantity of machines. Normally machines will be shipment within 20-30 days after
get deposit, No delay. Accept urgent order for prompt shipment.

Q3:What's the warranty statement?

OULI MACHINE warrants all the products manufactured by OULI MACHINE to free from defects in material and workmanship Under normal use of a period of 12 months or 36months after the date of the original purchase price if repair or replacement is not possible of practical, OULI MACHINE warranty covers ONLY the product itself.
OULI MACHINE will assume no liability for labor costs, installation costs, or other losses.
Your warranty rights will be honored
Only when the product has been installed and used properly as deemed by OULI MACHINE,OULIMACHINE will not repair products damaged by improper use or faulty installation.

Q4:What about OULI oversea service ?

OULI will arrange oversea setting up and training works if customer need .
Customer should pay for accommodation , tickets and salary .
Meanwhile OULI has branches in different areas like north America , Southeast Asia , Brazil etc , etc .

All above is the description of China professional manufacture of two roll rubber open mixing mill .
If you are interested in it ,please contact me and i do believe we can give you professional information and good quality product at nice price.
