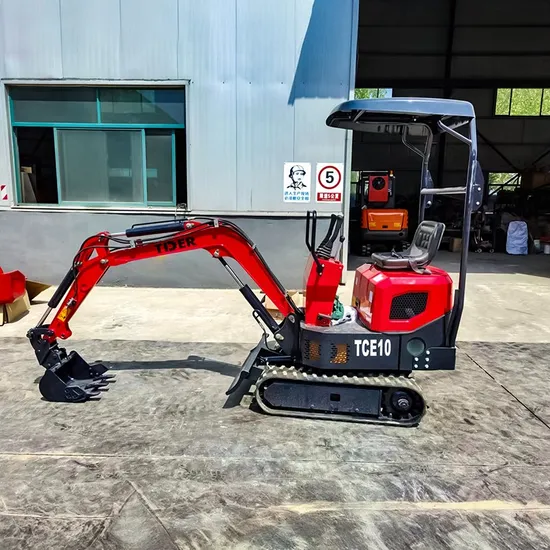

CE/ISO Crawler Tder China Mini Excavator Tce10, Tce18, Tce20, Tce25
| US$3,217.00-4,999.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
TCE10, TCE18, TCE20, TCE25
Type
Crawler Excavator
Usage
Mining Excavator
Bucket
Shovel
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
0.1~0.5m³
Size
Small-Scale
Certification
CE, ISO9001: 2000
Condition
New
Engine
Koop/Kubota
Attachment
Digger/Hammer/Bucket and Others
Certificate
CE/ISO
Digging Depth
1715mm
Digging Radius
3065mm
Digging Height
2600mm
Dumping Height
1830mm
Operation Weight
1 Ton
Dimension(L×w×h)
2840×880×2220mm
Transport Package
Nude
Specification
2560*900*1813mm
Trademark
TDER
Origin
China
HS Code
8429510000
Production Capacity
800sets/Year
Packaging & Delivery
Package Size
2500.00cm * 1500.00cm * 2500.00cm
Package Gross Weight
5000.000kg
Product Description
TDER garden or farm using mini Excavator 1 Ton Smallest Mini ExcavatorProduct specification--------1 Ton mini excavator
| Model | TCE10 | |
| Engine | ||
| Engine Model | KOOP KD192F-1 7kW/3000rpm EURO V Emission | |
| Type | Direct injection, wind cooled, natural intake | |
| No. of cylinder | 1 | |
| Main Performance | ||
| Swing Speed | r/min | 0-13 |
| Traveling Speed | km/H | 2 |
| Grade ability | % | 30° |
| Traveling Tracking Force | kN | 8.3 |
| Bucket Digging Force | kN | 7.2 |
| Arm Digging Force | kN | 4.6 |
| Hydraulic System | ||
| Hydraulic system working pressure | Mpa | 16 |
| Hydraulic Pump | Gear Pump | |
| Hydraulic pump flow | L/min | 18 |
| Fuel Tank Capacity | L | 26 |
| Hydraulic Tank Capacity | L | 14.5 in Hydraulic tank 21.5 in Hydraulic system |
| Overall Dimensions | ||
| Overall Length | mm | 2840 |
| Overall Width | mm | 880 |
| Overall Height | mm | 2200 |
| Counterweight Ground clearance | mm | 385 |
| Axle Base | mm | 900 |
| Track width | mm | 180 |
| Undercarriage width | mm | 840 |
| Undercarriage ground clearance | mm | 132 |
| Operation parameters | ||
| Operation Weight | KG | 950 |
| Bucket Capacity | m3 | 0.023 |
| Max. Digging Radius | mm | 3065 |
| Max. Digging Depth | mm | 1715 |
| Max. Digging Height | mm | 2600 |
| Max. Dumping Height | mm | 1830 |
| Tail Swing Radius | mm | 800 |
FAQ 1. Why choose us? As a manufacturer, Tider industrial is committed to offer not only products with high quality and performance and competitive price, but also in-time delivery and comprehensive 7/24 after-sale services. 2. What is the product range of our factory ? Tider industrial is a large-scale machinery manufacturing enterprise primarily specializes in supplying wheel loaders, forklift trucks and related attachments. We can also customize non-standard products according to customer's requirements. 3. What payment terms can we accept? Normally 30% deposit is required in advance, 70% balance shall be settled before shipment. And 100% irrevocable L/C at sight with the terms we agreed can also be accepted. 4. What Certificates do we have? All products meet with the ISO9001 Quality System and have acquired CE certificate. EPA approval will be available if needed. 5. How about our delivery time? Usually it will take 15 to 30 days after receiving your deposit. About standard products, we always have in stock and can deliver immediately. But customized products will take more time, depending on the requirements of your order. 6. Can we provide OEM service? Tider industrial can provide customized products according to customers' requirements, both OEM and ODM are acceptable.
