Reliable Quality and Universal Chocolate Conching Machine

Product Description

Product Parameters

Model	Capacity(L)	Motor Power(kW)	Heating(kW)	Overall Size(mm)	Weight(kg)
CM50	50	1.5	2	1000*650*1000	320
CM500	500	15	9	2000*1860*1250	2500
CM1000	1000	22	9	3000*1400*1800	3450
CM2000	2000	45	9	3100*2000*2180	5300
CM3000	3000	55	9	3700*1900*1500	7000

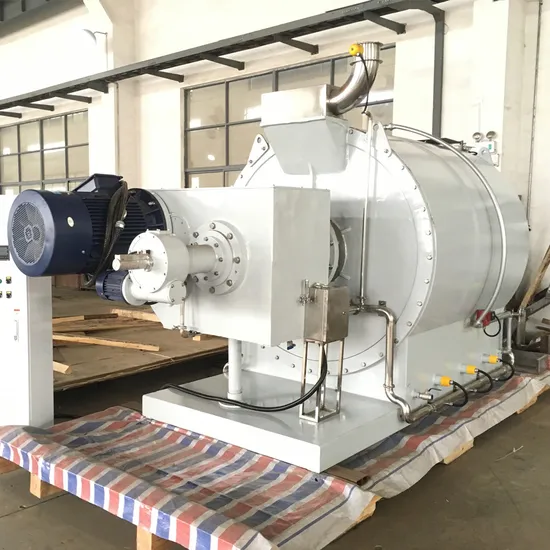

Chocolate Process Machine Chocolate Refiner Conche
Chocolate Refiner Conche is an all-in-one unit for chocolate mass which is easy to install, start and operate. It works by means of rotating blades that provide pressure against lining bars on inner wall of the milling cylinder. With the design of helical gear gearbox which enables maximum energy transfer with minimum consumption. Double jacketed milling cylinder with build in heater and circulation pump ensure an even distribution of operating temperatures.
Chocolate Conche Features
20L-3000L available Push Button Control/PLC Control Loading Unit Build in heater and water circulation pump Solenoid valve control cooling water automatically Push button motor for easy Pressure adjusting Optional Auto weighing system Discharge pump Jacketed Piping System Conching Fan
Except for Chocolate Refiner Conche, we also provide
Chocolate Fat MelterChocolate Tank Chocolate Ball Mill Chocolate Refiner Chocolate Belt Coater Chocolate Moulding Line Chocolate Chips & Drops Depositing Line
Lab Conche 500L Chocolate Conche 1000L Chocolate Conche
2000L Chocolate Conche 3000L Chocolate Conche 3000L Chocolate Conche with Double Shear

Vibration Feeding Hopper Magnetic Filter Milling Tank Cover with SUS Plate for Easy Cleaning
Scraper & Lining Bar Treatment

All Scrapers and Lining bars are made of 65 Mangenese Steel with heat treatmentto allow more than 5 years milling life.

Sandblast Treatment avoids gear oil pollution and saves cleaning time before use.
Two Scraper Frames for Conche above 2000L for strength purpose
Scraper Shaft Supported by Front Cover of Conche over 2000L to avoid shaft bend
Scraper Lock
Scrapers locked with handle by anti-loose screws for low change costs
Indonesia Customer Factory USA Customer Factory Canada Customer Factory
Universal System
By Connection with Ball Mill and Chocolate Tanks, The production process can be reach continously 200-500kg/h.
Detail display
Company Profile
Packaging logistics
FAQ
Q: How to make chocolate?
A: For small capacity, you can make chocolate manually, we have some small machines like chocolate tank,
tempering machine and cooling tunnel may assists you. But most of our chocolate machines are designed for industrial purpose.
Q:What's the price of your machine? A: Price will be different depends on different production capacity. Please chat with our sales
engineer to confirm the exact machine for accurate quotation.
Q: What's the standard line cost? A: Chocolate making line is customized according to the final chocolate products. We will give solutions according to detailed requirements.
Q: What is yourterms of payment ? A: 30% by T/T in advance, the balance before delivery.
Q: What is chocolate depositing machine ?
A: A chocolate depositor machine is a special type of equipment that you can use in pouring and forming chocolates. Some people may call
chocolate chips & drops making machine as chocolate depositing machine. In some other cultures, they call chocolate moulding line
as chocolate depositing machine.
Q: What is chocolate making machine ?
A: Chocolate making machine is for cocoa powder to different chocolate final products in markets.
Q: What is chocolate tempering machine ?
A: A chocolate tempering machine is a device for melting, de-crystalizing and crystalizing your chocolate to result in a hard and shiny finished product. Un-tempered couverture chocolate has a dull finish and melts easily.
Q: How to make hot chocolate?
A: We have machine to make chocolate ballfilled with marshmallow, which will be hot chocolate when meet hot water in the cup.
