Straight Knife Sharpening Sharpener Saw Blade Grinding Grinder

Product Description

Product Parameters
Straight Saw Blade Sharpener Knife Grinder For Wood Chipper

Grinding Width	180mm
Grinding Length	1600mm
Grinding Wheel Size	200*110*32mm
Motor Power	4kw+0.75kw
Weight	320KG

Blade Grinding Machine Straight Knife Grinder Sharpener

Max Processing Blade Length	710mm
Grinding Wheel Speed	2800R/Min
Grinding Wheel Motor	550W
Water Pump Motor	15W
Overall Size	900*300*780mm
Weight	70kg

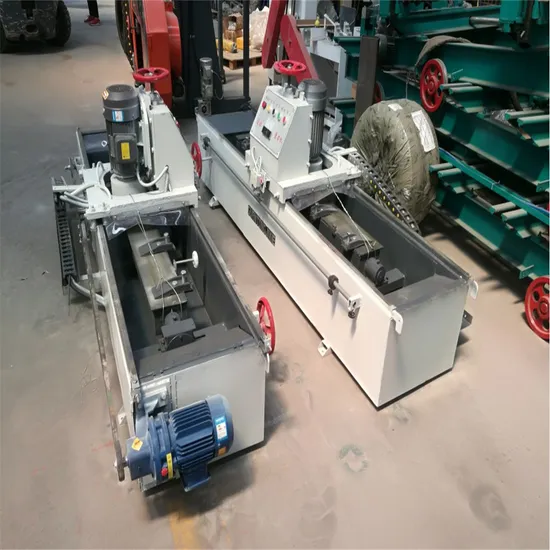

High Precision Electromagnetic Straight Knife Grinder
bed using double 8-6mm plate integrated welding, the height of the fuselage 85 cm, the guide base is thickened, the use of domestic 30 linear square rail, with dust and waterproof cover; The grinding head and the sliding table are of new welded structure.
The screw in the grinding head box is customized ball screw.
The sliding table is driven by rack and pinion, with frequency conversion speed regulation, and the grinding times can be set to stop; and the grinding wheel has the function of quick lifting and automatic mechanical cutting. Split cooling water tank with magnetic baffle to absorb dirty slag, the new structure is easy to clean; The working table is a new S-type strengthened electromagnetic chuck, copper coil; Independent electric control cabinet, dual panel control

Working table area: length×width(mm)	1600×180
Vertical speed of a grinding(m/min)	Frequency Converting Control 0-20m/min
Power of the machine tool(kw)	7kw( Grinding Head5.5kw)
Return angle of the grinding table	±90°
Return angle of the grinding head	±30°
Mill finish	≤0.03mm/m
Net weight(kg)	1500
length×width×height(mm)	3400×1000×1450

Automatic Carbide Circular Saw Blade Sharpener

Saw Blade Diameter	125-800MM
Feeding Speed	0-24 Teeth /Minute
Grinding Wheel	150MM
Grinding Wheel Motor	370W

Bi Metal Band Saw Blade Sharpener

Model	1111
Band Saw Blade Width MM	30-80
Grinding Wheel Diameter MM	150
Band Saw Blade Pitch MM	8-20
Working Frequency Tooth/Min	50

Automatic Band Saw Blade Sharpener
Mainly used to polish and process the tooth flank,tooth back,and the tooth throat of the jugged saw blade.It's size is small and easy to adjust and simple structure.

Model	1118
Band Saw Blade Width MM	30-150
Grinding Wheel Diameter MM	250
Band Saw Blade Pitch MM	10-40
Working Frequency Tooth/Min	50
Overall Size MM	900*750*700
Packing Size MM	1000*850*800
Net/Gross Weight (kg)	200/230

Automatic Carbide Band Saw Blade Sharpener

Model	150
Grinding Blade Width	30-150MM
Grinding Blade Thickness	0.5-1.3MM
Cooling Model	Water
Motor	0.55 kw
Voltage	380V

Company Profile
Specialize in research & development, production, sales of sawmills and the relevant fittings SINCE 1988
We have serves 11,000 enterprises and our products have been exported to over 60 countries in the world.
Our wood cutting blade Sharpener including:
Circular Blade Knife Sharpener
Band Saw Blade Knife Sharpener
Straight Knife Blade Sharpener
Chain Saw Blade Knife Sharpener
Sawmill & Kilns & Pallet & Biomass & Forestry & Recycling
Sincerely welcome worldwide distributors to join us!
