Woodworking Wood Working Edge Bander Automat PVC MDF Straight Edge Banding Machine with Pre-Milling Contour Roundingtracking and Slotting

Product Description

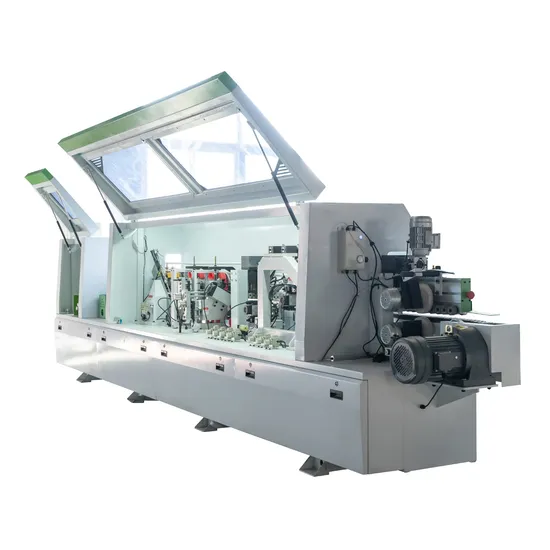

GD-368 AUTOMATIC EDGE BANDING MACHINE
Function: Glue, press,cutting head,rough trimming, fine trimming,scraping, polishing

GD-468 AUTOMATIC EDGE BANDING MACHINE
Function: Pre-milling,Glue,press,cutting head,rough trimming, fine trimming,scraping, polishing

GD-568 AUTOMATIC EDGE BANDING MACHINE
Function:Glue, press,cutting head ,rough trimming, fine trimming, Corner Rounding, scraping, polishing

GD-768 AUTOMATIC EDGE BANDING MACHINE
Function: Pre-milling,Glue, press,cutting head ,rough trimming, fine trimming, Corner Rounding, scraping, polishing

Model	GD-768
Panel Feed Speed(m/min)	13m/min
Edge Thickness	0.4-3mm
Edge Width	15-55mm
Edge banding height	12-60mm
Panel thickness	8-30mm
Mini work Panel Width	> 80mm
Mini work Panel Length	>120 Mm
Heating power of plastic box	1.5kw
Plate preheating power	0.3KW
End cutting motor power	0.55kw * 2 1200r / min200HZ
Transmission motor power	2.2KW
Polishing motor power	0.2kw*2 1400r / min 300Hz
Fine trimming motor power	0.75kw*2 1800r / min 300Hz
Total power	10kw
Air pressure	0.9MPA
Machine weight	1500KG
Machine size	7200*1000*1800mm

Pre milling
There are two counter rotating shape cutters and control by independent air cylinders, allow milling front edge and back edge without tear out. Ensure right angled and chip free work piece edges.
PLC Control system touch screen
Intelligent operation panel, simple operation, with fault detection.

Pressing and gluing

The steel pressing wheel will press the edge band and the plate tightly to make the adhesion more firm, and there is no glue mark on the plate surface.
Front and end cutting
It is composed of front end trimming and back end trimming. It is controlled by Taiwan AirTac solenoid valve. It has a unique protection function of end trimming and plate bumping. It is cut off by a special saw blade to enhance the stability of end trimming.

Rough &Fine trimming
The roughing tool is a 15 ° flat tool with 40-50 thread allowance for finishing. The automatic tracking by film and high-frequency high-speed motor are used to realize fast cutting.
Corner Rounding

Can shaped the panel then looks more beautiful. The function is a necessary step for cabinet door
Scraping Used to scrape the extra glue, to make the edges more smoother. It is equipped with dust collector pips. Upper and lower radius scraper for the processing of 2 mm plastic edge material.

Buffing & Cleaning
The cleaning can clean the extra glues again. And 4 cloth wheels to polish the dust of the edging, to make it more clean and more beauty. Upper and lower buffing unit ensures a perfect finish on the edge radius and removes any color irregularities.

The automatic linear edge banding machine is suitable for such plates: MDF, block board, solid wood board, particleboard, polymer door plates, plywood etc.
Shandong Guandiao CNC Equipment Co., Ltd is an innovative enterprise engaged in research and development,production, sales and good after- sales service. The company's main products include Panel furniture CNC cutting machine, Woodworking CNC Machining Center, CNC router , Multi-head cylinder CNC engraving machine, Styrofoam CNC router, 3D scanner, Vacuum membrane press machine, Vacuum forming machine, Laser engraving and cutting machine, etc. Products applied to the panel furniture, European furniture, solid wood furniture, advertising, stone, building decoration, handicrafts, mold making, staircases column, PCB printing, automotive industry, packaging industry, shipbuilding, wood manufacturing, watches and clocks, accessories, seals and other industries.After nearly 10 years of development, the company has a perfect technical team, clear labor division, ensuring the high quality products sent to the whole country, to the world.
1. Delivery and Lead time:
Machine will be proper packed and loaded in container, as multiple loaded to save space or wooden carton sealed for better transportation.
2.Warranty:
Machine warranty is 12 months. Machine as normal using and maintenance condition, if get any problem, will provide spare parts for free. Out of warranty, will collect the accessories cost. Technical support for maintenance or fix on time and all the time.
3. Technical support:
Manual and video illustration of the machine will be provided 24 hours online by Ali Trademanager, Skype, Email, QQ, or telephone24 hours online by Ali Trademanager, Skype, Email, QQ, or telephone Technical support by email, whatsapp, wechat,imo and skype available on time.
4.After sale service:
Normally the machine will sent on whole except the machine is over size to load container. so the machine arrange in production immediately after get electricity (air and water some model needed).

5.We accept the ODM,OEM If you have other needs, please let me know
