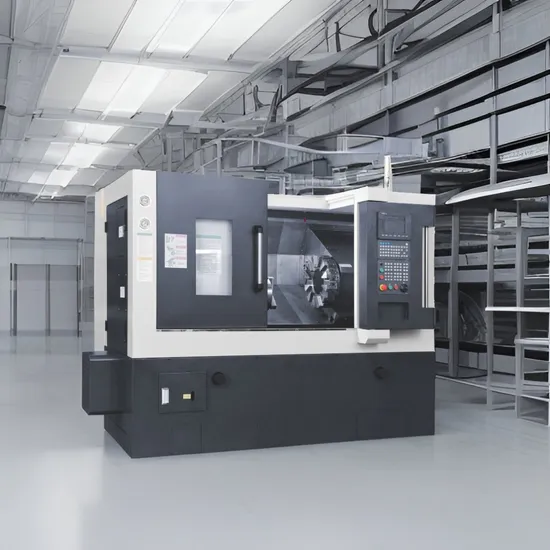

China Innovative Tool Turret Slant Bed CNC Lathe with Tailstock Attachment (BL-H50T)
| US$34,000.00-51,000.00 | 1 SET (MOQ) |
Basic Info.
Model NO.
BL-H50T/TC/TY
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Inclined Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE
Condition
New
Chuck Size
8′′/10′′/12′′
Max. Swing Dia. Over Bed
560mm
Max. Turning Length
470mm
Spindle Bore
66/86mm
Spindle End Type
A2-6/A2-8
Spindle Speed
4000/3500rpm
Spindle Motor Power
11/15kw
Tool Turret Type
12t
Transport Package
Wooden Case
Specification
560*480mm
Trademark
BLIN
Origin
China
HS Code
8461500090
Production Capacity
480 Units/Year
Packaging & Delivery
Package Size
250.00cm * 320.00cm * 250.00cm
Package Gross Weight
250.000kg
Product Description
- Adopt TAIWAN technology, designed by TAIWAN engineer, most parts adopt GERMANY/JAPAN/TAIWAN brand
- Adopt 30°integral slant bed design
- X,Z axes adopt 45mm big width linear guideway,super high rigidity
- Adopt modularization design, easy for various especial configuration choice, such as tool setter etc
- Adopt MEEHANITE class cast iron, after aging treatment, small distortion, good torsional strength, good heat stability
- Base adopt multilayer strengthening rib, ensure bed's strength and stability
- Adopt high precision integral spindle unit, spindle motor adopt high performance servo motor, big output torque,high speed,wide adjustment range
- Spindle adopt double line ROLLER type bearing, high rigidity, suitable for heavy cutting
- Adopt high precision C3 class pre-stretched ball screw(double nuts), coupled with feeding motor directly by linkager, no gap,high transmission rigidity
- H50T mount 12T hydraulic-servo tool turret
- H50TC mount C axes and 12T Powered tool turret
- H50TY mount C axes and 12T Powered tool turret with 90°Y axes
Details:
| Item | Specification | Unit | BL-H50T | BL-H50TC | BL-H50TY | ||||
| Capacity | Chuck size | / | 8''(10''*,12''*) | ||||||
| Max. swing dia. over bed | mm | Φ560 | |||||||
| Max. swing dia. over saddle | mm | Φ300 | |||||||
| Max. turning length | mm | 485(8'' chuck); 475(10'' chuck*); 440(12'' chuck*) | 355(8'' chuck); | 450(8'' chuck) | |||||
| Max. turning dia. | mm | Φ400 | Φ290 | Φ330 | |||||
| Standard turning dia. | mm | Φ200(8'' chuck); Φ250(10'' chuck*); Φ300(12'' chuck*) | Φ200(8'' chuck) | Φ200(8'' chuck) | |||||
| Spindle | Spindle bore | mm | Φ66(Φ86*) | ||||||
| Spindle end type | / | A2-6(A2-8*) | |||||||
| Spindle speed | rpm | 4000(3500*) | |||||||
| Max. bar through dia. | mm | 51(74*) | |||||||
| Spindle motor power | kw | 11(15*) | |||||||
| X/Z axes | X/Y/Z axes linear guideway type | / | BALL type | ||||||
| X/Y/Z axes linear guideway width | mm | 45/30/45 | |||||||
| X/Y/Z axes ball screw O.D. | mm | Φ32/Φ32/Φ40 | |||||||
| X/Y/Z axes ball screw pitch | mm | 10 | |||||||
| X axes travel | mm | 230 | 250 | 220 | |||||
| Y axes travel | mm | / | / | 90 | |||||
| Z axes travel | mm | 610 | 500 | 500 | |||||
| X/Z axes rapid moving speed | m/min | 24/24 | |||||||
| Y axes rapid moving speed | m/min | / | / | 8 | |||||
| Tool turret | Tool turret type | / | 12T Hydraulic-servo tool turret | 12T BMT55 Powered tool turret | 12T BMT55 Powered tool turret with Y axes | ||||
| Toolshank size | mm | 25×25, Φ40 | 25×25, Φ32(ER32) | 25×25, Φ32(ER32) | |||||
| Tailstock | Tailstock quill taper | / | MT4# | ||||||
| Tailstock quill dia./travel | mm | Φ80/80 | |||||||
| Accuracy | Positioning accuracy(X/Z) | mm | 0.008/1000 | ||||||
| Repeat positioning accuracy(X/Z) | mm | ≤0.005 | |||||||
| Others | Overall size | mm | 2600×1800×1900 | ||||||
| N.W. | kg | 4000 | 4100 | 4200 | |||||
*As option
Main parts list:
| Item | Brand |
| Spindle unit | TAIWAN-ROYAL |
| Tool turret | GERMANY-SAUTER/TAIWAN-YULIN/SWIFT |
| Ball screw | JAPAN-THK |
| Ball screw bearing | JAPAN-NSK |
| Linear guideway | JAPAN-THK |
| Lubrication system | TAIWAN-ISHAN |
| Rotary oil cylinder&chuck | TAIWAN-AUTOGRIP |
| Hydraulic parts | TAIWAN/JAPAN |
| Heat exchanger | Joint-venture |
| Main electricity parts | FRANCE-SCHNEIDER |
Standard configuration:
-SIEMENS 808D ADVANCED CNC controller
-Hydraulic chuck
-Hydraulic tool turret
-Hydraulic tailstock
Optional configuration:
-SYNTEC/SIEMENS 828D/FANUC 0i TF CNC controller
-C axes& powered tool turret
-Y axes
-Automatic chip conveyor
-Tool setting probe
Other models choice:
