Product Description

Product Description

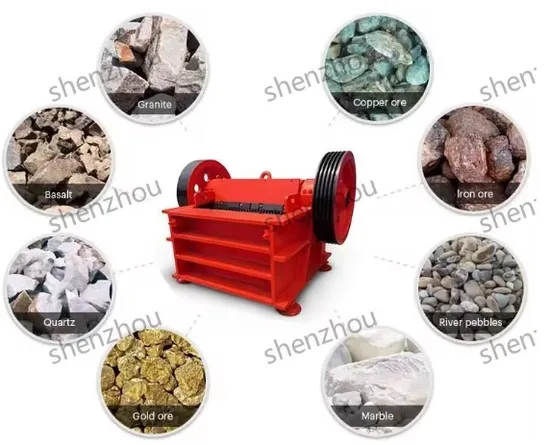

Jaw crusher is suitable for crushing a variety of soft and hard ores and rocks, whose largest compression resistance is under 320 MPa. Maximum size of to be fed materials must be less than what is required according to the maximum specification of technical parameters. Jaw crusher is mainly used for secondary and fine crushing of mid hardness ores and rocks in metallurgical industry, mining, chemistry, cement making industry, construction, refractory, pottery, porcelain industry, etc. All models of stone jaw crushers are available according to your different fineness requirements.

The working principle of the jaw crushers is very simple. Powered by a diesel or gas motor, the jaw crusher brakes materials in a crushing chamber. The materials are pushed inside the chamber from the top opening and when crushed they are released through the bottom opening.
detail image
1. Deep crushing cavity, no dead zone, increasing capacity and output of the feeding
2. Large crushing ratio, uniform products particle size
3. Pad-style nesting population adjustment devices, and ease of adjustment range
4. Simple and reliable structure, low operation costs
5. The discharging size of jaw crusher can be adjusted to meet the requirements of different users
6. Low noise and less dust
7. Be and drive by diesel engine if the working site is limited
Benefits Features 1.Longer jaw plates,higher output
2.Fast discharge opening adjustment device
3.Larger bearings and stronger carrying capacity
4.Bearing seat with integral cast steel structure
5.More advancedmovable jaw assembly and durable
6.High intensity with finite element analysis technology
7.World-level manufacturing technology and highest-level material

Model	Feeder Opening Size(mm)	Export Clearance(mm)	Discharge port size (mm)/Capacity(t/h)												Power(kw)
			70	80	90	100	125	150	175	200	225	250	275	250
PEW100	1000×630	600	90-160	120-180	130-190	150-200	160-210	180-230							75
PEW110	1100×850	720	180-240	200-265	220-295	245-320	300-385	350-455	400-520	460-590					110
PEW125	1250×950	810				270-360	325-430	385-505	445-580	500-650	560-725	620-800			160
PEW140	1400×1070	910					360-470	425-555	490-640	555-725	625-815	690-900	725-985		200
PEW160	1600×1200	1020						490-640	560-730	635-825	710-920	780-1010	855-1105	930-1200	250
PEW210	2100×1600	1360							800-880	900-1005	1000-1125	1100-1225	1200-1375	1300-1500	450
