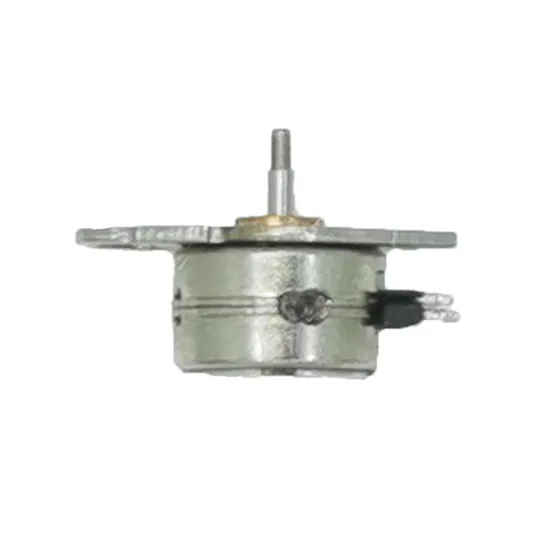

6mm 3.3V DC Micro Stepper Mini Stepping Motor
| US$2.20-11.20 | 10 Pieces (MOQ) |
Basic Info.
Model NO.
07-005-011
Number of Stator
Two-Phase
Excitation Mode
2-2 Phase Exciting
Function
Driving
Number of Poles
2
Operate Mode
Bi-Polar Drive
Type
Linear
Certification
ISO9001
Brand
Ccht
Transport Package
Carton
Specification
Φ 6mm
Trademark
CCHT
Origin
Sichuan
HS Code
8501109990
Production Capacity
20000/Month
Product Description
| Technical Parameter of Micro Stepper Motor | ||||||||||||
| No. | Model No. | OD (mm) | Step Angle (°) | Existation Method | Drive Mode | Voltage (V DC) | Current /Phase (mA) | Resistance /Phase (Ω) | Output Torque (gf.cm) | Insolution resistance (Ω) | Noise (dB) | Working environment temperature(ºC) |
| 1 | 01-005-001 | Φ8 | 18 | 2-2 Phase Exciting | BI-Polar Drive | 5.0 | / | 30 | 100.00 | 100V AC, 1S | ≤50 | -40~+80 |
| 2 | 07-005-001 | Φ6 | 18 | 2-2 Phase Exciting | BI-Polar Drive | 3.3 | 300 | 40 | 20.00 | 100V AC, 1S | ≤50 | -20~+80 |
| 3 | 07-005-002 | Φ6 | 18 | 2-2 Phase Exciting | BI-Polar Drive | 3.3 | 165 | 20 | / | 100V AC, 1S | ≤50 | -20~+80 |
| 4 | 07-005-011 | Φ6 | 18 | 2-2 Phase Exciting | BI-Polar Drive | 3.3 | 110 | 30 | 0.06 | 100V AC, 1S | ≤50 | -20~+80 |
| 5 | 07-005-016 | Φ6 | 18 | 2-2 Phase Exciting | BI-Polar Drive | 3.3 | 300 | 14 | 0.20 | 100V AC, 1S | ≤50 | -20~+80 |
| 6 | 07-005-027 | Φ8 | 18 | 2-2 Phase Exciting | BI-Polar Drive | 3.3 | 160 | 20 | 80.00 | 100V AC, 1S | ≤50 | -20~+80 |
| 7 | 07-005-031 | Φ8 | 18 | 2-2 Phase Exciting | BI-Polar Drive | 3.3 | 250 | 20 | 0.15 | 300V AC, 1S | ≤50 | -20~+80 |
| 8 | 07-005-032 | Φ8 | 18 | 2-2 Phase Exciting | BI-Polar Drive | 3.3 | 165 | 20 | 1.50 | 100V AC, 1S | ≤50 | -20~+80 |
| 9 | 07-005-033 | Φ8 | 18 | 2-2 Phase Exciting | BI-Polar Drive | 3.3 | 160 | 20 | 0.25 | 100V AC, 1S | ≤50 | -20~+80 |
| 10 | 07-005-034 | Φ8 | 18 | 2-2 Phase Exciting | BI-Polar Drive | 5.0 | 100 | 50 | 0.23 | 100V AC, 1S | ≤50 | -20~+80 |
| 11 | 07-005-036 | Φ8 | 18 | 2-2 Phase Exciting | BI-Polar Drive | 5.0 | 450 | 14 | 0.60 | 300V AC, 1S | ≤50 | -20~+80 |
| 12 | 07-005-041 | Φ10 | 18 | 2-2 Phase Exciting | BI-Polar Drive | 5.0 | 90 | 55 | 0.30 | 300V AC, 1S | ≤50 | -20~+80 |
| 13 | 07-005-042 | Φ10 | 18 | 2-2 Phase Exciting | BI-Polar Drive | 5.0 | 90 | 55 | 0.30 | 300V AC, 1S | ≤50 | -20~+80 |
| 14 | 07-005-043 | Φ10 | 18 | 2-2 Phase Exciting | BI-Polar Drive | 5.0 | 160 | 31 | 5.00 | 100V AC, 1S | ≤50 | -20~+80 |
| 15 | 07-005-044 | Φ10 | 0.36 | 2-2 Phase Exciting | BI-Polar Drive | 5.0 | 160 | 31 | 7.00 | 100V AC, 1S | ≤50 | -20~+80 |
| 16 | 07-005-060 | Φ15 | 18 | 2-2 Phase Exciting | BI-Polar Drive | 12.0 | 400 | 31 | 180.00 | 100V AC, 1S | ≤50 | -20~+80 |
| 17 | 07-005-061 | Φ15 | 18 | 2-2 Phase Exciting | BI-Polar Drive | 6.0 | 300 | 15 | 200.00 | 100V AC, 1S | ≤50 | -20~+80 |
| 18 | 07-005-062 | Φ15 | 18 | 2-2 Phase Exciting | BI-Polar Drive | 6.0 | 300 | 15 | 200.00 | 100V AC, 1S | ≤50 | -20~+80 |
| 19 | 07-005-079 | Φ15 | 18 | 2-2 Phase Exciting | BI-Polar Drive | 12.0 | 760 | 31 | 720.00 | 100V AC, 1S | ≤50 | -20~+80 |
| 20 | 07-005-081 | Φ20 | 18 | 2-2 Phase Exciting | BI-Polar Drive | 12.0 | 300 | 40 | 30.00 | 100V AC, 1S | ≤50 | -20~+80 |
