CNC Drilling Machine, Milling Machine, CNC Processing Center for Aluminum Drilling and Milling

Product Description

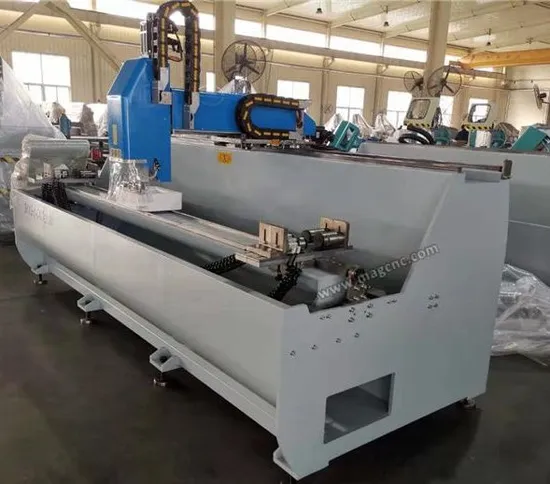

SKX3+1-CNC-3000 CNC Drilling Milling Machine
Product Description

1).This machine is designed for processing round holes, slots, keyhole etc on aluminum profile, window-door and curtain wall industry, it is also suitable for processing milling, chamfering,engraving plane surface and other procedure
2). Main spindle adopt air-cooling electric main axis, 3KW power, 0~18000/min , have the function of high precision, high safety and high reliable.
3). Adopt Taiwan SYNTEC CNC control system. Have professional CAD-CAM programming software. It can transform processing G code automatically, have the function of easy operation, high efficiency and lower labor intensity.
4).Imported guide rail, sliding block, X axis adopt high precision oblique gear and rack driving. Y and Z axis adopts high precision ball screw drive. The drive is stable, so can improve the precision of whole machine.
5). The worktable can overturn 180°.-90°~0°~+90°,Clamping one time profile can realize three faces processing, When processing deeply hole (hetero type hole ), it can realize deeply hole processing through overturn worktable, so can highly improve processing efficiency.
6). Adopt manual pump oil supply system, blades adopt system control spray cooling device.
7). The main electrical parts: circuit breakers, AC contactor are all SCHNEIDER brand.
8). The main components adopt steel structure and they are all through aging treatment. Product Parameters

Brand Name	MAG
Model	SKX3+1-CNC-3000
Power Supply	380V 50Hz or customers specifications
Cutting motor power	6kw
Operation air pressure	0.5~0.8MPa
Max Motor rotary speed	18000r/min
X axis journey	3000mm
Y axis journey	500mm
Z axis journey	350mm
X axis speed	50000mm/min
Overall dimension	4180*1600*2200
Weight	1400kg

Detailed Photos

5. Pneumatic Clamplings, Hiwin guide, Japan ball screw and screw rack.
Testing sample

Packaging & Shipping

Certifications

Company Profile
Jinan Mag Group Co., Ltd. is one professional window solution supplier in Shandong province, China. Our products cover CNC processing machine, Aluminum window making equipment, insulating glass machine, Upvc window machine, curtain wall processing equipment, insulating glass and related insulating glass materials, etc.
With the progress of internationalization and globalization, we have 5 subsidiaries, 4 major production bases and Mingmei CNC, Hengdi brand names. At present, our products have been sold to more than 50 countries and regions. Relying on the sales centers of various countries, we also established service centers to provide customers with products and services efficiently.
Technology innovation is the vitality of an enterprise. We always keep continual innovation and development, following global scientific research results. Mag Group embraces a R&D institute with over 20 scientific researchers and scientific research platforms equipped with advanced devices.
We achievements are successfully awarded the access to National Torch Plan projects, National Key New Product, Scientific Achievements Promotion Projects in National Construction Industry, Scientific Achievements Promotion Projects by Ministry of Construction and Government Green Procurement List.
Also, we has been awarded many honorary titles, such as National Hi-Tech Enterprise, Leading China Enterprise with Independent Innovation in Construction Technology, Shandong Provincial Government Quality Award, Leading Enterprise in Intellectual Property.
After several years' development, we have achieved great progress, Our R&D department provide the strong technical support and enable us to receive some O E M, O D M projects.
At present, we have more than 300 kinds of products, is the domestic building equipment domain product system complete manufacturer.
In the future, we will continue to uphold the "making building more energy-saving and make life getting better " brand of faith, with new attitude, to provide customers with more cost-effective products and services, to create the bright, comfortable, high-quality window and doors productions.
