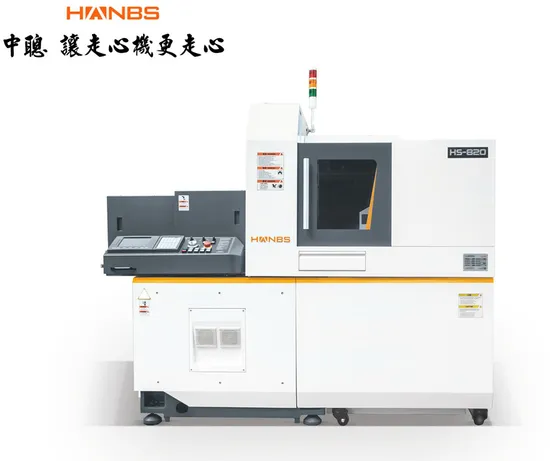

HS-820 The Five-Axis Machining CNC Centering Machine

Product Description

Hs-820 the Five-Axis Machining CNC Centering Machine
Product Description
1. High-precision processing:
The CNC technology and precise mechanical structure adopted by CNC centering machines can achieve high-precision processing.
2. Flexibility and programmability:
CNC machining machines have a high degree of flexibility and programmability, and can be quickly adjusted and transformed according to different processing needs.
3. High production efficiency:
CNC centering machines have high-speed processing capabilities and automated production features, and can achieve efficient production.
4.Wide processing range:
CNC machining machines are suitable for processing various materials, including metals, plastics, wood, etc., and are widely used in aviation, shipbuilding, automobiles, electronics, medical equipment and other fields. 5.Save materials and energy:
CNC centering machines adopt precise processing methods, which can greatly reduce material waste and improve material utilization.
Product detail
Optional function
Product Information

	Project
Processin Processing referencesg references	Max machining diameter	Φ20mm
	Max machining length	190mm
	Processin Processing referencesg referencesAxial maximum drilling diameter	Φ10mm
	Maximum axial tapping size	M8
	Maximum spindle speed	10000rpm
	Radial maximum drilling diameter	Φ7mm
	Maximum radial tapping size	M6
	Maximum speed of radial power head	ER11:10000/ER16:8000
	Rated speed of radial power head	ER11:8000/ER16:6000
	Maximum extraction length of workpiece	100mm
Tool size	Number of knifes installation	6
	Tool (turning tool)	12X12
	Sleeve	Φ25.0 X 4
Collet guide sleeve	Spindle spring collet	TSUGAMI B0265CCR
	Power head collet	ER11,ER16
	Guide sleeve	TSUGAMI BS-20#-B
Feed rate	Z1/Z2/X2/Y Z1/Z2/X2/Y-axis feed speed	30m/min
	X1	24m/min
electrical machinery	Spindle drive power	2.5/3.7KW
	Power head drive power	1KW
	For cutting fluid	0.4KW
	For spindle cooling	0.075KW
	For lubricating oil	0.01KW
Others	Spindle center height	1060mm
	Barometric flow rate	0.7mpa 0.5m³/min
	Main circuit breaker capacity	40A
	Input power	9.6KW
	Weight	2.6
	Overall size	2250X1200X2000mm

Factory
Customer photoes
Packing & shipping
Examples of processed products Certifications
Q&A
1.Are you manufacturer or trading company? A. We are professional machine tool manufacturer, we set export sales center & showroom in Dongguan city. 2. How can I place order? A: You can contact us by email about your order details, or place order online. Thank you! 3. How about your price? A. We have different series, covered high, middle, economical class with super high performance-price ratio. You may check with us for most suitable solutions. 4.What are the main machine of your company? A. We have CNC lathe, intelligent CNC lathes, double-spindle double-turret turning and milling machines . 5.How can I choose a machine? A.For the model selection,you can send us a drawing and our technicians will help you evaluate for proofing. 6.What is the minimum order quantity? A. 1 Unit machine also be available,We will offer you a better price if you order more. 7.How many days is the delivery guaranteed, the delivery deadline? A. In common condition , lead time about 30- 45 work days. 8.What are the application areas or uses of this product?
A. Widely used in the metal processing industry, the precision machining industry, the Medical equipment manufacturing industry and fastener industry.
9.What are the trade and payment terms?
A.FOB, CFR, and EXW are all acceptable. T/T,100% payment when order; L/C and D/P.
10.Where is our factory? How do I get to visit?
We are lacated in China Guangdong,Dalang,Dongguan.You are warmly welcome to visit our factory.
