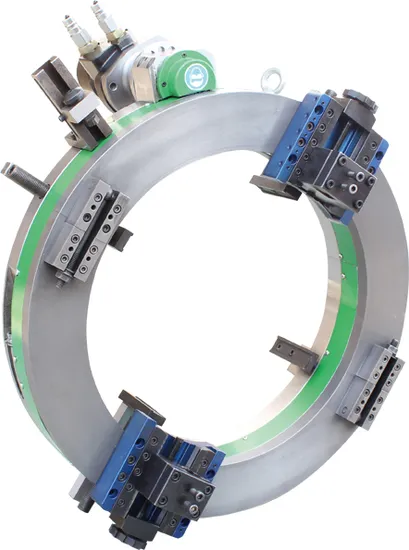

426mm Split Frame No Sparkle Pipe Cutter Beveler for Metal

Product Description

Product Description
This machine is an external clamp pipe cold cutting and beveling machine. It can open in two halves and be installed on the pipe spindle for processing. It is suitable for pipe cutting, beveling, boring inner holes, flange end face processing, and outer circle processing, etc. The processing bevel angle can be selected at will, and the tool holder can move automatically.
This kind of machine is ideal for all types of pipe cutting, beveling, and end preparation. The split frame design allows the machine to split in half at the frame and mount around the OD of the in-line pipe or fittings for strong, stable clamping. It can be used for vertical, horizontal, and in-wall pipes. The machine performs precision in-line cut or simultaneous cut and bevel, cut or bevel, counterbore, and flange facing operations as well as end preparation on the open-ended pipe.
Product Parameters

Model	Working Range		Wall Thickness		Rotation Speed
	(Outside Diameter)		Standard	Heavy-duty
89	1"-3"	25-89mm	≤30mm	-	42r/min
168	2"-6"	50-168mm	≤30mm	-	18r/min
230	3"-8"	80-230mm	≤30mm	-	15r/min
275	5"-10"	125-275mm	≤30mm	-	14r/min
305	6"-10"	150-305mm	≤30mm	≤110mm	13r/min
325	6"-12"	168-325mm	≤30mm	≤110mm
377	8"-14"	219-377mm	≤30mm	≤110mm	12r/min
426	10"-16"	273-426mm	≤30mm	≤110mm
457	12"-18"	300-457mm	≤30mm	≤110mm
508	14"-20"	355-508mm	≤30mm	≤110mm
560	16"-22"	400-560mm	≤30mm	≤110mm
610	18"-24"	457-610mm	≤30mm	≤110mm	11r/min
630	20"-24"	480-630mm	≤30mm	≤110mm
660	20"-26"	508-660mm	≤30mm	≤110mm
715	22"-28"	560-715mm	≤30mm	≤110mm
762	24"-30"	600-762mm	≤30mm	≤110mm
830	26"-32"	660-830mm	≤30mm	≤110mm	10r/min
914	30"-36"	762-914mm	≤30mm	≤110mm
1066	36"-42"	914-1066mm	≤30mm	≤110mm
1230	42"-48"	1066-1230mm	≤30mm	≤110mm
1430	48"-56"	1230-1430mm	≤30mm	≤110mm	8r/min

Note:We can produce customized machines.
