Comfortable Environment Temperature and Humidity Sensor Air Quality CO2 Monitor

Product Description

YEM-42H CO2 Concentration, Temperature and Humidity Monitor Specifications

Model	YEM-42	YEM-42S	YEM-42H
Measure Parameters	Temperature, Relative Humidity, CO2 concentration
Unit	Temperature: ºC; Humidity: %; CO2 concentration: ppm
Measurement Range	Temperature: -20~ 60ºC
	Humidity: 0~100%
	CO2 concentration: 400 ~ 10,000 ppm
Measurement Accuracy	CO2 concentration:	CO2 concentration:	CO2 concentration:
	±3%±100ppm	±3%±60ppm	±3%±40ppm
	(400~2000ppm,0~50ºC)	(400~2000ppm,0~50ºC)	(400~2000ppm,0~50ºC)
	Other range presentation values are for reference only	Other range presentation values are for reference only	Other range presentation values are for reference only
	Temperature:
	±1ºC (-10~60ºC)
	±2ºC (Other range)
	Humidity:
	±5% (10~90%,25ºC)
	±6% (Other range)
Resolution	Temperature: 1ºC
	Humidity: 1%
	CO2 concentration: 1ppm
Response Time(t90)	Temperature: 15 minutes
	Humidity: 15 minutes
	CO2 concentration: ≥ 3 minutes (in better air circulation)
Measuring Interval	Temperature: 1 second
	Humidity: 1 second
	CO2 concentration: 4 seconds
LCD Refresh Interval	1 second
Operating Temperature	0~50ºC(Over -20~60ºC range, automatic shutdown)
Storage Temperature	-30~ 60ºC (no battery)
Power Supply	Plan A: 3 PCS 1.5V AAA alkaline battery / USB power supply; Plan B: lithium direct charge / USB power supply
	(Choose one of the above)
Power Supply Interface	Type-C,DC 5V/2A
Protection Class	IP20
Size	91*76*40mm
Case Material	ABS
Weight	About 140g(without batteries)

Product Description DESCRIPTION:
YEM-42 series instruments are mainly used for environmental carbon dioxide concentration, temperature and humidity monitoring, suitable for homes, classrooms and offices.
YEM-42 uses a high-definition black-bottom color screen, and the screen brightness can be set with buttons. The instrument responds quickly, the temperature and humidity measurement interval is 1 second, and the carbon dioxide concentration measurement interval is 4 seconds.
On the basis of YEM-42, YEM-42S/42H uses high-precision sensors to improve the measurement accuracy of carbon dioxide.

FEATURES: HD black bottom color screen NDIR carbon dioxide sensor Human comfort index Carbon dioxide limit alarm Carbon dioxide User Calibration Screen brightness is adjustable Battery status indication

APPLICATION:• Shopping mall• Hospital• Restaurant• School• Home furnishing• Office space environment testing• Agricultural greenhouses, breeding• Laboratory

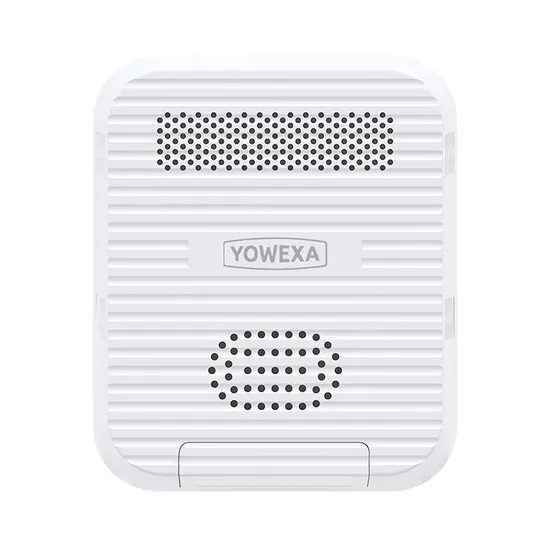

Product Display
Application
