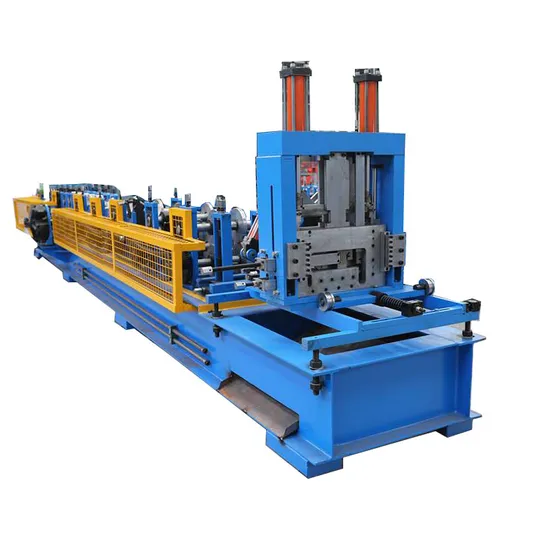

C/Z Purlin Adjustable Roll Forming Machine
Basic Info.
Model NO.
c z 80-300
Customized
Customized
Condition
New
Control Type
PLC
Automatic Grade
Automatic
Type
Rolling Machine
Power Source
Hydraulic Pressure
Feature
High Efficiency
Advantage
Use Widely
Forging Forming Method
Mold Forging
Control System
PLC Panasonic Inverter
Material of Roller
Cr12
Speed of Forming
10-14.8m/Min
Name
Purlin Adjustable Roll Forming Machine
Transport Package
Water-Proof Packaging, Covered with Plastic Film
Specification
C/Z80-C/Z300
Trademark
DIXIN
Origin
Botou Hebei China
HS Code
845522
Production Capacity
20 Set Per Month
Product Description
C/Z Purlin Adjustable Roll Forming Machine1. Specification
1) BV identification
2) high-quality product
3) smooth operation
4) reasonable structure
5) steady performance
2. Main Parameter and specification of the china hot sale c z purline roll forming machinery
We design each machine according to user requirement. Below techinical parameters can be adjusted if needed.
| Configurations | Manual Uncoiler ,Guiding Platform ,Coil Strip Leveler ,Main Body Of Roll Forming Machine, Electro-Motor, Hole-Punch Device ,Cutting Device ,Hydraulic Station ,PLC Control. |
| Control System | PLC Panasonic Inverter |
| Main Frame | 350mm H-Beam |
| Main Power | 18.5 kw |
| Pump Power | 15kw |
| Power Supply | 3-Phase,380V,50Hz |
| Forming Speed | 12-14m/min |
| Hydraulic Pressure | 18-20MPa |
| Forming Size | 80-300mm |
| Feeding Thickness | 1.5-3.2mm |
| Roller Station | 12 Stands |
| Roller Diameter | 80mm |
| Backboard Thickness | 18mm |
| Chain Size | 66mm |
| Cutter Standard | Cr12 |
| Roller Standard | Cr12 |
| Cr-Plating Size | 0.05mm |
| Overall Size | 9500 × 1400 × 1350mm |
| Total Weight | 6T |
4. The usage of the c z purline building material machinery
Our products are widely used in various industrial factory, civilian building, warehouse and easy steel building
Manufacturing, and have features such as nice appearance and durable.
We have CE, ISO and other Certification
Factory Show
Chat to me now, I will give you more discount!
Contact: Coco Wang mobile: +86 18231737651
