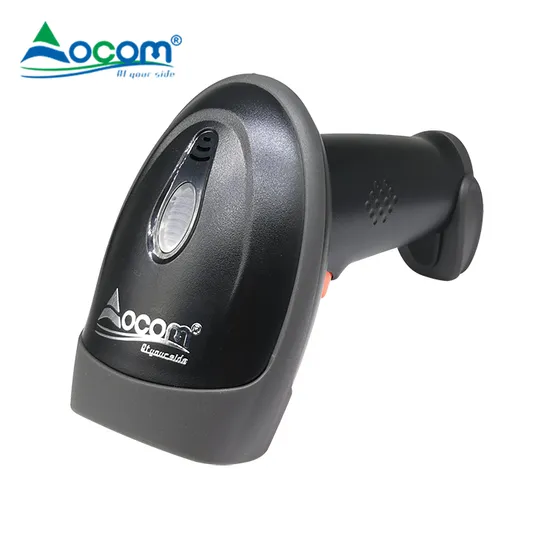

Bar Code Scanner 2D Portable with High Scan Speed
| US$2.00-23.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
OCBS-W235
Kind
Barcode Scanner
Scan Speed
200 scans/sec
Scanning Light Source
LED
Usage
Barcode Scanner, Document Scanner, Card Scanner, OMR Scanner, Photo Scanner, 2D Scanner
Network Scanning
Support Network
Interface Type
USB
Scanning Element
CMOS
Optical Resolution
1MP(1280*800)
Application
N/a
CPU
32 Bit
Wireless Function
2.4G+USB or 2.4G+Bluetooth+USB for Optional
Battery
1500mAh (20000 Times Scan and Transmission)
Decode Error Rate
Less Than 1/8 Million
Image Resolution
1MP(1280*800)
Print Contrast Signal
>30°
Scan Angle
Yaw(Skew)55° & Pitch55°
Model
Ocbs-W235
Transport Package
580*410*430mm/15.0kg for 50 PCS
Specification
190*115*80mm
Trademark
OCOM/OEM/NEUTRAL
Origin
Shenzhen, Guangdong
HS Code
8471900090
Production Capacity
50000PCS/Year
Product Description
Bar Code Scanner 2D Portable With High Scan SpeedM/N:OCBS-W235
Features:
Standard 2.4G+USB Communication
1 million pixel high precision scanning engine
Low power design can scan 15000 times
Scanning high density barcode has high performance
Superior performance for Small two-dimensional codes
Big wireless buffer can transfer 600 characters
Suitable for Russian tobacco projects
Specification
| General | |
| Model | OCBS-W235 |
| CPU | 32 bit |
| Wireless function | 2.4G+USB or 2.4G+Bluetooth+USB for optional |
| Battery | 1500mAh (20000 times scan and transmission) |
| Working Voltage | 5VDC ±10% |
| Current | working 250mA±5% |
| Performance | |
| Light Resource | CMOS |
| Decode error rate | Less than 1/8 million |
| Image resolution | 1MP(1280*800) |
| Precision | 1D≥ 4 mil (0.10mm),2D≥ 7 mil (0.10mm) |
| Print Contrast Signal | ≥ 30° |
| scan angle | Yaw(Skew)55° & Pitch55° |
| Decoding ability | 1D : UPC-A, UPC-E, EAN-8, EAN-13, Code128, Code39, Code 93, Code32, Code11, Codabar, Plessey, MSI, Interleaved 2 of 5, IATA 2 of 5, Matrix 2 of 5, Straight 2 of 5, Pharmacode, RSS-14, RSS-14 Expanded, RSS-14 Limited, Composite Code-A, Composite Code-B, Composite Code-C. 2D: PDF417,Micro PDF 417, QR Code (QR1/2, Micro),Data Matrix, Aztec, Chinese Sensible Code |
| Depth of scan field | Code 39-5mil:60mm-120mm UPCA-13mil(100%):35mm-310mm |
| Physical | |
| Weight | Gross:300g |
| Package | 190*115*80mm |
| 50 in 1 carton | 580*410*430mm/15.0kg |
| Environment | |
| Working temperature& humidity | 0 to 45 degrees centigrade, 10%~80% No condensation |
| Storage temperature& humidity | -20 to 60 degrees centigrade , 10%~90% No condensation |
