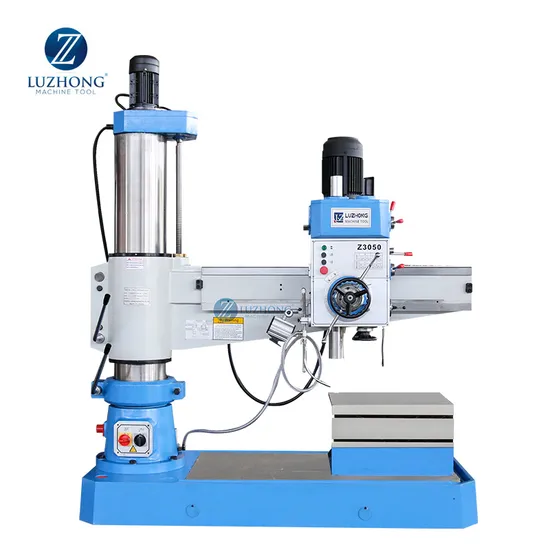

Small Bore Drill Machine Z3050X11 Radial Mini Drilling Machine

Product Description

Small Bore Drill Machine Z3050x11 Radial Mini Drilling Machine Product Description
The main performance characteristics:
Mechanical transmission
Mechanical clamping
Mechanical speed
Automatic take-off and landing
Automatic feed Product Parameters
Product main technical parameters:

Specifications	Z3050X11	Z3050x14
Max.drilling dia(mm)	50	50
Distance from spindle nose to table surface(mm)	260-1150	330-1310
Distance between spindle axis and column surface(mm)	360-1050	300-1250
Spindle travel (mm)	210	210
Spindle Cone	5	5
Spinde speeds range(r.p.m)	78, 135,240,350,590,1100	78,135,240,350,590,1100
Spinde speed step	6	6
Spinde feeding range(r.p.m)	0.10-0.56	0.10-0.56
Spinde feeding step	6	6
Rocker rotary angle	±90°	±90°
Main motor power(KW)	4	4
Movements motor power(KW)	1.5	1.5
N.W/G.W(Kg)	1700	2000
Overall dimensions(mm)	1550×705×2250	1950*810*2450

Detailed Photos
Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
