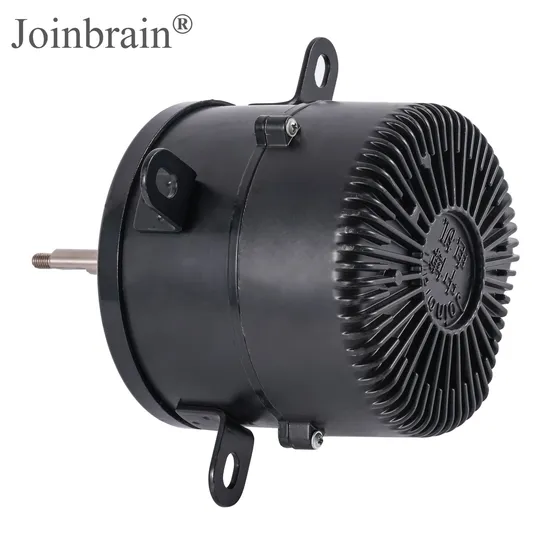

220V 230V 750W 500W Permanent Magnet Brushless Pmsm BLDC Synchronous Electric DC Fan Motor for Air Source Heat Pumps Axial Flow Fans Fresh Air Systems

Product Description

Product Parameters
Connection Mode: Experience seamless integration with our advanced connection modes, tailored to enhance the compatibility and functionality of your systems.

Motor model	Power supply	Number of phases	Number of poles	Output power	Current	Reference speed
Model	Vot	Phase	Poles	Output	Current	Speed
139BLDC-250W	AC220V	3	10	250W	1.05A	1000rpm
139BLDC-500W	AC220V	3	10	500W	2.1A	1000rpm
139BLDC-750W	AC220V	3	10	750W	3.3A	950rpm

Dimensions: Our motor is engineered with precision dimensions, ensuring a perfect fit and optimal performance within your air conditioning and ventilation setups.

Type	L	B	C	D	E	F	G	DD	d	H
139BLDC-250W	134	35	86	16.5	12	M8	39	190	12	10.5
139BLDC-500W	149
139BLDC-750W	159

Power Line Specification: Built to deliver robust power transmission, our motor's power line specifications guarantee durability and consistent energy flow for maximum efficiency.

Number	Colour	specification
1	RED	AC220V (L)
2	BLK	AC220V (N)
3	YEL/GRN	PE

RS485 Specification: Harness the power of efficient communication with our motor's RS485 specification, offering superior control and data exchange capabilities.

Number	Colour	specification
1	BLU	+5V
2	GRN	RS485 A
3	WHT	RS485 B
4	YEL	GND

Definition of Speed Regulation Signal Line: Achieve precise speed control with our expertly defined speed regulation signal line, designed for unparalleled performance adaptability.

Number	Colour	specification
1	BLU	+10V
2	WHT	VSP
3	YEL	GND

Note: The structure size and performance data are recommended values, meticulously crafted for standard applications. However, they can be finely customized to meet your unique specifications and requirements.
Product Description
Introducing our state-of-the-art commercial permanent magnet brushless DC motor, designed to deliver exceptional performance and efficiency.
Application areas: Discover its versatility in various applications such as air source heat pumps, axial flow fans, fresh air systems, household air conditioners, and commercial air conditioners. Its adaptability is unmatched.
Power supply: Designed to operate on AC220V/50Hz, this motor boasts a robust 10-pole construction, delivering an output power range from 100W to an impressive 750W.
Equipped with precision-engineered low-noise ball bearings, including top-tier brands like NSK and TPI, ensuring smooth and quiet operation.
Built with a versatile roll plate structure, the motor's adjustable installation size caters to diverse environmental demands, with an IP54 protection level for enhanced durability.
Employs advanced Hall-free FOC control technology for reduced noise and vibration, optimizing motor efficiency and reliability to the highest standards.
Controller speed control interface: a versatile (0 ~ 10V analog input) and an intuitive (RS485 communication interface) for seamless control integration.
Featuring a unique, integrated motor controller design for straightforward installation, offering a true plug-and-play experience.
Enjoy the benefits of stepless speed regulation with constant torque and speed, maintaining a consistent air volume for optimal comfort and performance.Recommended products
