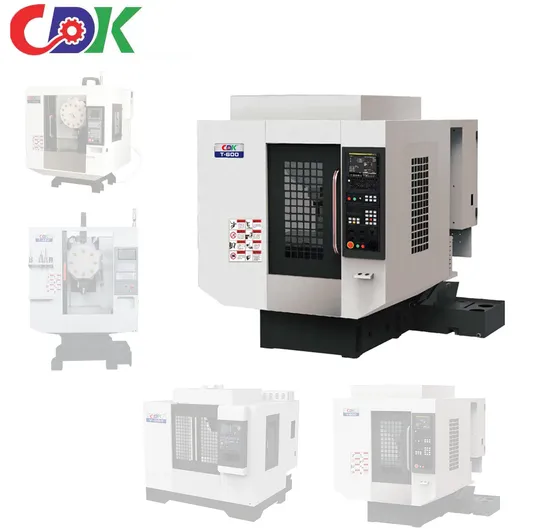

Cdk New T600 21t 3 Axis Drilling Tapping Machining Center Vertical CNC Mill Machining Center Universal CNC Machine Center for Flange

Product Description

Product Description
One-stop service for R&D, design, production and manufacturing of various kinds of automatic drilling/tapping machines, automatic assembly machines and CNC lathes.
Main Characteristics: 1. The machine tool blank is precision casted with resin sand, with large span herringbone column for
stablesupport, and after the second artificial aging treatment to ensure the rigidity ofthe machine tool.
2. lt can be equipped with optional fourth axis, Taiwan New Generation system, center water outlet, etc. it iswidely used.
PRODUCT INTRODUCTION:
1.Adopting servo tool magazine, which can select tool arbitrarily, highlyefficient and quick.
2. Adopting high rigidity spindle motor, mainly used for drilling and tapping ofsteel parts, cast iron parts and copperand
aluminum parts and othermaterials, as well as light load milling processing, with strong versatility andexcellent performance.
4-axis: On the basis of three axis, a rotary axis is added to realize multi-facemachining by rotating, which reduces the number of clamping timesand improves the machining efficiency.
5-axis: In fact, on the basis of the 3-axis, two rotary axes are added, which can be used for machining any surface other thanthe fixed surface of the workpiece.
Detailed Photos
Product Parameters

ITEM	UNIT	T600-21T
Size of working table (L*W)	mm	700*240
T-slot (number of slots*slot width*slot)	mm	3*14*120
Maximum table load	kg	250
Maximum travel(X*Y*Z)	mm	600*400*300
Distance from spindle nose to table surface	mm	150~450
Rapid traverse speed (X*Y*Z)	mm/min	48*48*48
Feed speed(X*Y*Z)	mm/min	10000
Spindle taper hole specification	-	BT30
Maximum spindle speed	rpm	8000/12000 / 20000
Spindle drive mode	-	Direct connection
Tool magazine type	-	Disc clamping arm type
Tool shank type	-	BT30
Maximum number oftools	PCS	21T
Max. tool diameter	mm	φ100
Max. tool diameter (without propper)	mm	φ140
Max. tool length	mm	200
Max. tool weight	kg	3
Tool change time (T to T)	sec	1.6
Positioning accuracy	mm	±0.005/300
Repeat positioning accuracy	mm	±0.003/300
Spindle servo motor	kw	3.7/5.5
Control System	-	Syntec
Floorspace(L*W*H)	mm	1800*2350*2200
Machine Weight(Gross)	kg	2750

Our products are widely used in metal process, automobile and motorcycle bicycle processing, hardware, electronics, zinc-aluminum casting,furniture, energy equipment, aerospace industry, electronic power tools and other dozens of professional areas



Company Profile
CIXI DINGKE MACHINERY & EQUIPMENT CO., LTD. for more than 20 years. The factory is Located in Ningbo, China. Since inception, the company has been awarded ISO9001 and CE certification, "CDK" logo of the registrar, and more than ten utility models and appearance patents. We dedicated to the "CDK" pneumatic, hydraulic,CNC automatic drilling machine, gear type,CNC, servo automatic tapping machine, multi-spindle drilling tapping machine,nut/fastener tapping machine, and many other fully automatic drilling tapping machine, CNC drilling tapping center, we provide one-stop customization services, including tap, drill bit, chucks, fixtures,mechanical accessories,and so on.
Our products are widely used in metal process, automobile and motorcycle bicycle processing, hardware, electronics, zinc-aluminum casting, furniture, energy equipment, aerospace industry, electronic power tools and other dozens of professional areas.The products marketing covers all the word, such as:Europe,the United States, Canada, the Middle East,Africa,Russia,Japan,Southeast Asia and China:North China ,East China, Central China, Northwest China,Taiwan, etc.
We believe: choose DINGKE CNC is to choose to walk with science and technology, and the world synchronization of an experience! We promise: we have come to DINGKE CNC, never forget! Looking forward to your cooperation!
