HVAC Medium Efficiency Customize Air Pocket Filter Medium Efficiency Air Filter

Product Description

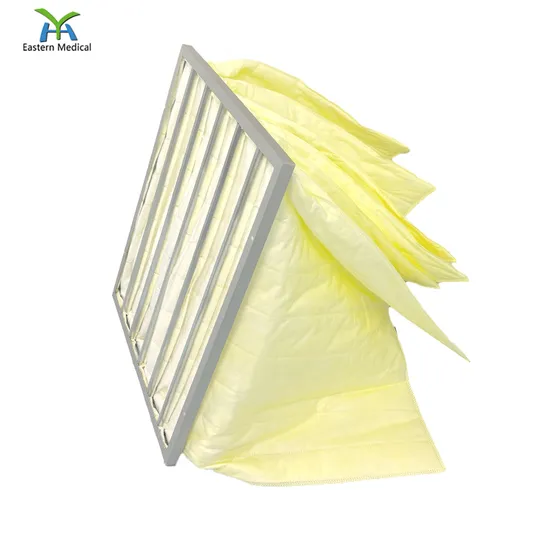

Medium efficiency bag filter
Performance characteristics
Filtering efficiency levels G4~F8 are available for selection
Using specially designed high-throughput low resistance chemical fiber cloth as the filter material, with a large dust holding capacity
Can be equipped with galvanized frame, aluminum alloy frame, plastic frame or stainless steel frame
Design features:
1. The medium efficiency bag filter, with its unique bag structure, ensures that the airflow is evenly filled
Fill the entire bag; Unique hot melt technology can prevent bag fingertips from being too crowded
Or leakage may occur, which reduces resistance and maximizes dust holding capacity.
2. The 'bag support grille' that serves as reinforcement can prevent the filter from operating in extremely poor conditions
Shrinkage or bending deformation in the working environment;
3. Our company offers both national standard and European standard bag filter materials for customers to choose from. Customers can choose from them
Choose different filter media based on their cost-effectiveness to ensure the quality of the filtration series
Efficient operation;
4. Application
Mainly used for general air purification systems in industries such as electronics, biopharmaceuticals, mechanical instruments, and petrochemical light industry
Widely used in central air conditioning and ventilation systems, pharmaceutical, hospital, electronics, food and other industrial purification, it can also be used as an efficient air filter
Front end filtration is used to reduce the load on high-efficiency air filters and extend their service life

model	efficiency	External dimensions Width * Height * Depth	Number of bags	Effective Face to Face product	Initial resistance | Airflow Pa /Cubic meters per hour
DZ/F 6660/06-F5	F5	592*592*600	6	4.64	20	2500	45	3600	70	5000
DZ/F 3660/04-F5	F5	287*592*600	4	3.09	20	1250	40zzzzz	1800	70	2500
DZ/F 5650/05-F5	F5	490*592*500	5	3.22	25	2000	40	3000	70	4000
DZ/F 6665/08-F6	F6	592*592*650	8	6.60	35	2500	65	3600	110	5000
DZ/F 3655/04-F6	F6	287*592*550	4	2.79	40	1250	75	1800	125	2500
DZ/F 5665/08-F6	F6	490*592*650	8	6.45	35	2000	60	3000	100	4000
DZ/F 6655/08-F7	F7	592*592*550	8	5.58	50	2500	80	3600	125	5000
DZ/F 3665/05-F7	F7	287*592*650	5	4.03	45	1250	70	1800	120	2500
DZ/F 5655/06-F7	F7	490*592*550	6	4.19	50	2000	80	3000	125	4000
DZ/F 6665/12-F8	F8	592*592*650	12	9.44	60	2500	100	3600	170	5000
DZ/F 6655/08-F8	F8	592*592*550	8	5.58	70	2500	110	3600	170	5000
DZ/F 3665/06-F8	F8	287*592*650	6	4.72	60	1250	100	1800	170	2500
DZ/F 3665/05-F8	F8	287*592*550	5	4.03	60	1250	100	1800	175	2500
DZ/F 5655/06-F8	F8	490*592*550	6	4.19	70	2000	110	3000	175	4000

Kind reminder: Customization can be processed according to customer specifications and requirements
