Plastic Thermoforming Pet PP PS Biodegradable Sheet Extruder Machine Plastic Sheet Extrusion Line

Product Description

Product Description
PET/PLA Environmental Sheet Extrusion Line
PET/PLA environmental sheet extrusion line: CIE group develops the parallel twin screw extrusion line for PET/PLA sheet, this line equipped with degassing system, and no need drying and crystallizing unit. The extrusion line has the properties of low energy comsuption, simple production process and easy maintenance. The segmented screw structure can reduce the viscosity loss of PET/PLA resin, the symmetrical and thin-wall calender roller highten the cooling effect and improve the capactity and sheet quality. Multi components dosing feeder can control the percentage of virgin material, recycling material and master batch precisely, the sheet is widely used for thermoforming packaging industry.
Our Advantages:
- Fully considers PET production process and combined with advanced PET extruder technology of Germany and Italy.
- The elements screw design and the barrel adopts European advanced vacuum system
- No need crystallize and dehumidify-dryer
- Universal Extruder design for 100% PET flakes or mixture of virgin + flakes, also available for running PP, HIPS, PLA.
Configuration of PET PP PS PLA Plastic Sheet Extrusion Line

SPECIFICATIONS FOR PET/PETG/CPET Precision Sheet Making Machine
Model	CIE130 high exfficient	CIE-85/44 Non crystalline
Extruder Model	CIE130/33 single screw	CIE85/44 parallel double screw
Main motor power	185KW	200KW
Products thickness	0.15-1.5mm	0.15-1.5mm
Capacity	Max. 850kg/h	700-950 kg/h

PAR T1 THIS LINE CONSISTS OF (COMPULSORY)
1	Automatic vacuum feeding machine			1 set
2	High efficiency single screw extruder (90/33,120/33, 130/33) or Twin screw extruder(75/33, 85/44)			1 set
3	Hydraulic exchanging unit			1 set
4	Melting gear pump			1 set
5	T-type /hanger type die head (JC-Times brand)			1 set
6	Three Roller Calendars (alloy steel material )			1 set
7	Temp. controller			1 set
8	Cooling frame and edge cutting unit			1 set
9	Silicone coating &dryer			1 set
10	Haul off unit			1 set
11	Twin position sheet winder			1 set
12	Stacker			1 set
13	Electrical cabinet (ABB,Omron, RKC, Siemens etc)
14	Spare parts			1 set
PART 2 ACCESSORY MACHINE PARTS (OPTIONAL)
1	Air compressor		1 set
2	Industrial water chiller		1 set
PART 3 SHEET SPECIFICATIONS
1	Sheet width	600-1200mm
2	Sheet thickness	0.2-2mm
3	Type	PET single layer/mono layer sheets
4	Raw material	1. Can be virgin plastic pet material 2. Can be recyclable material, like PET Bottle Flakes
PART 4 SHEET APPLICATIONS
1	Packing, printing, stationery, art works etc.
2	Main Products: Gift/ad/file bag/lamp cover/food packaging

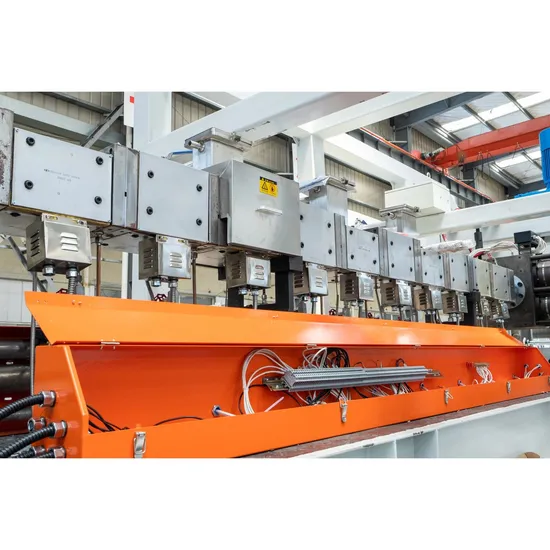

Extrusion Screws
♦Special design of PET parallel twin-screw extruder; no need crystallize & dehumidify-dryer
♦Elements screw design meets more material applications
♦Four vents of barrel match the European technology vaccum system ♦Universal Extruder design for 100% PET flakes or mixture of virgin + flakes, also available for running PR HIPS, PLA.
L-shape 3 roll Calender
♦Special design of PP/PS sheet production processes, fastest cooling , highest accuracy
♦Standard of rolls stand is Vertical or Inclined
♦Rolls stand can also be designed as L shape, horizontal, etc. based on requirements
♦Rolls driven & controlled individually, also synchronized.
Silicone Coating&dryer
♦The coating roll opening and closing, and the drying box opening and closing are by air cylinder.
♦The coating oil is recycling.
♦Drying by special heating pipes and fan.
Haul Off unit
♦The speed controlled by servo motor separately or controlled synchronized with the calender speed.
♦With the safety line and the emergency stop \
♦With the statics remover for sheet surface
♦Upper rubber roller and lower steel roller
Winder
♦ With the special accounting system for the winding length
♦3 working positions, max. winding dia. 600mm
♦Winding by servo motor, turing by AC motor.
Electric control cabinet
♦SIEMENS PLC (HUMI) controls whole line, all production processes data display & save
♦Special adjust system for thickness change, high accuracy; low waste of material & time
♦SIEMENS Driver/ SIEMENS Servo controller are machine standard, with global Warranty
♦Other electric items by International famous brands as well, SIEMENS, ABB, YASKAWA. Etc.
The PET PP PS PLA SHEET applications: The PET sheet is widely used in vary industry such as food package, electronic parts package,drugs package, medical equipment package, microwave stove plate, stationery package, etc.
CIE EXTRUFORMING MACHINES(SHANGHAI) CO., LTD. is a high-tech enterprise certified by the state. The factory is located in Fengjing Economic Development Zone, Jinshan District, Shanghai. For many years, it has been committed to becoming a leading supplier of plastic extrusion equipment and plastic thermoforming equipment in the industry. Since its establishment, the company has always followed the business philosophy of "integrity; pragmatism, development and innovation", and has long focused on the exploration and innovation in the design, R & D, manufacturing, sales and after-sales service of plastic extrusion equipment and plastic thermoforming equipment, aiming at providing customers with first-class overall solutions for the industry. CIE has introduced advanced technologies from Germany and Italy, and combined with its own multi-functional advantages Years of R & D and manufacturing experience and application cases, continuously manufacturing high-end, efficient environmental protection and energy-saving intelligent extrusion equipment for the industry. At present, it has been exported to many countries in the world and won high recognition and praise from customers in the industry.
FAQ
Q1: Are You Manufactory or Trade Company?
We are the 100% Manufactory specialized in thermoforming indurstry for plastic disposable packaging over 10 years with 1,000 square meters workshop area, located in Huzhou, Zhejiang Province, which it's 2 hours by car from Shanghai Pudong Airport to our factory. You are warmly welcome to visit our factory.
Q2: What is the material you used? Is it food grade or eco friendly?
The main materials we used is PLA, PET, PP, PS, PVC, PC All the materials we used is food grade and eco friendly which pass ROHS, GRS, SGS,ISO9001,ect., EXCEPT PVC. PVC is not food grade materials. Mainly used to pack electronics and harware.
Q3: Can you provide OEM and ODM services?
Yes. About OEM, you can customize machine such as printing your logo on, color and packaging.
About ODM, our factory has a professional team with rich experience in the design and manufacture of plastic forming machines. Just tell us your idea and we will help to find the optimal solution.
Q4: Is there quality control when manufacturing the lines?
A: Certainly, we have a group of team who will be responsible for quality control from laying off the raw material, processing the rollers and the other parts, making treatment on the roller surface and shaft, assembling, testing and packaging.
Q5: What's your strength comparing to the other supplier?
A: We'll supply you the best quality and service and provide you with good advice beyond your requirements. The lines are easily for installation with low maintenance requirements.
