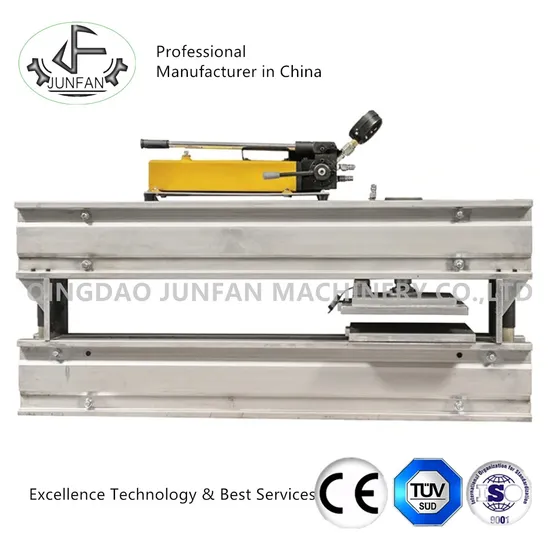

Rail-Mounted Type Hydraulic Spot Repair Vulcanizing Press

Product Description

Rail-Mounted Type Hydraulic Spot Repair Vulcanizing press
All our machines can be customized according to your requirements.
Features of a Spot Repair Vulcanizer
1.Portable due to the low weight with two components
2.spot repairs on rubber conveyor belts
3. smaller controller, also with temperature & time automatic controler
4.Easier operation with aluminum alloy body
Specification
1.Pressure: 0.3~0.5Mpa
2.Power :1.6~1.7KW
3.Voltage: Single phase 220V or 380V
4.Heating platen dimension: 350*350mm
>> Company Information
1. 40 years on rubber machinery manufacturing and exporting.2. Delivery within 30 days.3. Safety wood or plywood crates packaging.4. Full transportation insurance.5. Sell to 126 countries on 6 continents.
>> Features 1. The rubber vulcanizing machine has light weight; About one person can move it. It consists of the following components: Rack / Pressure Bracket, fastening device, sizing block, screw, nut, gasket, high-pressure hose, hydraulic test pump, thermal baffle, on the heating plate, secondary cable, electric cabinet, cables, down the heating plate, Suppress water bag.
2. The material of main machine components made of aluminum alloy, light weight, easy installation and removal, easy to handle.
3. Suppress water bag(its function is increase pressure) technology has reached international advanced level, it has following characters:
(1)Light weight, it is the 1/4 weight of the ordinary.
(2)Large expansion amplitude.
(3)Uniform pressure and the pressure can reach 3.0MPa.
(4)No water leakage and long life.
>>MAIN TECHNICAL SPECIFICATION

Model	Temperature(ºC)	Power(kw)	Dimensions(L*W*H mm)	Weight(kg)	pressure(Mpa)
YXL-200x200	145	1.1	1300*200*780	145	≤2.0Mpa
YXL-250x250		1.4	1300*250*780	149
YXL-300x300		1.6	1300*300*780	152
YXL-350x350		1.9	1300*350*780	163

>> LAB MACHINESWe had a lot of cooperation with East China University of Technology State Key Laboratory of Chemical Engineering, Qingdao university,Beijing chemical industry research institute ect. and supply the lab rubber machines. >>MACHINE LISTOur company specially manufacturring rubber mixing mill, rubber vulcanizing press( frame type, four column type and lab press), rubber kneader and tire recycling line.
>> AFTER SERVICES FOR THE PRESS1. The above machines are all passed inspection of 3~5 hours of full load operation before leaving the factory, you can use it directly thus saving the time of test-run and expense.
2. Warranty: 12 months after installation, if our machines have any problems, you can feel free contact me, we will solve it as soon as possible, and give you the best services.
Delivery Demonstration
Some Exhibition Pictures
COMPANY CERTIFICATE
>>FAQ
1. Delivery time of the rubber machines?
This is specially designed machine according to your specific requirement.
From engineer designing to production completion, it needs about 25 to 35 days.
2. What does your factory do regarding quality control?
We pay much more importance to quality control from the very beginning to the end of production.
Every machine will be fully assembled and carefully tested before shipment.
3. What's the machine quality guarantee?
Quality guarantee time is one year.We choose world famous brand components to keep our machine in perfect working condition.
4. Are you able to give installation and commissioning overseas? How long time will it take?
Yes, we can supply overseas service and technical support but customer needs to pay for the cost of the installation.
Small machine usually takes within 2~3 days.
Big plant usually takes about 30 days.
5.How can I trust you to deliver the right machine as I ordered?
We will absolutely deliver a good quality machine as we discussed and confirmed in the order.
The core of our company culture is innovation,quality,integrity and efficiency. Also we have had many good cooperation with world famous rubber production manufacturers. If you come to our factory, we can show you're the user around us.
6.How can we go to your side?
We are located in Qingdao City, Shandong province, China. The name of airport is Qingdao liuting airport.
We will pick up you at the airport.
