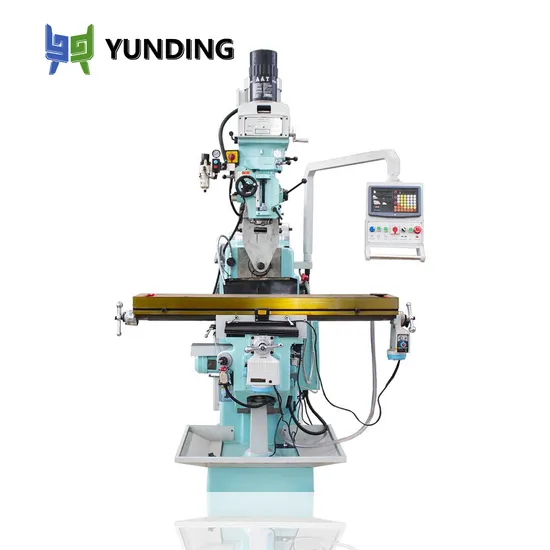

X6325W China Manual Metal Variable Speed Knee Type Universal Turret Milling Machine

X6325W China Manual Metal Variable Speed Knee Type Universal Turret Milling Machine

US$3,000.00-3,800.00 1 Piece (MOQ)

Basic Info.

Model NO.
X6325W
Type
Knee-and-Column Milling Machine
Object
Metal
Structure
Lifts
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Overall Welding Tooth
Controlling Mode
Artificial
Automatic Grade
Automatic
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Table Size
1270X254mm
Long Travel(mm)
780mm
Cross Travel(mm)
400mm
Vertical Travel(mm)
370mm
T-Slot No. and Size
3X16
RAM Travel(mm)
500mm
Distance From Spindle Nose to Table Surf
0-500mm
Spindle Travel(mm)
127mm
Telescopic Stroke
470mm
Head Swivel
90°
Weight
1100/1450kg
Transport Package
Plywood Case
Specification
1680x1790x2235mm(include 2 sets)
Trademark
yunding
Origin
China
HS Code
8459590000
Production Capacity
2000/Year

Packaging & Delivery

Package Size
168.00cm * 179.00cm * 223.50cm
Package Gross Weight
1100.000kg

Product Description

Product Description
X6325W China Manual Metal Variable Speed Knee Type Universal Turret Milling Machine
we are the most professional in making horizontal milling machine
Product Parameters
Performance characteristics: 1. Using rectangular guide machine is Rigid good,
2. Work table and guide rail through the ultra audio spark quenching.
3. Work bench X. Y.Z are gear drive automatic feed and manual operationApplication:1. Universal lifting platform milling machine is a kind of general metal cutting machine tool.
2. Spindle taper hole of the machine can be directly or through the attachment installed all cylindrical milling cutter, disc cutter, molding cutter, end milling cutter tool, suitable for processing a variety of small parts of plane, inclined plane, grooves, holes, and other gear.
3. Is a mechanical manufacturing, mold, equipment, instruments, automobiles, motorcycles and other industries of the ideal processing equipment.
Main technical specifications Model Units X6325W X6330W
Table size(mm) mm 1270X254 1370X305
Long travel(mm) mm 780 900
Cross travel(mm) mm 400 400
Vertical travel(mm) mm 370 420
T-slot No. and size 3x16 3x16
Ram travel(mm) mm 500 500
Distance from spindle nose to table surface(mm) mm 0-500 0-500
Spindle hole taper mm Standard:R8 Standard:R8
Optional: ISO30/ISO40 Optional: ISO30/ISO40
Spindle travel(mm) mm 127 127
Spindle speed Standard:16steps Shift grade: Standard:16steps Shift grade:
50HZ:65-4500 50HZ:65-4500
60HZ:80-5440 60HZ:80-5440
horizontal 45-1350(12 step less) horizontal 45-1350(12 step less)
Optional : stepless Optional : stepless
Variable: 65-4500 Variable: 65-4500
Auto quill feed kg Three steps: 0.04/0.08/0.15 mm/revolution Three steps: 0.04/0.08/0.15 mm/revolution
Telescopic stroke mm 470 470
Spindle power KW V 2.2KW/3HP/ (Optional 5HP) V 2.2KW/3HP/ (Optional 5HP)
H 2.2KW / 3HP H 2.2KW / 3HP
Head swivel ° 90 90
Head tilting ° 45 45
Dimension of package mm 1516x1550x2235 1516x1550x2235
1680x1790x2235(include 2 sets) 1680x1790x2235(include 2 sets)
1650x2285x2235(include 3sets) 1650x2285x2235(include 3sets)
G.W./N.W. (kg) Kg 1100/1450 1200/1550

Realistic photos
Detailed Photos
Our Advantages
Certifications
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.
