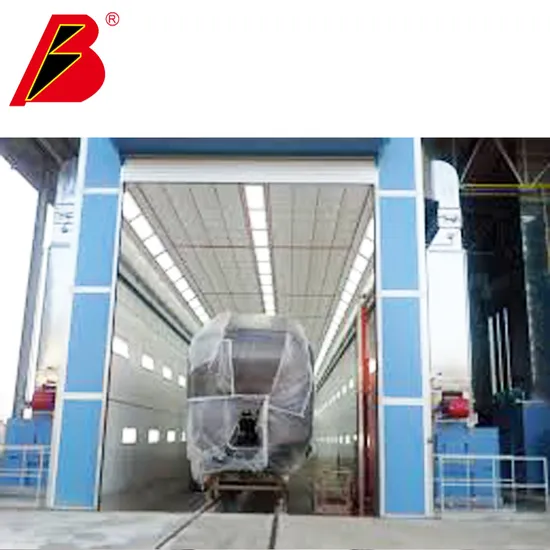

Bus Painting Booth / Train Spray Booth / Truck Paint Booth
| US$25,000.00-150,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
BZB-BF
Type
Spray Booth
Certification
CE
Substrate
Steel
Brand
Bzb
Coating
Painting
Airflow Direction
Fully Undershot-type
Heating Mode
Diesel
Paint Mist Treatment
Dry-type
Condition
New
Color
as Require
Voltage
as Require
Transport Package
Export Package
Trademark
BZB
Origin
Guangzhou, China
HS Code
84198990
Production Capacity
500sets/Year
Product Description
Train Paint Booth Manufacturer in China Top Coating equipment Factory Paint SolutionWe accept different kind of customied painting equipment.such as train,bus,truck,boat.ect
Attached follow standard dimention for reference
| specifications of spray booth of 15meters suitable for bus, only for reference.Train Spray booth will be much big | |||||
| model of spray booth: | BZB-FB model | manufacturer | Jingzhongjing | ||
| technical parameters | (L× W× H)outside size | 15156× 6956× 5800 | structure parameter | thickness of wall panel mm | 75 |
| (L× W× H)inside size | 15000× 5000× 5000 | thickness of steel sheet mm | 0.5 | ||
| Access door width(mm) | 4000 | stuffing | EPS Panel | ||
| Access door hight(mm) | 4500 | grid | 30*4flat iron | ||
| air speed when empty(m/s) | ≥ 0.25 | shelf of the booth | square steel pipe+angle iron | ||
| noise dB | ≤ 85 | mesh | square steel pipe | ||
| total power kw | 52 | cabinet | square steel pipe+galvanized steel plate | ||
| max work temprature | 80 centi degree | illuminance parameter | lamps(pcs) | ceiling lamps72 | |
| spec. of burner | burner | 2 sets of RG5S Riello Burner | bottom lamps 40 | ||
| max heat Calories/h | 260000*2 | power/pc W | 36 | ||
| fuel consumption L/h | (13-26)*2 | lamps | 220V/50HZ | ||
| heat-exchanger | stainless steel | illuminance Lux | ≥ 800 | ||
| spec. of inlet fan | model of inlet fan | YDW-5.6S | outlet air parameters | outlet pipe(mm) | 900× 900 |
| estimated air Volume m3/h | 17530 | chimney | galvanized steel plate | ||
| power/set(KW) | 7.5 | hight of chimney | standard 12m plus two elbows | ||
| Quatity | 4 | electric appliance | control box model | PLC control board | |
| spec. of outlet fan | model of outlet fan | 4-82-6.3E | components of control box | main parts are importd. | |
| estimated air Volume(m 3 /h) | 34000 | others | color | grey/sky blue/orange(optional) | |
| power/set(KW) | 15 | work plate lifter | optional | ||
| quatity | 2 | ||||
| remarks | |||||
| made by: Guangdong Jingzhongjing Industrial Painting Equipment Co., LTD. | Aprill. 30th, 2011 | ||||
