Advanced High Speed Single Screw HDPE/LDPE/PLA/Pbat Film Blowing Machine

Product Description

Product Description

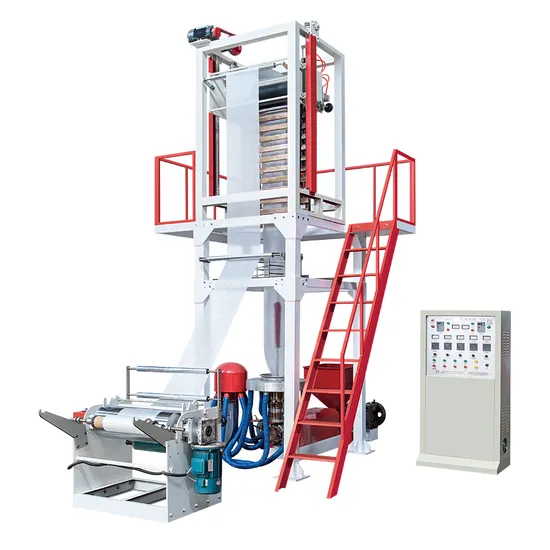

HD/LD PE Film Blowing Machine
Its extruder, cylinder and screw rods are made of quality alloy steel that have been nitrized and processed in a precision way. Hence it is sound in hardness, durable in corrosion resistance. The specially-designed screw is of sound quality in plasticizing, which helps increase the production capacity. It is applied to blowing the plastic films like low density polygene (LDPE), high density polytene(HDPE) and linear low density polytene (LLDPE). It is widely applied to producing the packing bags for foodstuff, clothing, rubbish bag and vest ones.
Product Parameters

Model	XY-H50	XY- H55	XY- H60	XY- H65
Suitable material	HDPE / LDPE / LLDPE
Film width	100-600mm	200-800mm	300-1000mm	400-1200mm
Roller width	700mm	900mm	1100mm	1300mm
Film thickness	0.01-0.15mm
Max.output	55kg/h	65kg/h	75kg/h	85kg/h
Screw diameter	Φ50	Φ55	Φ60	Φ65
Screw L/D	30:1	30:1	30:1	30:1
Driving motor	15kw	18.5kw	22kw	30kw
Gearbox	146	173	173	180
Die size	Φ60	Φ80	Φ100	Φ120
Weight	1500kg	2000kg	2300kg	2600kg
Machine outside	4x2.5x4.5m	4.5x2.8x5.0m	5x3x5.2m	5.5x3.5x5.5m

Certifications
Packaging & Shipping
Company Profile
FAQ
1. Are you factory or trading company ?We are factory specialized in plastic machine for many years, also we have the right to export goods by ourselves.2. Where is your factory? How can i visit your company?Our factory is located in Ruian city,zhejiang province, China. Its about 40 minutes from shanghai by plane(4 hours by train). We will pick you up on airport or station.
Welcome to visit our factory3. How long is your delivery time?Normally our delivery time is 15-30 days. If you need it ugently, we can make it about7 days4. What are your terms of payment?We accept 30% deposit, balance before shipment. And Irrevocable L/C at sight. 5. What package do you use for the product?Be Coated with anti-corrosion oil, and covered with plastic film, wooden box package need extra cost. 6. Does your factory provide installation service?Our engineer can go to customer factory to installation. Customer should prepare materials used to testing the machine in advance and should be responsible for the cost of supplier's technician, including round air tickets, visa cost, accommodation and salary 100USD/Day per person since the day start out until the day arriving at factory.7. What's your warranty policy?12 month guarantee and whole life maintance.
8. What is your company after sale service?We would express the free replacement parts as soon as possible.
