Animal/Poultry/Cattle/Rabbit Feed Pelleting Machinery Pellet Mill Plant
| US$33,000.00-85,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
9KWH Series Pellet Production Line
Processing Technics
Crushing-before-Mixing
Screen Mesh
With Screen Mesh
Grinding Equipment Type
Feed Hammer Mill
Pellet Mill Type
Ring Die Pelleter
Condition
New
Applicable Materials Shape
Granular
Warranty
1 Year
Name
Animal Feed Pellet Machine
Ring Die Diameter
250-420mm
Main Power(Kw)
37
Ring Die Size(mm)
320
Diameter of Feed Pellets(mm)
2.5-8
Capacity(Kg/H)
2-4t/H
Power of Screw Feeder(Kw)
3
Power of Conditioner(Kw)
2.2
Spare Parts
Ring Die and Roller
Voltage
3 Phase
Certification
ISO CE BV
Color
Clients′ Requirement
Final Product
Pellet Feed
Dimension(L*W*H)
Design
Transport Package
Export Wooden Box Packaging
Trademark
Xinhengfu
Origin
China
HS Code
8436100000
Packaging & Delivery
Package Size
800.00cm * 600.00cm * 2300.00cm
Package Gross Weight
60000.000kg
Product Description

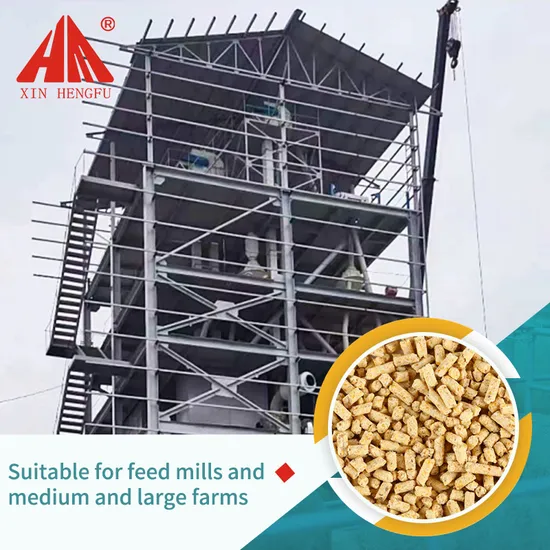

Animal/Poultry/Cattle/Rabbit Feed Pelleting Machinery Pellet Mill Plant1.Introduction:
The poultry feed pellet production line can be make feed pellets for all kinds of poultry,
and it suitable for most small and medium feed mills,the feed pellet can be used to own farm to use,and for marketing
2.Application scope :
3.Finished Products:
The granules are formed at one time, easy to feed, store and transport,and you can make 2-8mm diameter animal feed pellets.
a. For pig, the pellet diameter is usually 3.5-6.5mm.
b. For cattle, the pellet diameter is usually 4.5-8mm.
c. For chicken, pellet diameter is usually 3.2mm.
d. For fish, pellet diameter is usually.0.9-3.0mm.
e. For shrimps, pellet diameter is usually 1.0-3.5mm.
Pellet length is customized.
4.How to work:
Process of animal poultry feed pellet plant:
Raw material > Grinding System > Mixing System > Pelleting System > Cooling System > Crushing System > Screening System > Packing System
10T/H feed pellet production line
Equipment introduction
5.Product Paramenters:
| Model | Transfer Method | Main Power(kw) | Feeder Powder(kw) | Conditoner Power(kw) | Capacity(t/h) |
| 9KWH250 | Belt Drive | 22 | 1.5 | 2.2 | 0.5-1.5 |
| 9KWH304 | Belt Drive | 30/37 | 1.5 | 2.2 | 1-3 |
| 9KWH320 | Gear Drive | 37 | 1.5 | 2.2 | 2-4 |
| 9KWH350 | Gear Drive | 55 | 1.5 | 3 | 3-6 |
| 9KWH400 | Gear Drive | 75/90 | 2.2 | 3 | 7-10 |
| 9KWH420 | Gear Drive | 110 | 2.2 | 3 | 10-15 |
6.Production Features:
7.Customer Case:
The product sales area has been spread across more than 30 provinces,municipalities and autonomous regions, and exported to more than 30 countries such as Garner,Botswana, Benin, Ivory Coast, Mozambique, Indonesia, Malaysia and Korea.
