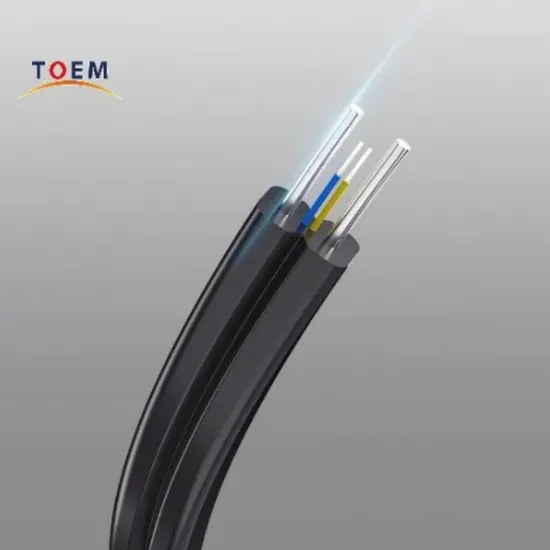

Spiral Bow-Type Fiber Optic Drop Cable FTTH Butterfly Cable for Access Network

Product Description

FTTH Butterfly Fiber Optic Cable For Access Network
Description: Tight-buffered fiber,spiral armor,strength member,jacket
Fiber: SM: G652D,G655,G657 Or other single-mode optical fibers.
Tight-buffer: Ф0.6mm,Ф0.7mm,Ф0.9mm Product Parameters

Description	Tight-buffered fiber,spiral armor,strength member,jacket
Fiber	SM:G652D,G655,G657 Or other single-mode optical fibers MM:A1a,A1b Or other multi-mode fibers.
Tight-buffer	φ0.6mm,φ0.7mm,φ0.9mm
Spiral Armor	φ1.2mm,φ1.8mm
Strength Member	FRP or steel wire
Jacket	Materials:low smoke halogen-free flame retardant polyolefin (LSZH)or other materials. Color:Color as specified by standard or other color
Features
Application	Used in rodent active area FTTH Used in rodent active area indoor cabling.
Characteristic	Good Anti-Rodent performance Good crush performance. Good mechanical and environmental performance
Temperature	-40ºC~+60ºC
Parameter
Fiber Count	Cable Dimension (mm)	Cable Weight (kg)	Tensile (N)		Crush (N/10cm)		Bending radius (mm)
			Long Term	Short Term	Long Term	Long Term	Static	Dynamic
1	3.5×2.5	18	40 (100)	80 (200)	1000	2200	10D	20D
2	4.2×3.0	24.0	40 (100)	80 (200)	1000	2200	10D	20D

Product Features
Water-blocking Gel technology (Thixotropic Gel);
TIA color-coded fibers for easy identification;
Small diameter single tube construction saves space inside ducts;
Fiber UV-protected jacket;
Armored Fiber Cable Low friction jacket for ease of pulling through ducts;
Corrugated steel tape and Music Wire armor for rugged environments and rodent protection;
RoHS certificate;
Application
Armored Custom Butter-shaped Fiber Optic Cable Suitable for inter-building backbone cabling (aerial, duct or direct burial); Suitable for harsh outdoor environments and rodent protection; Suitable for LAN & FTTH Optic Fiber to the Home; Ourdoor Armored Cable Compatible with splitter kits for termination with epoxy/polish, LightCrimp and LightCrimp Plus connectors; 1 Core 2 Steel Wire
2 Core 2 Steel Wire
1 Core or 2 Core 3 Steel Wire
FAQ
1.What Kind of Company are We?
Shanghai Gengyun Industrial Co., Ltd., based on the development of technology forum OF telecom optical&electric cable equipment and materials(TOEM), is mainly engaged in investment, trade, and technical services in the field of telecom optical & electric cable.
We provide our customers with complete materials demand solutions, as well as overall solutions and customized services in factory design, equipment configuration, product development and raw material supply.
2.Is our product single?
We have quite a wide variety of products.
Our products contain raw materials for optical fiber & cable, telecommunication cable include PE, PVC, FRP, PBT, water blocking yarn, water blocking tape, optical fiber ink, optical fiber, steel plastic composite tape, aluminum plastic composite tape, aramid yarn, etc. and
equipment for cable manufacturing including high-speed fiber coloring and rewinding machine, fiber merging machine, fiber screening and rewinding machine, special fiber drawing machine, coating production line, high-speed cable forming production line. There are different models of products under each category, and customization is supported.
3.Are samples available?
For most raw materials and optical cables, we can provide samples, but you need to bear the shipping costs; for cable manufacturing equipment, we can provide factory test reports of various indicators
4.Why Choose Our Company?
Our company was established in 2008 and has 16 years of experience in the communications industry. We can provide professional optoelectronic cable solutions and support product customization. Our products and raw materials are 100% in line with industry standards. We have warehouses all over the country, such as Shanghai, Jiangsu, Qingdao, Beijing and so on.
Customized
Cable Dimension: The nominal cable dimension,or other customized dimension.
Delivery Length: 1.0km or 2.0km, or other customized length.
Other requirements: other customized special request.

What We Have In The Field Of Telecom Optical & Electric Cable :
1>Mature and Efficient Supply Chain System And Rich Industrial Resources
2>Complete Materials Demand Solutions For Cable Manufacturing And Technical Services
3>Overall Solutions And Customized Services In Factory Design, Equipment Configuration, Product Development And Rawmaterial Supply *Quotation Varies According To Customer's Requirements And Quantity Of Products
