CE Certificated Euro5 6 Ton Mini Hydraulic Crawler Excavator with Various Attachments for Handle and Haul Materials Like Soil and Gravel

Product Description

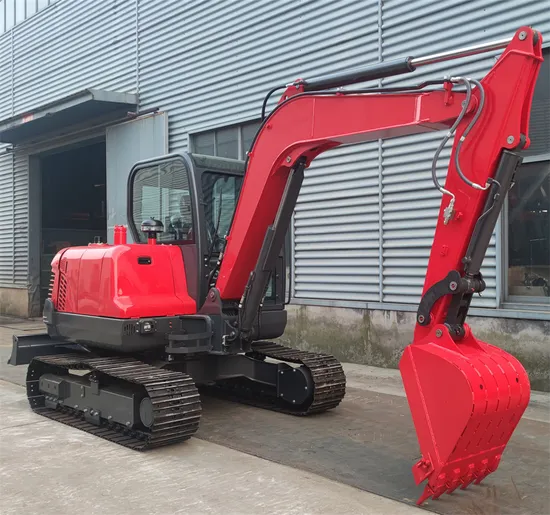

Dootec DT-65 Small Excavator on sale for Indonesia market 1. Dootec excavator has strong power with Japanese Engine, high stability, 4-cylinder branded water cooling engine. 2. The hydraulic system is purchased from a well-known brand, using Euro III engine, which has low fuel consumption and strong power. 3. The upgraded hydraulic system has better flexibility, low oil temperature and high working efficiency.

Detailed Photos
Product Parameters

No.	DT-65 Excavator Specifications
1	Engine Model	/	YANMAR 4TNV98-EXSDB1C
2	Emission	/	Euro III
3	Engine Power	/	39Kw/2100RPM
4	Cylinder Number	/	4
5	Injection Methods	/	Direct Injection
6	Performance
7	Bucket Capacity	m3	0.22
8	Structure Weight	kg	6000
9	Climbing ability	/	30°
10	Walking Speed	Km/h	4.5/2.1
11	Stick digging force	Ton	2.8
12	Bucket digging force	Ton	3.9
13	Pump	/	Mottrol(Doosan)
14	Main Controlling Valve	/	Korean Imported
15	Working Specification
F	Max. Digging Height	mm	6136
C	Max. Digging Depth	mm	3807
A	Max. Digging radius	mm	6000
D	Max.Unloading height	mm	5788
H	Maximum Vertical Digging Depth	mm	3037
	Main Size
X	Wheelbase	mm	1990
N	Rear turning radius	mm	1660
M	Minimum turning radius	mm	2430
C	Minimum ground clearance	mm	350
Y	Total track length	mm	2540
a	Width of Crawler	mm	400
U	With of Upper Body	mm	1870
P	Total transport height	mm	1920
R	Total transport Width	mm	2000
Q	Total transport length	mm	5870
S	Height of counterweight to the ground	mm	700

Hot Product
DT350 DT260 DT230

DT65 DT160 DT180
DW80 DW88 DW150
mini excavators:
WS-17 WS-18 WS-15
WS-13 WS-12 WS-08
Company Profile
Established in 2014, Wishope Machinery focus on construction & agricultural machinery products manufacturing and export for around 10 years. The R&D team has fully learned the design concepts of Japanese and Korean hydraulic excavators, with years of sales and modification, all the product design is very mature and stable. Over 250 employees and 22 senior engineers. We export small to big excavators to over 20 countries such as Indonesia, Malaysia, Colombia, and mini excavators exported to the USA and to European countries.Wishope Hydraulic Excavators - innovative construction machinery: Digging, excavating and shoveling are the main tasks of the excavator. Whether in civil engineering digging a pit or dredging in a body of water: Our hydraulic excavator offers the optimum machine for every task.Get an overview of all micro excavators and find the right construction machine for your application. A wide range of attachments are available for our machines. Excavator buckets and shovels, vibrators and hammers, and grabs make your excavator a real working machine.China's excavators are growing at a high annual export sales rate of about 15% in the past 3 years. There are big Chinese excavator like our Dootech. After decades of technological precipitation, Chinese excavators have been able to find a balance between price and quality in a very balanced manner, so as to achieve high export sales.
Packaging & Shipping
Our Advantages
What Kinds of Excavators We Can Provide?Hydraulic excavators are divided into many types according to the tonnage of the model. 1-3 tons are called micro excavators, 6-13 tons are called small excavators, 15-39 tons are called MIDI excavators, and more than 40 tons are called large-scale excavators.We can provide all kinds of crawler excavators, including Dootech brand with Korean technology, mini long-reach excavators with Japanese technology, etc.At the same time, we also customized accessories, such as the modification of long arms, OEM amphibious excavators, and the modification of excavator attachments, the spare parts of various brands of excavators.
FAQ
1.How deep can a 6-ton excavator dig?
A 6 ton excavator is a versatile piece of machinery that is commonly used in construction and excavation projects. With its powerful engine and hydraulic system, a 6-ton excavator can dig to a depth of approximately 10-12 feet (3-3.6 meters). Its size and weight make it ideal for digging trenches, foundations, and utility lines.
The excavator's reach and digging depth are also influenced by the length and type of its arm and bucket. In addition, the type of soil and terrain also play a role in determining how deep the excavator can dig. Overall, a 6 ton excavator is a reliable and efficient machine for various excavation tasks, and its digging capabilities make it a valuable asset in construction projects.
2.What attachments are available for a 15 ton excavator?
DT-160 is a multifunctional machine that is widely used in construction as well as in the farming industry. More and more clients worldwide have delivered versatility with many attachments.
DT-160 can perform various tasks like digging, lifting, and drilling with an auger, grapple, forklift, and hydraulic breaker. The bucket attachment serves as a default configuration. You may request a different attachment, as we provide OEM solutions for you.
3.Can you provide OEM/ODM excavator service?
Dootec is an OEM/ODM excavation machine manufacturer and supplier. Suppose you need to customize the core parts or the entire machine. Our professional technical support is everything you need! We can also help you print brand logos and paint different colors.
4.How many tons is a standard excavator?
A typical standard excavator will weigh 19-24 tons, but they can range from 10 to 45 tons. Unlike smaller sizes, standard excavators are fitted with treads instead of wheels, making them good at navigating rough terrain.
5.How far can a long grapple excavator reach?

Bigger excavators can reach from 20 to 30 feet along the ground with 25 feet being the average distance. Long-reach excavators usually reach from 30 to 60 feet out. The 60-foot reach is the standard size long reach excavator. Specialized long-reach excavators (not typically available) can reach 70 to over 100 feet.
6.What do the tonnes of an excavator mean?
Excavators are known for their tonnes, which corresponds to their operating weight. For example, 23 tonnes of excavators' operating weight is 230,000kg. Depending on user preferences and needs, different attachments can be matched with the excavator, Make sure to read specifications and manuals to better understand its associated maximum capacity.
