High Quality Metal Gear Driven Variable Round Column Vertical Drilling Machine Drilling Capacity 32mm Tapping Fuction Z5032V Z5040V Z5030A Z5035A Z5050A Z5040A

Product Description

Product Description
High Quality Metal gear driven Variable round column vertical drilling machine drilling capacity 32mm tapping fuction Z5032V Z5040V Z5030A Z5035A Z5050A Z5040A Deep hole hydraulic vertical floor type drilling machine for home/factory SP3110S bench floor drill press 32mm Floor vertical Drill Press Floor Vertical Type Drilling Machine belongs to one of our most economic manual bench drill press. It is new condition not used bench drill press/woodworking drilling machine. And it is small in size and delicate in design. This woodworking drilling machine is made in China. heavy duty big pillar drill press machine drillling machine for metal working SP5232A 1100W 1500w The main features are as below
Quick Detais
1.Drilling capacity:32mm
2.Motor power:1100W/1500W
3.Class speed:5/12/16
4.Table size:320*320mm
Advantages
1. Adjustable depth stop
2. Quiet belt drive operation
3. FWD/REV toggle switch
4. Headstock runs in precision-bearings
5. Speeds allow selection of optimum speeds at the work piece
1. Keyed safety switch prevents accidental starting2.16-speed settings to accommodate various materials and thicknesses3.290mm cast iron worktable, height adjustable4. Rack and Pinion table elevation makes adjusting the table height easy and accurateScaled steel fence helps align, guide and brace work pieces, stop block for repetitive drilling jobs
Product Parameters

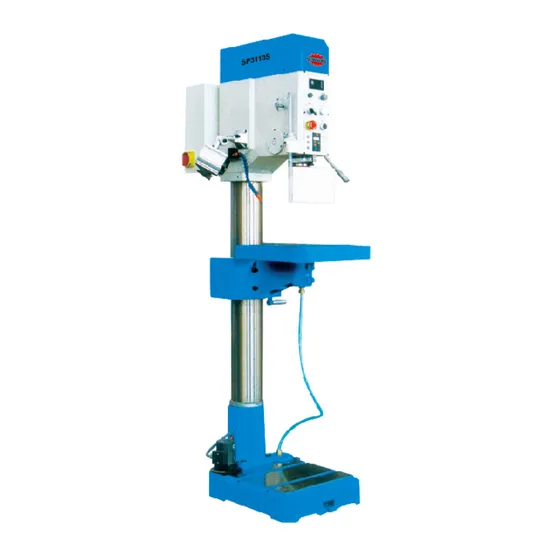

Model SP3110S Max. Drilling Capacity 32 mm Spindle Stroke 115 mm Distance from spindle axis to generating line of column 290 mm Max. distance from spindle nose to working surface of work table 790 mm Max. distance from spindle nose to working surface of base plate 1,300 mm Max. adjustment of work table and table rost 790 mm Spindle bore taper MT3 Spindle Speed L 55-350 r.p.m W 350-2,300 r.p.m Diameter of column Φ120 mm Effective working area of table 320x320 mm Effective working area of base plate 380*380 mm Dimension of T-slot of table and base plate 2-12 mm Swivel of table and table rest ±45 Motor Power 1.1 KW Voltage Customized Pump motor power 0.06 KW Net Weight 310 kg Packing Size (LxWxH) 900*590*1980mm Gross Weight 360 kg

Company Profile
As the professional and experienced manufacturer of lathe, mill , drill , cnc and other tools ,Shanghai SUMORE Industrial Group has been in this filed for more than 20 years.
We have got the certificates of CE, GS ,Rohs ,UL ,etc . Also we have been in business with GSK ,Siemens ,Faunc and other famous companies within 50 countries all over the world.
Whether you need the standard or the customerised products , please contact us directly . Our professional and experienced engineers and after sale service team will meet your needs.
Hope to cooperate with you!
