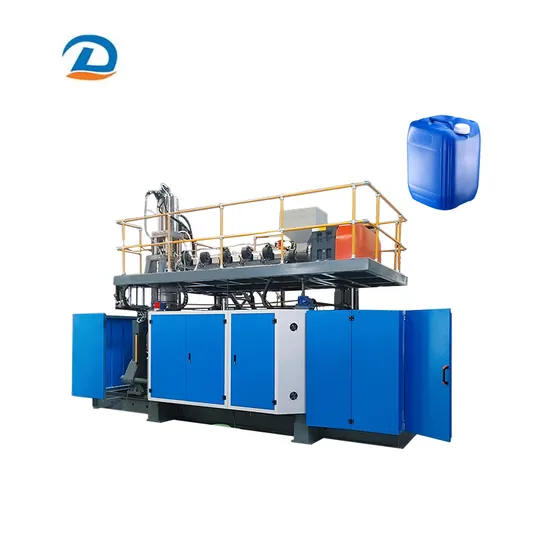

Plastic Bottle Canister Making Drum Extrusion Blow Molding Machine

Product Description

Extrusion Blowing Mold Making Machine
producingPP/PE/PU/PC/PVC/PETG/HDPE/LDPE/ABS/..... plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc. Beverage bottle, cosmetic bottle, medicine bottle, jar etc.
Product Description
Product Parameters

Model	YSD-80	YSD-90	YSD-100	YSD-110	YSD-120
Maximum product volume L	30	50	100	160	350
Screw diameter mm	80	90	100	110	120
Screw long diameter ratio	1:26
Extruder motor power KW	22	30-35	37-45	45-75	75
Plasticization capacity kg/h	85-100	120-150	170-200	200-250	250-300
Number of jobs	single station
Lock mode form	Servo hydraulic pressure
Wall thickness controller	100
Storage tank L	5	7.5	10	12	16
Heating section	6-10	9-13	9-13	9-13	9-13
Heating power Kw	15	20	38	42	52
Modular rorce(KN)	160	200	430	600	800
Servo motor(KW)	11	11	11	18.5	22
Template size(width * height) mm	Depends on product
Template openg mm	700	1200	1400	600-1400	500-1400
Maximum open and closed mode travel mm	350	900	900	900	900
Squeeze exit die maximum diameter mm	Depends on product	100-300	Depends on product
Gas source pressure Mpa	0.8
Source displacement m/min	0.8	1.0	1.2	1.6	2.0
Cooling water usage Mpa	0.6
Size M	3.4*1.9*2.0	3.9*2.5*2.6	4.2*2.5*2.6	6.2*2.7*4.4	6.8*3.5*5.0
Total installed power km	38	65	90	110	155
Total weight of machine T	12	14	16	20	26

Detailed Photos
Company Profile
FAQ
1.How can i get the price?
We usually quote within 2 hours after we get your inquiry (Even in weekend and holidays,we are still
trying to approach you at earliest). If you are very urgent to get the price, please call us or contact us in other ways so that
we can offer you a quote.
2.Do you have stock ?
Most of machines we have stock,we execute 24 hours dispatch rules.
3.What is your lead time?
It depends on the order quantity .But 10 days are the maximum.
4.What is your payment term?
T/T,Western Union,MoneyGram,and Paypal.This is negotiable.
5.Do you accept ****** trade assurance ?
Yes, we accept.
6.Can I get the shipping freight from you ?
Yes, we can help to ask the best reasonable prices.
7.What is the shipping method?
It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect).Please confirm with us before placing orders.
8.How do you make our business long-term and good relationship?
a. We keep good quality and competitive price to ensure our customers benefit ;
b. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come
from.
