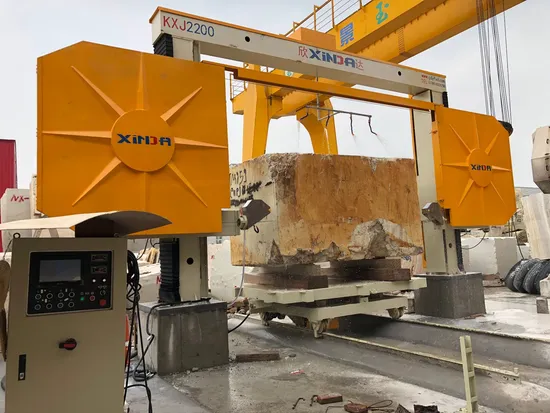

Block  wire saw machine with ce certificate

Block wire saw machine with ce certificate

US$35,000.00-40,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
KXJ1500/KXJ1800/KXJ2200
Source Voltage
380V
Automation
Automatic
Cutting Ability
High Speed
Control
PLC
Certification
ISO, CE
Conditiaon
New
Container Type
40hq(Hc)
Transport Package
by Film Package
Specification
Max cutting size: 3600× 2000× 2100mm
Trademark
XINDA
Origin
Yunfu City, China
HS Code
84641090
Production Capacity
1000

Product Description

Function: The machine is used for cutting slabs and squaring block.
Brief introduction of wire saw machine:
1, The machine has steady structure, including top beam, two upright column, square box, hydraulic station tensioning unit, two big flywheel. Left side install a driven big flywheel and hydraulic station tensioning unit. Tensioning device controls diamond wire tension or loosen, meanwhile keep the diamond wire pressure. Right side install a driving flywheel and main motor, it can control the speed of wire between 0-35m/s via inverter. The machine can cut different kind of stone material.
2, In order to reduce the diamond wire wear and keep the diamond wire steady, the machine are equiped with two guide wheels (Diameter: 300mm).
3. Trolley move by Screw rod. Screw rod is soaked with oil in the protective cover of screw rod(Patent product).
4. The machine will stop automatically and display failures on the screen if wire broken.
5. The machine has a water spray system. If no water or not enough water, the machine will automatically stop.
Technical parameters:
Model
Parameters
KXJ1500 KXJ1800 KXJ2200
Diameter of Wire Φ8-Φ11 Φ8-Φ11 Φ8-Φ11
Length of Wire 17300mm 19300mm 21350mm
Speed of Wire 0-40m/s 0-40m/s 0-40m/s
Worktable Size 1360×2000mm 1800×2000mm 3000×2000mm
Worktable Whether Revolve NO(Optional) NO(Optional) YES
Worktable Load Capacity 20T 30T 50T
Range of Cutter Movement 1600mm 1900mm 2200mm
Max Cutting Size(L×W×H) 3500×2000×1500mm 3600×2000×1800mm 3600×2000×2100mm
Production Efficiency 1-2m²/h(marble) 0.5-2m²/h(granite) 1-2m²/h(marble) 0.5-2m²/h(granite) 1-2m²/h(marble) 0.5-2m²/h(granite)
Main Motor Power 11KW 11KW 15KW
Water Consumption 3m³/hour 3m³/hour 3m³/hour
Overall Dimension 8200×5700×4300mm 8800×6800×4500mm 9800×6800×5400mm
Diameter of Guide Wheel Φ300mm Φ300mm Φ300mm
Total Power 19.94KW 19.94KW 23.94KW
Total Weight 7T 9T 12T

Schematic Drawing:
Electric Cabinet& Operation Panel Photos:
Exhibition:
FAQS:
1) Payment:
30% of total value (down payment)for placing an order, we start to produce the machine→70% (balance payment)before shipment
2) Delivery time:
The wire saw machine can be shipped within 15 working days when received down payment.
3) Guarantee period:
The machine is guaranteed for one year. The man-made accident and the Lightning, Flood, earthquake, wrong voltage are not covered by the warranty.
4)How about our service?
1. Six engineers are special for installation service for oversea customer. If customer needs our installation service, we are available to dispatch any time.
2. Technical Support 24 hour on line.
