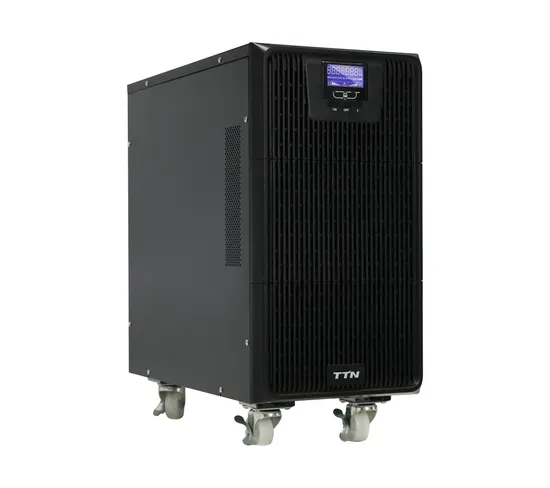

Ttn Hot Sell Wholesale Price Offline UPS Power Bank Supply

Ttn Hot Sell Wholesale Price Offline UPS Power Bank Supply

US$146.00
5-29 Pieces
US$135.00
30-99 Pieces
US$132.00
100-1,999 Pieces
US$130.60
2,000+ Pieces

Basic Info.

Model NO.
AF1K
Protection
Over Load/ Current/Voltage, Short Circuit
Application
Computers, Data Rooms, Communications, Servers
Classification
Lighting/Power
Standby Time
Standard Machine
Standby UPS
Century Star Series
Output Capacity
Large Type
Equipment Mode
Centralized Model
Brand
Ttn
Capacity
1kVA-10kVA
Waveform
Pure Sine Wave
Input Voltage Range
90-285VAC or 120-275VAC
Frequency Range
40Hz ~ 70Hz/46Hz ~ 54Hz
Power Factor
0.99 Nominal Voltage(100% Load)
Output Voltage
100/110/115/120/127VAC or 200/208/220/230/240VAC
AC Frequency Range(Synchronized Range)
40-46 Hz or 46~54 Hz
Frequency Range(Batt. Mode)
50 Hz+-0.25Hz or 60Hz+-0.3 Hz
Voltage Regulation
+-1%
Current Crest Ratio
3 : 1
Transport Package
Standard Export Packing
Specification
CE ISO: 9001
Trademark
TTN
Origin
Zhejiang China
HS Code
850440200
Production Capacity
20000pieces Per Month

Product Description


High Frequency UPS
Model AF1K AF1KL AF2K AF2KL AF3K AF3KL AF6K AF6KL AF10K AF10KL
Capacity 1KVA/800W 2KVA/1.6KW 3KVA/2.4KW 6KVA/4.8KW 10KVA/8KW
Battery voltage 12V7AH*2 36VDC 12V7AH*4 72VDC 12V7AH*6 96VDC 12V7AH*16 192VDC 12V7AH*16 192VDC
Size, D*W*H(mm) 350X144X230 350X144X230 425X190X328 425X190X328 425X190X328 425x190X328 533X260X560 425X190X328 533X260x560 533X260x560
Net weight(kgs) 9 6 18.4 9 23.4 10 55 12.2 62 21
Input
Input voltage 90V-285Vac 120-275VAC
Frequency range 40Hz-70Hz 46-54Hz or 56-64Hz
Phase Single phase with ground
Power factor ≥0.99 @ 100% Load
Output
Output voltage 100/110/115/120/127 VAC or 200/208/220/230/240VAC 208/220/230/240VAC
AC voltage regulation +-1%
Frequency range(synchronize range) 40-46Hz or 54-60Hz 46-54Hz or 56-64Hz
Frequency range (batt. mode) 50Hz+-0.25Hz or 60Hz+-0.3Hz 50Hz or 60Hz+-0.1Hz
Current crest ratio 3:01
Output current 4.5A
9.1A		 9.1A 13.6A 27A 45A
Harmonic distortion ≤3% THD (Linear load)
≤6% THD (Non-linear load)		 ≤3% THD (Linear load)
≤5% THD (Non-linear load)
Overload 105%+-5%<Load≤125%+-5%: after 50secs turn to bypass and alarm; 125%+-5%<Load≤150%+-5%: after 25secs turn to bypass and alarm; load>150%+-5%: after 300ms turn to bypass and alarm. 105%+-5%<Load≤125%+-5%: after 1mins turn to bypass and alarm; 125%+-5%<Load≤135%+-5%: after 30secs turn to bypassand alarm; load>135%+-5%: after 300ms turn to bypass and alarm.
Transfer time /AC mode to batt. mode Zero
Waveform(batt. mode) Pure Sinewave
Efficiency
Battery mode 85% 92% 92%
Battery
Battery type 12V/7 Ah Depending on applications 12V/7 Ah Depending on applications 12V/7 Ah Depending on applications 12V/7 Ah Depending on applications 12V/7 Ah Depending on applications
Battery numbers 2 4 6 16 16
Recharge time 8 hours recover to 90% capacity 9 hours recover to 90% capacity
Charging current 1A 6.5A 1A 5.5A 1A 5.5A 1A 5.5A 1A 5.5A
Environment
Operation humidity 20-90% RH @ 0-40ºC Non-condensing 0-95% RH @ 0-50ºC Non-condensing 0-95% RH @ 0-40ºC Non-condensing
Noise level Less than 50dBA @ 1 Meter Less than 55dBA @ 1 Meter Less than 58dBA @ 1 Meter
Management
Smart RS-232 Support windows2000/2003/XP/Vista/2008,Windows7/8,Linux,Unix and MAC
Optional SNMP Power management from SNMP management and web browser
