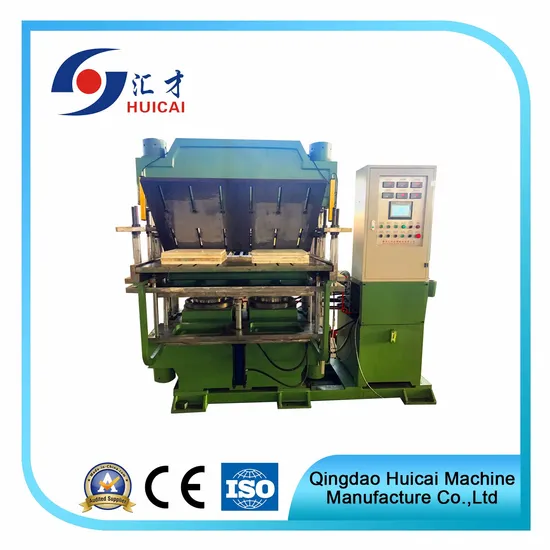

High Quality Factory Price Molding Rubber Fins Machine

Product Description

1. High speed open/close mold, high production efficiency, low mold-locking speed, protect mold.
2. Adopt new sealing material, excellent seal and long life.
3. Matching-advanced oil way reduces energy consumption.
4. Structure is simple; application is wide and easy to be operated

Type	XLB-D(Y)350x350x2	XLB-D(Y)400x400x2	XLB-D(Y)500x500x2
(MN)Nominal mounding power	0.25	0.5	0.6,0.8
Working layer number	2	2	2
(mm)Piston stoke	250	250	250
(Mpa)Plate pressure	2.04	3.13	3.2
(KW)Main moter power	1.5	2.2	2.2
(mm)Plate chearanle	125-200	125-200	125-200
Calefaction manner	Electricity (Oil)	Electricity (Oil)	Electricity (Oil)
Configuration	Column, Frame	Column, Frame	Column, Frame
(KW)Electric pipe heating power	1.8	2.7	3.0
(V)Voltage	220or as requirement	220or as requirement	220or as requirement
Control mode	Manually or automatically	Manually or automatically	Manually or automatically

Type	XLB-D(Y)450x450x2	XLB-D(Y)500x1000x2	XLB-D(Y)750x850x1
(MN)Nominal mounding power	1.00	1.00	1.60
Working layer number	2	2/4	2
(mm)Piston stoke	300	300	300
(Mpa)Plate pressure	4.94/2.78	2.00/2.08	2.51/2.50
(KW)Main moter power	2.2	2.2	2.2
(mm)Plate chearanle	125-250	125-250	125-250
Calefaction manner	Electricity (Oil)	Electricity (Oil)	Electricity (Oil)
Configuration	Column, Frame	Column, Frame	Column, Frame
KW	2.7/3.6	5.4/4.8	4.8/4.8

We can also design and produce according to customer's requirement. If you are interested in our products or have any questions, please contact us freely. We will try our best to meet your requirement in the first time
Notice:According to the different models have different price, please send your need to type and quantity of the product.

(1) Qingdao HUICAI Machinery Manufacturing Co., Ltd. was founded in 1996;
(2) 100% of the factory, to meet all your requirements;
(3) CE, ISO9001 certification;
(4) a one-year warranty and long-term technical support;
(5) Supply of all kinds of rubber machinery: vulcanizing machine, rubber mixer, broken plastic machine,
refiner, rubber kneading machine, rubber injection molding machines, vacuum hot press molding machine, hydraulic machine, rubber tableting machine, jaw vulcanizing machine malfunction, pre-curing equipment, hydraulic tire curing machine, automatic tube curing machine, foam machine; conveyor belt production line, sidewall belt production line, molding line conveyor; batch closed cooler (cold); cut plastic machine;
(6) The company has import and export rights, the products are exported to countries and regions in the United States, South Korea, Japan, Thailand, Germany;
(7) 2012 was awarded the "AAA grade credit enterprise" and "integrity enterprises in Qingdao City," the title.
