OEM As1576 Australian Standard Adjustable Mobile Rolling Steel / Aluminum Layher Ringlock Scaffolding System Aluminium Scaffold for Construction

Product Description

OEM As1576 Australian Standard Adjustable Mobile Rolling Steel / Aluminum layher Ringlock Scaffolding System Aluminium Scaffold for ConstructionProduct Description

Name	Adjustable Aluminum Ringlock Scaffolding
Category	Aluminum Ringlock Scaffolding
Material	Aluminum 6082-T6
Tubing Diamater	Φ48mm
Applications	Indoor and Outdoor Building Maintenance. It can be used for Boiler Plants, Tanks, Pipe Lines, Monuments, Restaurants in high places, around machines, cruises and under bridges.
Performance	Simple and Flexible. All-round multi-directional aluminum alloy scaffold. Applies to any heights, any venue and any complex engineering conditions.

Aluminum Ringlock Scaffolding System joint structure is reasonable, simple production process, easy operation, wide range of use, compared with traditional scaffolding, Aluminum Ringlock Scaffolding System has the following remarkable features:

Ringlock Features	Details
Easy to Stand	Just insert the plugs at both ends of the horizontal rod into the corresponding taper holes on the vertical rod, and then tap it tightly.
Simple	Fast and simple to erect with only three component fastenings.
Light Weight	Manufactured by aluminum alloy, Aluminum Ringlock scaffolding System is lighter than a standard steel scaffolding tube.
Economical	Aluminum Ringlock scaffolding System with only three main components.
Fast	30%-50% faster than traditional scaffolding.
Versatile	With 500mm intervals on the verticals, Aluminum Ringlock scaffolding System is extremely versatile for Facade, Shoring Structures, Circular, Birdcages, Staircases, Mobile Towers and etc.
Flexible	0.6m to 3.0m bays using boards or battens.

Product testing

code	name	length	weight/kg	Materil	band	standard
UTM-ARS-133-1000	aluminium ringlock standard with spigot	1000mm	2.43	6082-T6	UTM	AS1576
UTM-ARS-133-1500	aluminium ringlock standard with spigot	1500mm	3.41	6082-T6	UTM	AS1576
UTM-ARS-133-2000	aluminium ringlock standard with spigot	2000mm	4.38	6082-T6	UTM	AS1576
UTM-ARS-134-1000	aluminium ringlock ladger	1m	2.31	6082-T6	UTM	AS1576
UTM-ARS-134-2000	aluminium ringlock ladger	2m	3.7	6082-T6	UTM	AS1576
UTM-ARS-134-3000	aluminium ringlock ladger	3m	4.68	6082-T6	UTM	AS1576
UTM-ARS-135-2000*2000	aluminium ringlock brace	2m*2m	4.96	6082-T6	UTM	AS1576
UTM-ARS-135-2000*3000	aluminium ringlock brace	2m*3m	5.81	6082-T6	UTM	AS1576

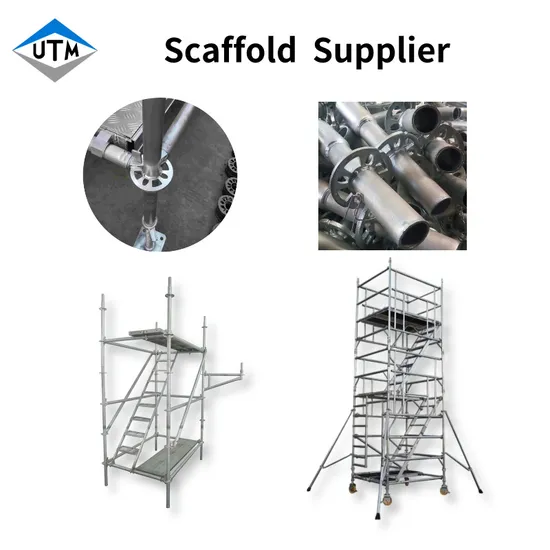

Vertical standard for ringlock scaffolding. It is made of lightweight aluminium. Spigot built-in, for connecting multiple standards.Rosettes every 1/2 meter for maximum versatility. The aluminum ringlock standard is lightweight but strong.
Ledgers are the horizontal members of Aluminium Ringlock scaffolding. They provide horizontal support for loads and planks. Ledgers can also be used as mid rail and top or hand guard rails.
Diagonal braces are used for the lateral bracing Aluminium Ring-Lock scaffolding. Bay braces can also be used as obtuse angle mid rail and top or hand guard rails in conjunction with Ring-Lock Scaffolding stair systems.
Ringlock scaffolding is known for its flexibility and adaptability, making it suitable for complex and challenging construction projects. Our ringlock scaffolding systems are engineered to provide superior stability and load-bearing capacity. With their modular design, they can be quickly and easily assembled, ensuring efficient installation and dismantling on job sites. We prioritize safety and quality, and all our ringlock scaffolding components undergo rigorous testing to meet industry standards.Nanjing Uni-Tech Metalwork Company Ltd offers reliable and durable ringlock scaffolding solutions that are trusted by construction professionals worldwide.
Ringlock scaffolding system is a new type of braced scaffolding system, which breaks through the traditional scaffolding fasteners and bolts fastening connection, using the pre-welded joint device at both ends of the crossbar and the joint device on the diagonal bar, the eight-hole disc welded on the upright bar, and using the principle of gravity wedge self-locking pins to achieve a complete replacement of the steel pipe and fasteners, connecting the crossbar with the upright bar and the diagonal bar, to form a flat triangular stable structure. Then the plane structure is combined in three dimensions to form a stable space structure. It has the advantages of high safety performance, labour saving, easy to set up and dismantle, saving the usage, and beautiful overall appearance.
Main components of ringlock scaffolding*Ringlock Standard,Ringlock Ledger,Ringlock Brace,Ringlock Side Bracket,Ringlock Intermidiate Transom,Ringlock Base Collar,Ringlock Toe Board,Rosette and Wedge,scaffolding plank,Base jack
Ringlock Side Bracket

Code	Name	Length	Surface Treatment	weight/kg	Materil	Band	Standard
UTM-RLS-150-1B	Ringlock Side Bracket	1 board	galvanized	5.20	Q235	UTM	EN74/BS1139/AS1576
UTM-RLS-150-2B		2 board		8.10
UTM-RLS-150-3B		3 board		11.40

Ring lock side brackets form a stabilized triangle with connection portion of rosette design. Adds adjustable work height & space to scaffolding.
The application scenarios of ringlock scaffolding system
Ringlock scaffolding system is widely used in general tunnel and other bridge engineering, viaduct engineering, plant, elevated water tower, power plant, oil refinery and special workshop support design, but also suitable for flyover, cross-shed, storage shelves, chimneys, water tower and internal and external decoration, large concert stage, background stands, Bleachers, bleachers, molding bleachers, stair systems, party stage construction, sports stands, etc.
Certifications
Our Scaffolding Products
Company Profile
Company Profile
Nanjing Uni-Tech Metal Work Co., Ltd. (U T M) is a scaffolding production and sales enterprise. We have 16 years of industry experience. Our products have EN BS and AS certificate qualifications and are exported to the United States, the United Kingdom, Australia, the United Arab Emirates, and Saudi Arabia. Singapore and other countries.
Our main products are ringlock and aluminium scaffold systems and their accessories. We have extensive experience in seating system and edge protection, we provide design solutions and suggestions.We also make scaffold couplers, cuplock scaffolding, kwikstage scaffolding ,frames,, props, screw jacks and other relative products.
We always pay attention to the needs of our customers, treat every order with a strict attitude, and control the entire process from raw material supply to cutting, stamping, welding, surface treatment, packaging, and packing to ensure quality and complete each order on schedule.
Our Advantages
One-Stop ServiceThe company provides one-to-one service to customers, receives customers smoothly 24 hours a day, gives answers and makes records when receiving customers' demands, regularly revisits customers' product problems, and guides product installation online in the later stage.Packaging & Shipping
FAQ
What about after service ?Our all prducts are fully tested before despatch, and we have traceability system. Please contact our after-service team once you have any product problem with some photos and videos to help us analyze them. We can make new ones to replace or reasonable compensation on both agreement.
What are the payment terms you can accept ?T/T and L/C, others are negotiable.
What is your MOQ ?Normally we accept one full container, but for special products we are happy to communicate with customer about order quantity.
Can we customize our company logo or name on products?Yes, we can make permanent logo or sticker on products as the requirement from the customer.
How fast can you finish the order ?U T M company always figures out a schedule that meets the customer needs once the order is confirmed. And all production plan will be worked out as schedule.
Are you able to provide engineered drawings if needed ?Yes, U T M company has professional engineers who are capable of designing the most challenging scaffolding access solutions.
