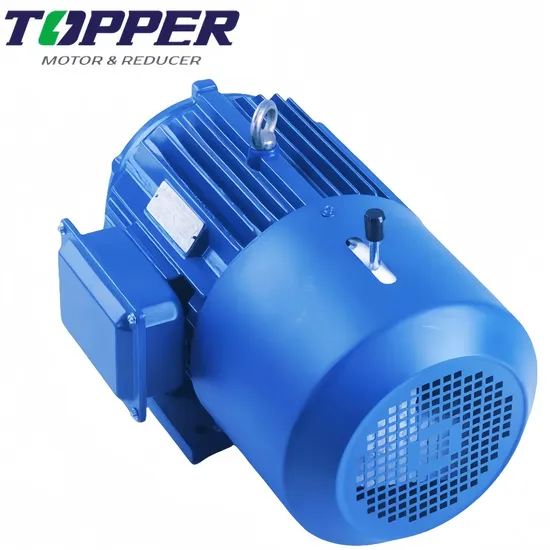

Yej Series Electromagnetic Brake 0.55kw~110kw Induction Electrical Motor/Electromagnetic-Brake Motor

Product Description

Product Description YEJ2 series electromatic-brake motors are improved products on the base of YEJ series. The technical properties of its motor conform to htere quirements of Y2 series. The performance of the brake assembly are improved. YEJ2 can make action proptly when the power of electric motor is off.
Motors of this series can continuously run at the rated power under the following conditions:
1. Altitude: Above sea level, not exceeding 1000m.
2. Ambient temperature: It varies with seasons but not exceeding +40° C
3. Voltage: 220/380V, 380/660V
4. Frequency: 50Hz, 60Hz.
5. Connection: Y-Connection for 3kw and below whereas; Delta-connection for 4 kw and above.
6. Duty: Continuous(S1)
7. Insulation Class: B, F
8. Protection: IP44, IP55 or IP54

Technical data-YEJ series motor-2 poles -380v/50HZ
type	Rated output		Full Load				Static braking torque	Max.braking time at No-load	Brake power
			Speed	Input Current	Efficiency	PowTypeer factor
	KW	HP	RPM	Amp	Eff.%	P.F	N.m	S	W
YEJ80M1-2	0.75	1.0	2825	1.81	75	0.84	7.5	0.20	50
YEJ80M2-2	1.1	1.5	2825	2.52	77	0.86	7.5	0.20	50
YEJ90S-2	1.5	2.0	2840	3.44	78	0.85	15	0.20	60
YEJ90L-2	2.2	3.0	2840	4.83	80.5	0.86	15	0.20	60
YEJ100L-2	3	4.0	2870	6.39	82	0.87	30	0.20	80
YEJ112M-2	4	5.5	2880	8.17	85.5	0.87	40	0.25	110
YEJ132S1-2	5.5	7.5	2900	11.10	85.5	0.88	75	0.25	130
YEJ132S2-2	7.5	10.0	2900	15.00	86.2	0.88	75	0.25	130
YEJ160M1-2	11	15	2930	21.80	87.2	0.88	150	0.35	150
YEJ160M2-2	15	20	2930	29.40	88.2	0.88	150	0.35	150
YEJ160L-2	18.5	25	2930	35.50	89.0	0.89	150	0.35	150
YEJ180M-2	22	30	2940	42.20	89.0	0.89	200	0.35	150
YEJ200L1-2	30	40	2950	56.90	90.0	0.89	300	0.45	200
YEJ200L2-2	37	50	2950	69.80	90.5	0.89	300	0.45	200
YEJ225M-2	45	60	2960	83.90	91.5	0.89	450	0.45	200
Technical data-YEJ series motor-4 poles -380v/50HZ
Type	Rated output		Full Load				Static braking torque	Max.braking time at No-load	Brake power
			Speed	Input Current	Efficiency	Power factor
	KW	HP	RPM	Amp	Eff.%	P.F	N.m	S	W
YEJ80M1-4	0.55	0.75	1390	1.51	73.0	0.76	7.5	0.20	50
YEJ80M2-4	0.75	1.0	1390	2.01	74.5	0.76	7.5	0.20	50
YEJ90S-4	1.1	1.5	1400	2.75	78.0	0.78	15	0.20	60
YEJ90L-4	1.5	2.0	1400	3.65	79.0	0.79	15	0.20	60
YEJ100L1-4	2.2	3.0	1420	5.03	81.0	0.82	30	0.20	80
JET100L2-4	3.0	4.0	1420	6.82	82.5	0.81	30	0.20	80
YEJ112M-4	4.0	5.5	1440	8.77	84.5	0.82	40	0.25	110
YEJ132S-4	5.5	7.5	1440	11.60	85.5	0.84	75	0.25	130
YEJ132M-4	7.5	10.0	1440	15.40	87.0	0.85	75	0.25	130
YEJ160M-4	11	15	1460	22.60	88.0	0.84	150	0.35	150
YEJ160L-4	15	20	1460	30.30	88.5	0.85	150	0.35	150
YEJ180M-4	18.5	25	1465	35.90	91.0	0.86	200	0.35	150
YEJ180L-4	22	30	1465	42.50	91.5	0.86	200	0.35	150
YEJ200L-4	30	40	1470	56.80	92.2	0.87	300	0.45	200
YEJ225S-4	37	50	1475	70.40	91.8	0.87	450	0.45	200
YEJ225M-4	45	60	1475	84.20	92.3	0.88	450	0.45	200
Technical data-YEJ series motor-6 poles -380v/50HZ
Type	Rated output		Full Load				Static braking torque	Max.braking time at No-load	Brake power
			Speed	Input Current	Efficiency	Power factor
	KW	HP	RPM	Amp	Eff.%	P.F	N.m	S	W
YEJ90S-6	0.75	1.0	910	2.25	72.5	0.7	15	0.2	60
YEJ90L-6	1.1	1.5	910	3.16	73.5	0.72	15	0.2	60
YEJ100L-6	1.5	2.0	930	3.97	77.5	0.74	30	0.2	80
YEJ112M-6	2.2	3.0	940	5.61	80.5	0.74	40	0.25	110
YEJ132S-6	3.0	4.0	960	7.23	83.0	0.76	75	0.25	130
YEJ132M1-6	4.0	5.5	960	9.40	84.0	0.77	75	0.25	130
YEJ132M2-6	5.5	7.5	960	12.60	85.3	0.78	75	0.25	130
YEJ160M-6	7.5	10.0	970	17.00	86.0	0.78	150	0.35	150
YEJ160L-6	11	15	970	24.60	87.0	0.78	150	0.35	150
YEJ180L-6	15	20	970	31.40	89.5	0.81	200	0.35	150
YEJ200L1-6	18.5	25	975	37.70	89.8	0.83	300	0.45	200
YEJ200L2-6	22	30	975	44.60	90.2	0.83	300	0.45	200
YEJ225M-6	30	40	980	59.50	92.2	0.85	450	0.45	200

Detailed Photos
Our Advantages We have more than 30years on all kinds of ac motors and gearmotor ,worm reducers producing ,nice price What we do:1.Stamping of lamination2.Rotor die-casting3.Winding and inserting - both manual and semi-automatically4.Vacuum varnishing5.Machining shaft, housing, end shields, etc…6.Rotor balancing7.Painting - both wet paint and powder coating8.assembly9.Packing10.Inspecting spare parts every processing11.100% test after each process and final test before packing.,
FAQ Q: Do you offer OEM service?A: YesQ: What is your payment term?A: 30% T/T in advance, 70% balance when receiving B/L copy. Or irrevocable L/C.Q: What is your lead time?A: About 30 days after receiving deposit or original L/C.Q: What certifiicates do you have?A: We have CE, ISO. And we can apply for specific certificate for different country such as SONCAP for Nigeria, COI for Iran, SASO for Saudi Arabia, etc.
