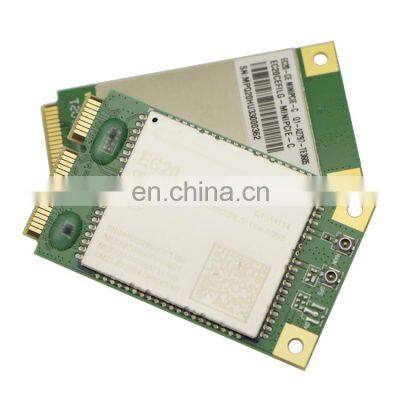

EC20 R2.1 IoT M2M 4G Module Optimized LTE Cat4 Module, EC20CEFILG Mini PCIe EC20-EC EC20CEFILG-128-SGNS

Product Description

Product Description
DescriptionOverviewEC20 R2.1 Mini PCIe is an LTE category 4 module adopting standard PCI Express® MiniCard form factor (Mini PCIe). Adopting the 3GPP Rel.11 LTE technology, it is optimized specially for M2M and IoT applications, and delivers 150Mbps downlink and 50Mbps uplink data rates. Designed in the compact and unified form factor, EC20 R2.1 Mini PCIe is compatible with UMTS/HSPA+ UC20 Mini PCIe module, multi-mode LTE Cat 3 EC20 Mini PCIe and Cat 4 EC20 R2.0 Mini PCIe/EG25-G Mini PCIe module, which allows for flexible migration among them in design and manufacturing. Meanwhile, it is backward-compatible with existing EDGE and GSM/GPRS networks, ensuring that it can be connected even in remote areas devoid of 4G or 3G coverage. EC20 R2.1 Mini PCIe supports multiple-input multiple-output (MIMO) technology. The use of multiple antennas at the receiver end at the same time and on the same frequency band greatly minimizes errors and optimizes the data speed. The module also combines high-speed wireless connectivity with embedded multi-constellation high-sensitivity GNSS (GPS, GLONASS, BeiDou, Galileo, QZSS) receiver for positioning. A rich set of Internet protocols, industry-standard interfaces and abundant functionalities (USB drivers for Windows 7/8/8.1/10, Linux, Android/eCall*) extend the applicability of the module to a wide range of M2M applications such as CPE, industrial router, industrial PDA, rugged tablet PC, video surveillance and digital signage. Key Benefits● LTE category 4 module optimized for M2M and IoT applications● Worldwide LTE, UMTS/HSPA+ and GSM/GPRS/EDGE coverage● Multi-constellation GNSS receiver available for applications requiring fast and accurate fixes in any environment● Feature refinements: supports DFOTA, eCall* and DTMF● MIMO technology meets demands for data rate and link reliability in modem wireless communication systems SPEC: Variant for China/IndiaEC20-CE R2.1 Mini PCIeLTE FDD: B1/B3/B5/B8LTE TDD: B34/B38/B39/B40/B41TD-SCDMA: B34/B39WCDMA: B1/B8CDMA: BC0GSM: 900/1800MHzwww.hurryup.en.china.cnDataLTE:LTE FDD: Max 150Mbps (DL)/Max 50Mbps (UL)LTE TDD: Max 130Mbps (DL)/Max 30Mbps (UL)UMTS:DC-HSDPA: Max 42Mbps (DL)HSUPA: Max 5.76Mbps (UL)WCDMA: Max 384Kbps (DL)/Max 384Kbps (UL)TD-SCDMA:Max 4.2Mbps (DL)/Max 2.2Mbps (UL)CDMA2000:EVDO: Max 3.1Mbps (DL)/Max 1.8Mbps (UL)1X Advanced: Max 307.2Kbps (DL/UL)GSM:EDGE: Max 296Kbps (DL)/Max 236.8Kbps (UL)GPRS: Max 107Kbps (DL)/Max 85.6Kbps (UL)VoiceSpeech Codec Modes:HR/FR/EFR/AMR/AMR-WBEcho Arithmetic:Echo Cancellation/Noise ReductionAudio:Digital Audio and VoLTE (Voice over LTE)(Optional)InterfacesUSB 2.0 with High Speed up to 480MbpsDigital Audio through PCM (Optional)1.8V/3.0V (U)SIM Card InterfaceDTR for Sleep Mode ControlUART × 1W_DISABLE# for Airplane Mode ControlLED_WWAN# for Network Status IndicationPERST# for Module ResettingRI for Host Wake-upWAKE# for Host Wake-up (Need a Pull-upResistor)Primary/Rx-diversity/GNSS Antenna InterfacesEnhanced FeatureseCall*DTMFDFOTA: Delta firmware upgrade over the air(U)SIM Card DetectionDL MIMO, support Rx-diversity AntennaGNSS: GPS/GLONASS/BeiDou/Galileo/QZSSSoftware FeaturesUSB Serial Driver:Windows 7/8/8.1/10,Linux 2.6/3.x/4.1~4.15, Android4.x/5.x/6.x/7.x/9.xRIL Driver: Android 4.x/5.x/6.x/7.x/8.x/9.xNIDS Driver: Windows 7/8/8.1/10ECM Driver: Linux 2.6/3.x/4.1~4.15Gobinet Driver: Linux 2.6/3.x/4.1~4.15Linux qmi wwan Driver:3.x (3.4 or later)/4.1~4.15Protocols:TCP/UDP/PPP/FTP/HTTP/NTP/PING/QMI/NITZ/CMUX*/HTTPS*/SMTP*/MMS*/FTPS*/SMTPS*/SSL*/FILE*General Features3GPP E-UTRA Release 11Bandwidth: 1.4/3/5/10/15/20MHzTemperature Range: -40°C ~ +80°CDimensions: 51.0mm x 30.0mm x 4.9mmMini PCIe PackageApprox. 10.6gSupply Voltage: 3.0V~3.6V, 3.3V Typ.3GPP TS27.007 and Enhanced AT CommandsApprovalsRegulatory:SRRC/NAL/CCC (China)Others:RoHS Compliant* Under DevelopmentWhy Choose UsFAQQ1. What is the minimum order quantity for your products?A1. Minimum order quantity starts from ONE piece.Q2. What's the quality of your products?A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.Q3. Is this product free of shipping or free samples?A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.All Categories4G 5G ModuleGPS ReceiverGPS AntennaGSM/LTE/WiFi AntennaGSM/LTE+GPS AntennaGNSS/GPS Module2G/3G/4G ModemGPS TrackerRF Coaxial / ConnectorSIMCard HolderSensorIC
