Stock Available Hydraulic Jacking Device Tank Lifting System for Tank Construction

Product Description

Advanced Three-Stage Hydraulic Jacking System
Product Description

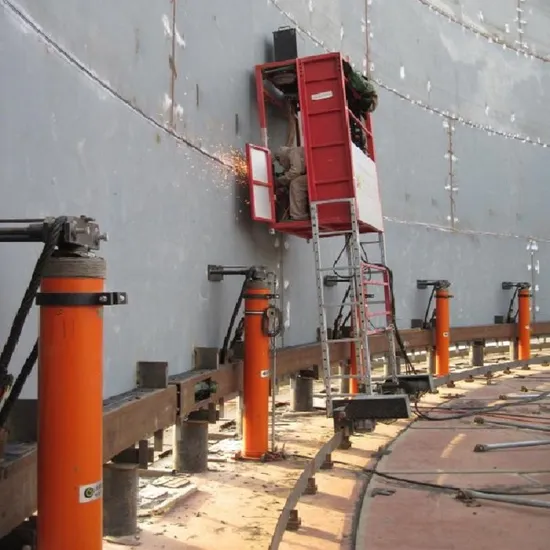

Hydraulic jacking system is mainly used for inverted construction of vertical cylindrical steel storage tank (hydraulic jacking method) and inverted construction of vertical cylindrical low-temperature storage tank in petrochemical industry.It can also be used for vertical lifting and lifting of super large objects.
Main features:
* The system consists of hydraulic pump station, cylinders, steel wire, and strokes. Easy to installation and operation;* The system utilizes PLC central control to handle lift. Each power pack is equipped with auxiliary balance device to guarantee the precision of simultaneously lifting.* Hydraulic lift pump station has subsidiary manual control and central control two operation models. The cylinder can be adjusted to lift separately or to lift with several others as one group, and multi groups can also be integrated to lift reach better precision and better welding effect.* All the cylinders are with safety valve. It can be automatically locked to avoid cylinder/ tank dropping even under situation of power off, high-pressure hose broken, burst.* The cylinder is with one high pressure hose to avoid oil leaking that usually happen by the traditional multiple hoses.Cylinder will return to initial condition by itself weight.* Stroke of Hydraulic cylinder is 1475mm, which can satisfy each annular shell with 2630plate one-step lift. Greatly reduce the time waste.* Hydraulic cylinder basic height is 2050mm, which can match automatic girth welding machine to proceed internal girth seam welding.* Module configuration, the jacking system quantity can be adjusted as per different size of tank and weight* High efficiency, each time lifting or falling down only needs around 15 minutes.* Can well cooperate with our tank welding machines, which can greatly reduce the manpower cost and reduce the construction time.
Product Parameters

	YT10-1650	YT10-1700	YT12-2700	YT18-1700	YT25-3200	YT25-2700	YT30-2700	YT30-3200	YT40-3400	YT50-2700
Maximum service pressure	28 MPa	28 MPa	13Mpa	30Mpa	20Mpa	25Mpa	24Mpa	30Mpa	20Mpa	10Mpa
Maximum output force of single hydraulic cylinder	10 t	10 t	12 t	18 t	25 t	25 t	30 t	30 t	40 t	51 t
Maximum stroke of hydraulic cylinder	1700 mm	1700 mm	2700mm	1650mm	3200mm	2700mm	2700mm	3200mm	3400mm	2620mm
Hydraulic cylinder lifting speed	90mm/min	90mm/min	160mm/min	95mm/min	180mm/min	180mm/min	110mm/min	50mm/min	80mm/min	140mm/min
Oil pump flow	2×14.4L/min	2×14.4L/min	50L/min	7.2L/min	14.4L/min	14.4L/min	7.2L/min	7.2L/min	7.2L/min	14.6L/min
Motor speed	1440 r/min	1440 r/min	1440 r/min	1440 r/min	1440 r/min	1440 r/min	1440 r/min	1440 r/min	1440 r/min	1440 r/min
Motor voltage	~380V	~380V	~380V	~380V	~380V	~380V	~415V	~380V	~380V	~380V
Motor power	2×5.5KW	2×5.5KW	15kw	4kw	5.5kw	5.5kw	4kw	4kw	4kw	5.5kw
Operating voltage of electromagnetic reversing valve	~220V	~220V	~220V	~220V	~220V	~220V	~220V	~220V	~220V	~220V
Working environment temperature for equipment	-15~50 ºC	-15~50 ºC	10-50 ºC	10-50 ºC	-10~60 ºC	10~50 ºC	-10~50 ºC	0~50 ºC	0~50 ºC	0~50 ºC
Suitable width	1500mm	1500mm	1500mm	1500mm	3000mm	2500mm	2500mm	2500mm	3050mm	2500mm

Detailed Photos
Company Profile
Wincoo Engineering Co., Ltd (WINCOO) is engaged in bringing the most suitable solutions/equipments for client, fabricators, EPC/C companies on pipe fabrication, tank construction, pipeline construction,industrial production lines, clean energy project and other industrial field.
Our Services & Strength
*We have ability of providing workable solutions to support clients to be awarded with shorter project execution time, fewer man-hour cost and higher efficiency construction/fabrication method and better quality during phase of project bidding.
*Based client's facility/site space availability, we are able to study/design and present matched configurations on project schedule, quality, cost and productivity to guarantee production pace is accordance with project requirement.
*To support project execution, we are always ready to work as fireman to give prompt supply on project materials from different consumables, tools, equipments/machines to special merchandise. With flexibility, we are also glad to perform as procurement agent in China to seek required supply resources.
FAQ
1. Support you to win the project during bidding phase. We can provide your more suitable configurations to help you shorten the constrcution time.2. We can provide all technical documents and advices to support you for construction procedure clearifications3. We can calculate the most suitable number of hydraulic jack according to the weight of the tank4. We can provide your suitable hydraulic jack accessories with much more competetive price from our long time business partner if you need.5. We can provide site people training service, and operation service or manpower service or as a subcontractor
