Preferential Price and Fast Logistics Intelligent Inertial Navigation Hi-Target V96 Rtk

Product Description

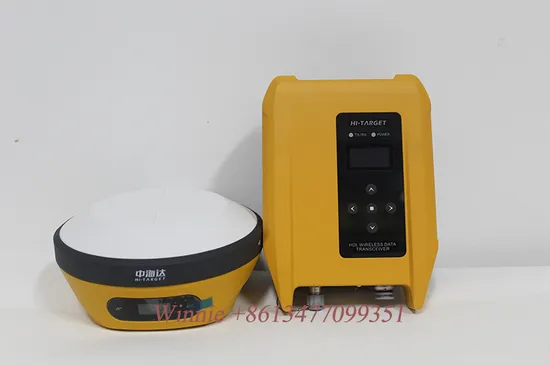

PRODUCT SHOW
PRODUT SPECIFICATION

Station differential	Support Hi-RTP satellite-based enhancement services (support L-Band)
GNSS configuration	number of channels:440
	BDS:B1,B2,B3
	GPS:L1C/A,L2C,L2E,L5
	GLONASS:L1,L2
	GALILIEO
	SBAS
	output format	ASCII: NMEA-0183,binary code
	Locating output frequency	1Hz~20Hz
	Static data format	GNS,Rinex Dual Format Static Data
	Difference scheme	CMR,RTCM2.X,RTCM3.0,RTCM3.2
	Network pattern	VRS,FKP,MAC;Support for NTRIP agreements
system configuration	OS	Linux
	start time	3s
	data storage	Built-in 8 GB ROM, Supports automatic cyclic storage of static data
[1] of accuracy and reliability	RTK positioning accuracy	plane:±(8+1×10-6D)mm (D distance between measured points)
		altitude:±(15+1×10-6D)mm (D distance between measured points)
	Static positioning accuracy	plane:±(2.5+0.5×10-6D)mm (D distance between measured points)
		altitude:±(5+0.5×10-6D)mm (D distance between measured points)
	DGPS positioning accuracy	plane:±0.25m+1ppm ;altitude:±0.50m+1ppm
	SBAS positioning accuracy	0.5m
	Initialization time	<10s
	Initialization reliability	>99.99%
Communications module	I/O port	USB Type C interface, SMA interface, Nano SIM card slot
	Cellular mobility	eSIM: built-in eSIM card (including 3 years access fee), no card can be connected,
		Built-in 4 G network communications: TDD-LTE,FDD-LTE,WCDMA,EDGE,GPRS,GSM
	WiFi communications	802.11 a/b/g/nAccess point and client mode to provide WiFi hotspot services
	bluetooth communication	Bluetooth® 4.2/2.1+EDR,2.4GHz
	Built-in radio	Built-in transceiver:
		Power :0.5 W/1W/2W Adjustable
		Spectrum :410 MHz~470 MHz
		protocol:HI-TARGET,TRIMTALK450S,TRIMMARK,TRANSEOT,SOUTH
		Number of channels:116(16 of which are configurable)
	External Radio	HDL460A Agreement External Radio
		Power :10 W\30W adjustable, frequency :403~473 MHz
		Agreement: HI-TARGET,TRIMTALK450S,TRIMMARK,TRANSEOT,SOUTH,CHC,SATEL
		Transmission rate :19.2 kbps/9.6kbps adjustable
		Channels :116(16 of which are configurable)
Sensor	Electronic bubbles	Realization of Intelligent Pairs
	Tilt measurement	Built-in high-precision inertial navigation, automatic attitude compensation, no correction, anti-magnetic interference, point-to-point measurement, accuracy of 3 cm.
User interface	Press button	Two buttons
	Display	0.94 inch 240*120 high-resolution OLED high-definition color display
	LED light	Satellite lights, signal lights
Functional applications	Advanced functions	OTG features, NFC flash, WebUI interaction, disk firmware upgrade, network relay
	Intelligent applications	Intelligent base station, intelligent voice, function self-test, battery fast charge
	Remote services	Message push, online upgrade, remote control
	Cloud services	Equipment management, location services, collaborative operations, data analysis
Physical characteristics	Host cell	The built-in high capacity lithium battery 6800 mAh/7.4V, network mobile station work 10 hours [2] hours
	Support for fast charging	Support USB PD3.0 super fast charge, charging time ≤3.5 hours. Support portable battery charging.
	External power supply	6~28 V wide DC design ,5-core interface
	Size	Φ156mmx77mm
	Weight	≤1.25 kg( batteries)
	Power consumption	4.2W
	Materials	Magnesium alloy material for housing
Environmental characteristics	Dustproof	IP68
	Prevent falling	Natural drop of 2 m height measuring rod
	Relative humidity	100% non-condensation
	Working temperature	-30ºC~+70ºC
	Storage temperature	-40ºC~+80ºC
Note :[1] measurement accuracy, reliability and initialization time depend on various factors, including satellite number, geometric distribution, observation time, atmospheric condition and multipath validity. [2] battery working hours are related to working environment, working temperature and battery life.

PACKING & SHIPPING
PAYMENT
COMPANY INFORMETION
Shanghai Hexin Survey Instrument Co., LTD has 8 years' experience in geodetic surveying and cadastration surveying, we are a professional and leading enterprise in the surveying industry in MainlandChina. We specialize in the R&D and manufacturing and sales of all kinds of surveying products, including total station, electronic theodolite, electronic distance meter, automatic level, laser level, reflector prism, surveying accessory, GPS receiver, mapping software, etc.The marketing model advocated by us is not a simple sense of "selling products", instead, pre-sales service, services during operation and after-sales service are integrated in entire operating activities. It makes the customers feel that they purchased not only a commodity, but also a professional service.We welcome new and old customers from all walks of life to contact us for future business relationships and achieving mutual success!
FAQ
Q:How to turn off voice broadcast of receiver?
A: a. Enter the WEBUI, find the voice switch in the settings page and turn it off.
b. Controller Software→Device→Device Setting, turn off the "enable voice", and click"ok"
Q: Can the base station and rover station be interchangeable?
A: The difference between the rover station and the base station is that the accessories are different, the function and hardware configuration are the same.You can use the controller to choose the working mode of the device and set it as the base station or rover station.
Q: What is CORS?
A: CORS is called a continuous operating reference station system. It can be understood as a bas e station that is erected at a fixed known point and works continuously for 24 hours and sends its own data to a specific serverthrough the network. The use of CORS operation eliminates the need for a base station, and CORS is equivalent to a base station in a normal network operation.
