Utoptek Industrial Poe Switch Manufacturer 802.3 Af/at 48V 4 8 16 24 Poe Port with 120W/240W Power Supply

Product Description

8-port 10/100/1000base-Tx to 2xGE SFP module Managed Gigabit Ethernet Poe Industrial Switch
Product Description

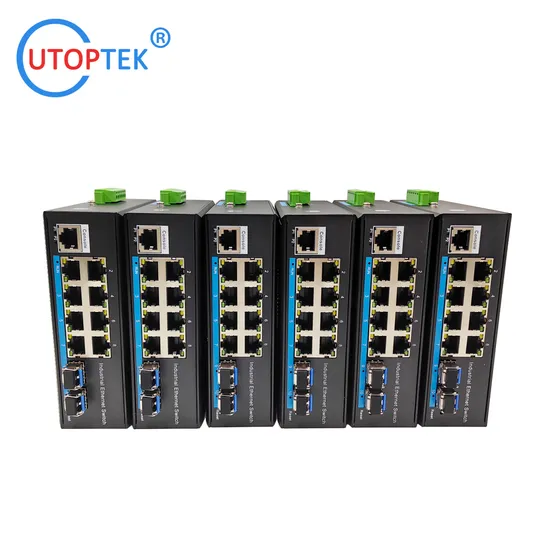

UT28GMP-SFP Industrial Ethernet Switch, provides non-blocking wire-speed performance in harsh industrial environment. It also provides 8-port 10/100/1000BASE-TX RJ45 POE+2xGE SFP delivered in an IP40 rugged, strong case with redundant power system. Its slim case is suitable for such applications as surveillance system deployments, control management and wireless service in climatically demanding environments with wide temperature range from -40ºC to 85ºC. The Managed switch provides the flexibility to all kinds of 10/100/1000Mbps Ethernet Media on RJ-45 port and performs highly stable fiber performance. It is packaged in a compact IP40 case that allows either DIN rail or panel mounting to have efficient usage of cabinet space. It provides an integrated power supply with a wide range of voltages for worldwide operation. It also offers dual-redundant, reversible polarity 12V DC to 52V DC power supply inputs for high availability applications requiring dual or backup power inputs.
Features
8-port 10/100/1000Base-Tx RJ-45 POE with auto negotiation and auto-MDI/ MDI-X function 2-port 1000Base-Fx interface SC/FC/ST/SFP Multi-Mode up to 2km Single-Mode up to 20km/40km/60km/80km 12V to 52V DC, redundant power input -40ºC to 85ºC operating temperature IP40 aluminum housing Supports 6KV DC Ethernet ESD protection Supports 6KV DC EFT protection for power line Free Fall, Shock and Vibration Stability DIN-rail design L2 management
•Support STP/RSTP/MSTP
•Web management, CLI
•IGMP snooping, QOS,VLAN,SNMP Product Parameters

Model No.	UT28GMP-SFP
10/100/1000Base-TX Port	8-Port 10/100/1000Mbps RJ-45 auto-MDI / MDI-X
PoE Specification	PoE Standard: IEEE802.3af/ IEEE802.3at
	PoE ports:1-8 port support PoE
	Power Output: Max. 15.4 watts (IEEE 802.3af) Max. 30 watts (IEEE 802.3at)
	PoE port Auto detect AF/AT devices
	Output Voltage: DC48V
	Power Pin Assignment:1/2+;3/6-
	Power Type: End-span( Mid-span optional)
1000Base-FX Port	2-port Gigabit SFP Slot
Performance Specification	Bandwidth: 38Gbps Packet Buffer Memory: 12Mbit Packet Forwarding Rate: 28.3Mpps MAC Address Table: 8K
Installation	DIN rail
Maximum Frame Size	10240bytes packet size
Flow Control	Back pressure for half duplex, IEEE 802.3x pause frame for full duplex
Enclosure	IP40 slim type metal case
LED Indicator	Power: Red Fiber: Link 2(Green) Ethernet: Yellow
Power Input	48 to 57V DC redundant power
Power Consumption	< 10W
Protection	ESD (Ethernet): 6KV DC Surge (Power): 6KV DC
Network Protocols	IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u;100Base-TX/FX; IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x;
Network cables	10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤10meter) 1000BASE-TX: Cat6 or later UTP(≤100 meter)
Industry Standard	FCC CFR47 Part 15,EN55022/CISPR22, Class A IEC61000-4-2 (ESD): ±8kV (contact), ±12kV (air) IEC61000-4-3 (RS): 10V/m (80~1000MHz) IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz) IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s)
Certification	CE FCC Rohs compliance
MTBF	>300,000hours
Dimensions (W x D x H)	143.7*104*47.7mm
Weight	Product Weight: 0.82KG Packing Weight: 0.92KG
Working Environment	Working temperature: -40~85ºC ; Storage temperature: -40~85ºC Relative Humidity: 5%~95 %( no condensation)
Warranty	1-year replacement with new item; 3-years for main parts.

Software

Port Features	IEEE 802.3x Flow control
	Interface counters
	Storm Control
Link Aggregation	Static Aggregation
	Dynamic Aggregation, LACP
	Supports up to 8 aggregation groups, each group up to 8 ports Support source MAC, destination MAC, source destination MAC, source IP, destination IP, source destination IP routing strategy
MAC Table Management	Support
Forwarding mode	Support IVL forwarding mode
Static MAC Address	Support
MAC Address Binding	Support
MAC Address Filtering	Support
Mirror	Port-based Mirror
Spanning Tree	IEEE802.1d STP
	IEEE802.1w RSTP
	IEEE802.1s MSTP
ERPS (G.8032)	Single Ring, Sub-Ring, Multi-Ring
	Load balance
	Recovery Time < 50ms
GVRP	Supported
QINQ	VLAN-based QinQ
LLDP	LLDP
	LLDP-MED
Loop Protection	Supported
VLAN	4094 VLAN
	Port-based VLAN
	GVRP
Protocol VLAN	MAC-based VLAN
	IP Subnet-based VLAN
Voice VLAN	Static entry
	LLDP-MED
Port Isolate	Support
IGMP	Snooping IGMP V1 Snooping
	IGMP V2 Snooping
	IGMP V3 Snooping
	Source Port Check
	IGMP Fast Leave
	IGMP Filter
MLD Snooping	MLD V1 Snooping
	MLD V2 Snooping
	Source Port Check
	MLD Fast Leave
	MLD Filter
Security
ACL	ACL (IP Standard ACL), IPv4/IPv6
	MAC extend ACL
	IP extend ACL
	L2, L3, L4 fields match
	log, redirection, mirroring, speed limit
QoS	QoS Class, Remarking
	SP, WRR queue scheduling
	Ingress port-based rate-limit
	Ingress priority-based rate-limit
	Egress port-based rate-limit
	Egress queue-based rate-limit
	Policy-based QoS
	Storm Control
	8 queues per port
Dot1x	Port Access Control
	User Access Control
	MAC-address Access Control
AAA	Support 802.1x
	Support RADIUS
	Supports authentication, authorization, and accounting through RADIUS server
Management
User management	Password protection
SNMP	SNMP V1/V2c/V3
RMON	Statistics Group
	History Group
	Alarm Group
	Events Group
Web management	HTTP V1.1, HTTPS
Firmware Upgrade	Reversion Upgrade
IPv4/IPv6	Support
CLI	Support
Syslog/Debug	Support
Diagnosis	Ping (IPv4), ping (IPv6)
	Trace route(IPv4)
	Trace route(IPv6)
Management
NTP	NTP Client
DHCP	DHCPv4 Client, DHCPv6 Client
DHCP Snooping	DHCP snooping table
	Trust Port
IPv6 DHCP-Guard	Support
Telnet	Telnet Server
TFTP	TFTP Client
SSH	SSH Server

Detailed Photos
Packaging & Shipping

Company Profile
Certifications
Customer's Feedbacks
Ordering Informations

10/100/1000M Industrial Fiber Switch
Model	Description	Power supply	POE
UT11G-SC20	Industrial 10/100/1000M 1 fiber port + 1 RJ45 port, SC, dual fiber SM 20km, DIN Rail type, IP40, 4KV,-40 ~+85 ºC,power input support: DC10~52V	Not include	No
UT11GP-SC20	Industrial 10/100/1000M 1 fiber port + 1 RJ45 port, SC, dual fiber SM 20km, DIN Rail type, IP40, 4KV,-40 ~+85 ºC,power input support: DC48~57V	Not include	Yes
UT12G-SC20	Industrial 10/100/1000M 1 fiber port + 2 RJ45 port, SC, dual fiber SM 20km, DIN Rail type, IP40, 4KV,-40 ~+85 ºC,power input support: DC10~52V	Not include	No
UT12GP-SC20	Industrial 10/100/1000M 1 fiber port + 2 RJ45 port, SC, dual fiber SM 20km, DIN Rail type, IP40, 4KV,-40 ~+85 ºC,power input support: DC48~57V	Not include	Yes
UT14G-SC20	Industrial 10/100/1000M 1 fiber port + 4 RJ45 port, SC, dual fiber SM 20km, DIN Rail type, IP40, 4KV,-40 ~+85 ºC,power input support: DC10~52V	Not include	No
UT14GP-SC20	Industrial 10/100/1000M 1 fiber port + 4 RJ45 port, SC, dual fiber SM 20km, DIN Rail type, IP40, 4KV,-40 ~+85 ºC,power input support: DC48~57V	Not include	Yes
UT24G-SC20	Industrial 10/100/1000M 2 fiber port + 4 RJ45 port, SC, dual fiber SM 20km, DIN Rail type, IP40, 4KV,-40 ~+85 ºC,power input support: DC10~52V	Not include	No
UT24GP-SC20	Industrial 10/100/1000M 2 fiber port + 4 RJ45 port, SC, dual fiber SM 20km, DIN Rail type, IP40, 4KV,-40 ~+85 ºC,power input support: DC48~57V	Not include	Yes
UT18G-SC20	Industrial 10/100/1000M 1 fiber port + 8 RJ45 port, SC, dual fiber SM 20km, DIN Rail type, IP40, 4KV,-40 ~+85 ºC,power input support: DC10~52V	Not include	No
UT18GP-SC20	Industrial 10/100/1000M 1 fiber port + 8 RJ45 port, SC, dual fiber SM 20km, DIN Rail type, IP40, 4KV,-40 ~+85 ºC,power input support: DC48~57V	Not include	Yes
UT05G	Industrial 5x10/100/1000Mbps RJ45 ports network switch, DIN Rail type, IP40, 4KV,-40 ~+85 ºC,power input support: DC10~52V	Not include	No
UT05GP	Industrial 5x10/100/1000Mbps RJ45 ports network switch, DIN Rail type, IP40, 4KV,-40 ~+85 ºC,power input support: DC48~57V	Not include	Yes
UT08G	Industrial 8x10/100/1000Mbps RJ45 ports network switch, DIN Rail type, IP40, 4KV,-40 ~+85 ºC,power input support: DC10~52V	Not include	No
UT08GP	Industrial 8x10/100/1000Mbps RJ45 ports network switch, DIN Rail type, IP40, 4KV,-40 ~+85 ºC,power input support: DC48~57V	Not include	Yes
UT016G	Industrial 16x10/100/1000Mbps RJ45 ports network switch, DIN Rail type, IP40, 4KV,-40 ~+85 ºC,power input support: DC10~52V	Not include	No
SFP Port Fiber Switch
UT11G-SFP	Industrial 10/100/1000M 1 SFP port + 1 RJ45 port, DIN Rail type, IP40, 4KV,-40 ~+85 ºC,power input support: DC10~52V	Not include	No
UT11GP-SFP	Industrial 10/100/1000M 1 SFP port + 1 RJ45 port, DIN Rail type, IP40, 4KV,-40 ~+85 ºC,power input support: DC48~57V	Not include	Yes
UT12G-SFP	Industrial 10/100/1000M 1 SFP port + 2 RJ45 port, DIN Rail type, IP40, 4KV,-40 ~+85 ºC,power input support: DC10~52V	Not include	No
UT12GP-SFP	Industrial 10/100/1000M 1 SFP port + 2 RJ45 port, DIN Rail type, IP40, 4KV,-40 ~+85 ºC,power input support: DC48~57V	Not include	Yes
UT14G-SFP	Industrial 10/100/1000M 1 SFP port + 4 RJ45 port, DIN Rail type, IP40, 4KV,-40 ~+85 ºC,power input support: DC10~52V	Not include	No
UT14GP-SFP	Industrial 10/100/1000M 1 SFP port + 4 RJ45 port, DIN Rail type, IP40, 4KV,-40 ~+85 ºC,power input support: DC48~57V	Not include	Yes
UT24G-SFP	Industrial 10/100/1000M 2 SFP port + 4 RJ45 port, DIN Rail type, IP40, 4KV,-40 ~+85 ºC,power input support: DC10~52V	Not include	No
UT24GP-SFP	Industrial 10/100/1000M 2 SFP port + 4 RJ45 port, DIN Rail type, IP40, 4KV,-40 ~+85 ºC,power input support: DC48~57V	Not include	Yes
UT44G-SFP	Industrial 10/100/1000M 4 SFP port + 4 RJ45 port, DIN Rail type, IP40, 4KV,-40 ~+85 ºC,power input support: DC10~52V	Not include	No
UT44GP-SFP	Industrial 10/100/1000M 4 SFP port + 4 RJ45 port, DIN Rail type, IP40, 4KV,-40 ~+85 ºC,power input support: DC48~57V	Not include	Yes
UT18G-SFP	Industrial 1x1000M SFP port + 8x10/100/1000M RJ45 port, DIN Rail type, IP40, 4KV,-40 ~+85 ºC,power input support: DC10~52V	Not include	No
UT18GP-SFP	Industrial 1x1000M SFP port + 8x10/100/1000M RJ45 port, DIN Rail type, IP40, 4KV,-40 ~+85 ºC,power input support: DC48~57V	Not include	Yes
UT28G-SFP	Industrial 2x1000M SFP port + 8x10/100/1000M RJ45 port, DIN Rail type, IP40, 4KV,-40 ~+85 ºC,power input support: DC10~52V	Not include	No
UT28GP-SFP	Industrial 2x1000M SFP port + 8x10/100/1000M RJ45 port, DIN Rail type, IP40, 4KV,-40 ~+85 ºC,power input support: DC48~57V	Not include	Yes
UT216G-SFP	Industrial 2x1000M SFP port + 16x10/100/1000M RJ45 port, DIN Rail type, IP40, 4KV,-40 ~+85 ºC,power input support: DC10~52V	Not include	No
UT82G-SFP	Industrial 8x1000M SFP port + 2x10/100/1000M RJ45 port, DIN Rail type, IP40, 4KV,-40 ~+85 ºC,power input support: DCDC10~52V	Not include	No

FAQ:
Q1 . What's your MOQ?
A1 .1 pc/pair is ok, we don't have MOQ limited.
Q2.What certification did you get?
A2 : Our products passed the CE,FCC,ROHS and SGS test, you can trust our quality very good.
Q3 :What about your delivery time?
A3:For small sample QTY,we have in stock, need 1day.
For QTY 200-500, usually will take 2-3working days. for big QTY pls contact our sales about details.
Q4.What your common shipping method?
A4:By air, by sea or express(DHL,Fedex,UPS,TNT,EMS...), We will make a perfect delivery plan for you.
Q5.How about your product warranty time?
A5:Our products have 1/3/5years warranty for different product series.
Q6. How to handle quality issues with your product?
We give you the promise if any question during 1 year and not cause by human factors, we will fix it.
