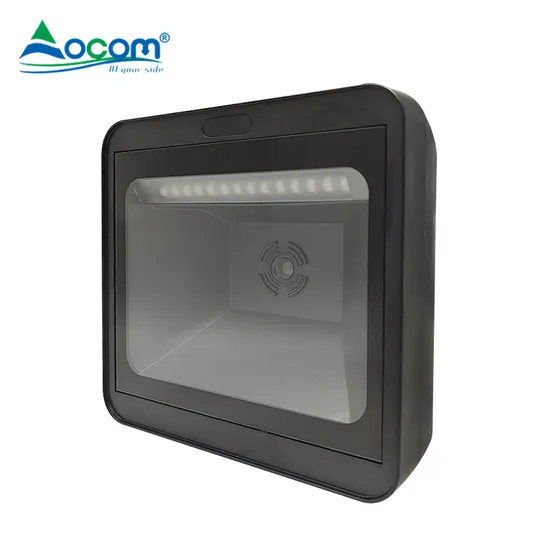

Ocbs-T216 Ocom Desktop Red LED Quick Scanning 2D Omni Directional Bar Code Reader Barcode Scanner
| US$15.90-29.90 | 1 Piece (MOQ) |
Basic Info.
Model NO.
OCBS-T216
Kind
Flatbed Scanner
Scan Speed
300 scans/sec
Scanning Light Source
LED
Usage
Barcode Scanner
Network Scanning
Support Network
Interface Type
RS232, USB
Scanning Element
CMOS
Optical Resolution
600dpi
Application
Commercial Application
Model
Ocbs-T219
Material
ABS+TPU
Interface
USB
IP Grade
IP52
Sensor
CMOS 640*480 Pixels, Global Shutter
Prompt Mode
Buzzer, LED Indicator(Green Light)
Transport Package
1PCS in a Box
Specification
Package 220*180*110mm
Trademark
OCOM/NEUTRAL/OEM
Origin
Shenzhen, China
HS Code
8443321300
Production Capacity
30000 Per Week
Packaging & Delivery
Package Size
19.00cm * 19.00cm * 12.00cm
Package Gross Weight
0.700kg
Product Description
Features: Global shutter sensor,100FPS,CMOS imaging, flexible LED red light, automatic exposureDrive- free, plug and play, support multiple languageAdd hidden suffixes by barcode type, insert custom characters, replace any characters, and intercept barcode data by lengthEasy to read 1D/2D barcode, including film covering, reflection, blurring, wrinkles, color codes, screen codes, long barcodes, etcSpecification| General | |
| Model | OCBS-T219 |
| Material | ABS+TPU |
| Interface | USB |
| Operating Voltage | DC 5V ±5% |
| Current | Working 180mA , Standby 120mA |
| System supported | Linux, Android,Windows XP,7,8,10,MAC |
| IP Grade | IP52 |
| Shock specification | Designed to withstand 1.2m drop (concrete surface) |
| Performance | |
| Sensor | CMOS 640*480 pixels, global shutter |
| Light source | (Illumination )red color LED |
| Prompt mode | Buzzer, LED indicator(Green Light) |
| Resolution | Code39 ≥4mil |
| Scan Angle | Pitch ±65°@ 0°Roll and 0° Skew Roll 360°@ 0°Pitch and 0° Skew Skew ±65°@ 0°Roll and 0° Pitch |
| Symbol Contrast | ≥20% |
| Error Rate | 1/5000000 |
| Ambient light Immunity | 0-100,000 Lux |
| Typical Depth of Field | QR Code 10.83mil: 2cm - 9cm QR Code 20.83mil: 2cm - 21cm Code 39 5.83mil: 1cm - 12cm Code 39 10.83mil: 1cm - 21cm EAN13 9.17: 1cm - 15cm EAN13 10.83: 2cm - 21cm Wechat: 0cm - 43cm Alipay: 0cm - 43cm |
| Decoding ability | 1D:Interleaved 2 of 5, ITF-6, ITF-14, ISB-128, Code 11, UCC/EAN-128, GS1 Databar, Industrial 2 of 5, Matrix2 of 5, Code 32, Code 128, EAN-13, EAN-8, Code39, UPC-A, Codabar, Standard 2 of 5, Plessey, MSI-Plessey, UPC-E, Code 93,GS1 composite code 2D:PDF417, DataMatrix, QRCode, Micro DF417, HanXin, AZTEC, Maxicode, Micro QR |
| Physical | |
| Weight | 280g±3g (without cable) |
| Dimension | 106.2*105.0*155.3mm |
| Package | 183*178*110 mm /520g |
| 20 in 1 carton | 615*420*390mm /10.4kg |
| Environment | |
| Working temperature& humidity | 0 to 45 degrees centigrade, 10%~80% No condensation |
| Storage temperature& humidity | -20 to 60 degrees centigrade , 10%~90% No condensation |
