High Speed 190cm Air Jet Loom Weaving Machine Textile Price

Product Description

Product Description
ZYTT-A30 air jet loom is developed by our company which has advanced performance on the base of the merit of ZYTT20E, it is developed for meeting higher weaving requirement. Its main features are as follows:
○ Adopts new type electronic control system
○ New designed frame structure
○ New designed low vibration beating balance system
○ New designed air bag structure of main nozzle and stretch nozzle
○ New designed double back rest let-off structure
○ Higher efficiency weft insertion system
○ Adopts super power-saving electromagnetic valves and nozzles
○ Powerful weaving expert system New Designed Frame Structure And Flexibility For High Speed
Adopts high rigid frame structure, big diameter beam gear and positive let-off driving beam with bath lubrication, which make loom suit for the high density fabric at high speed.
Both side cam box wall board and frame structure have been optimized, it well improved resistance to vibration and dependability, and well ensures the loom work in high speed;
wider width and low noise.
New Designed Beating Dynamic Balance System
The beating axis adopted new designed beating dynamic balance system, it improved the beating-up force of the loom, and the vibration of the whole machine is reduced, it is more effectively ensured to weave the high-count and high-density fabric.
Automatic Tension Adjustment
Warp tension can be adjusted automatically when loom is started, this can avoid tension change during Ioom stops and further avoid stop marks.
New Electronic Control System
The graphical operation interface is adopted. In the interface, the icon of each function is clear and transparent, the operation is simple. Various fabric weaving parameter schemes are pre-saved in the system, and the parameter schemes can be modified or added, and related weaving parameters can be generated through one key, the intelligent treatment of the process is realized. The advanced flow automatic algorithm can calculate the air consumption in real time, the digitization of factory management is realized. The online automatic adjustment of weft insertion angle and air pressure can be realized, and air consumption is minimized.

Item	Specification	Optional
Reed Space	Nominal:150,170,190,210,230,260,280,340,360cm
	Useful range: reduction fom nominal 0~60cm(150-260cm) reduction from nominal 0~80cm(280cm)
Yarn Range	Spun: Ne100~Ne2.5
	Filament: 22dtex~1350dtex
Weft Selection	2-color,4-color,6-color with extension function
Drive	Magnetic brake control position stop directly
	Direct drive main motor 2.2kW (crank shedding),3.0kW (cam shedding),3.7kW(Dobby shedding),6.5kW(Jacquard shedding)
	Push button operated by both hands
Weft Insertion	Insertion rate: max 2300 m/min
	Main nozzle and sub nozzle combined system	Stretch nozzle
	Profile reed	ABSweft break
	Auxiliary main nozzle
Shedding	Crank shedding: 4&6 shafts
	Positive cam shedding: 10 shafts max
	Dobby shedding: 16 shafts max
	Jacquard shedding

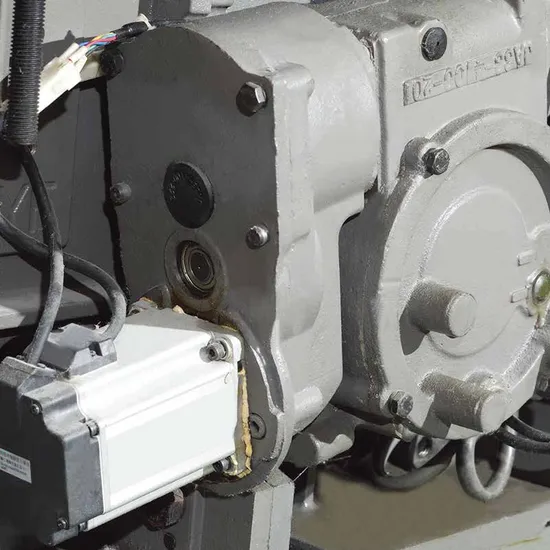

Let Off	Negative or positive let-off
	Double roller electronic let-of with automatic reversefunction	Double beam
	Flange diameter Ф800mm	Ф914mm ,Ф1000mm
Take-Up	Electronic take-up
	Pick density: 25~300picks/inch,special 15~300picks/inch
	Max take-up diameter:Ф520mm(crank shedding) Ф600mm(cam,dobby,Jacguard shedding)
Beating	Crank type beating, multiple sley sword beating
	4 links (narrow width),6 links(wide width)
Length Measuring	Vibratory weft accumulator
Accumulator	Floor type:4 bobbins(2-color),8 bobbins(4-color)
Bobbin Frame	Planetary gear leno selvage
Selvage	2 rollers take-up; gear take up
Waste Selvage	Mechanical weft cutter,Electronic weft cutter
Weft Cutter	Oil bath system for main driving parts, centralize lubrication system(Manual grease)	Automatic lubrication system
Auto-Stop Motion	Weft: photoelectric double weft sensor
	Warp: Electronic 6-row contact bar system
	Others: Automatic stop for leno yarn and waste salvage yarn break
	Stop reason Indication: Indication on control panel and 4 color indicating lamp
Automatic	Control:Multiple function computer control system with data setting/control/ monitor/self diagnose/artificial intelligence interface
	Pick finding: automatic pick finding
	Slow motion(corotation and reverse) by inverter
	Others: Monitor output terminal
	Memorycard system
	Jet automatic control
