Shantui Se220 22 Ton High Power Crawler Excavator Factory Price

Product Description

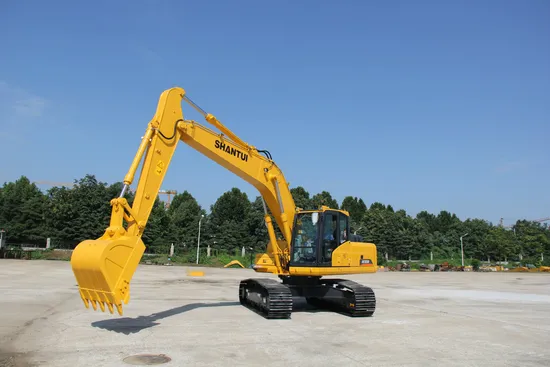

SHANTUI SE220 22 Ton High Power Crawler Excavator Factory Price
Product Description
* The paralleling radiator is adopted to effectively prevent the overheating. The exhaust system is optimized based on the Fluent simulation to reduce the exhaust noise and improve the engine power utilization effciency. The transmission route is optimized based on the MATLAB vibration system simulation principle so that the noise level of the machine is superior to CE standard requirement. The three-stage integrate fuel filter and the electric fuel pump guarantee the good fuel adaptability and effectively protect the engine.
* Product reliability: The high quality core parts and the design optimized working device feature stable and reliable quality.
* Operations and maintenances: The large color display can real-time monitor the working status of machine mode and incorporates the malfunction self-diagnosis and record function.
The multi-stage power control is adopted for the manual and electronic accelerators so that the user can select different working modes depending on own needs. The diversified optional attachments, including breaking hammer, ripper, and quick change device, can be equipped to realize the digging, landfill, breaking,and leveling operations, featuring multi-function capability.
The remote installation locations for the maintenance parts ease the maintenance operations.
* Comfort: Within the spacious cab, the arrangement and color matching of the upholstery are designed as per the ergonomic principle. The full-automatic A/C system, automatic air vent adjustment and distribution, and height and position adjustable seats feature excellent adaptability. The cab is equipped with composite shock absorbers to effectively mitigate the vibration of the cab.
* Appearance: The all-new modeling is designed as per bionic principle and is covered with fully molded and electrophoresis treated coverings.
Product Parameters

ENGINE	Model	cumins B5.9-C
	Type	Water cooling, in-line ,6 cylinders, turbocharging
	Quantity of cylinders	6
	Bore x stroke	102 x 120 mm
	Displacement	5.9 L
	Power output	112 kW/1950 rpm
	Maximum torque	614N.m
HYDRAULIC SYSTEM	Pump	Imported
	Type	Variable piston pump
	Maximum discharge flow	2x218 L/min
	Control circuit	3.9 MPa
	Travel circuit	31.9 MPa
	Swing circuit	25.5 MPa
TRAVEL SYSTEM	Travel motor	Variable axial piston motor
	Travel brakes	Lubricated double-disc
	Parking brake	Pressure release
	Travel shoes	2 x 47
	Travel speed	3.3/5.1 km/h
	Drawbar pulling force	195 kN
	Gradeability	70%
	Minimum ground clearance	470 mm
OIL CAPACITY	Fuel tank	330 L
	Cooling system	28 L
	Engine oil	20 L
	Hydraulic oil tank	400 L
	System capacity	-
SWING SYSTEM	Brake	Pressure Release Mechanical Braking
	Swing speed	11.5 rpm
	Tail swing radius	2925 mm
	Arm digging force	92.5 KN
	Bucket digging force	127 KN
BUCKET	Bucket capacity	Backhoe bucket 1.05 m3 (SAE)
	Number of bucket teeth	5
	Bucket width	1267 mm
	Arm length	2.925 m
	Maximum digging reach/ Maximum digging reach at ground level	9.86 m/9.675 m
	Maximum digging depth/height	6.49 m/10.095 m
	Maximum dumping height	7.19 m
	Minimum swing radius	2.97 m
