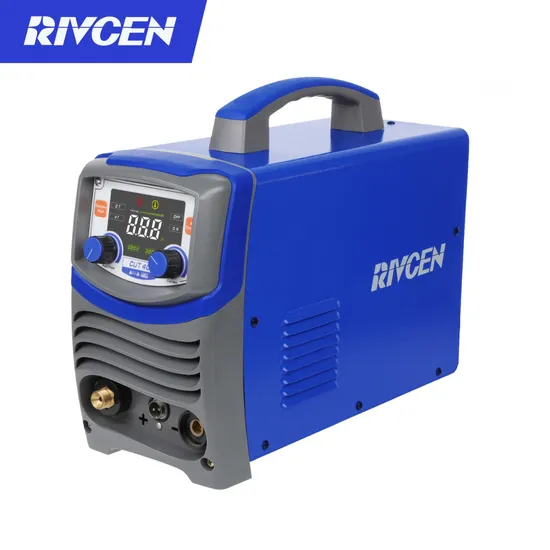

IGBT Single Tube Inverter Air Plasma Cutter, Cut 40 Air Plasma Cutting Machine

Product Description

Keyfeatures:
- Portable air plasma cutter - Digital smart welder - Multifunction digital LCD display - PWM control system - Max current 40-45A - Post flow function - Air checking on and off - 2T/ 4T functions - Maximum cutting thickness up to 12mm

Parameters

Parameter/Model	CUT40
Inverter Technology	IGBT
Rated Input Power(KW)	6.6
Input Voltage(V)	AC220V±15%
Frequency(HZ)	50/60
Rated Input Current(A)	30
No-load Voltage(V)	230
Output Current Range(A)	20-40
Rated Output Vlotage(V)	96
Duty Cycle(%)	60
No-load Loss(W)	40
Power Factor	0.73
Efficiency(%)	80
Housing Protection Grade	IP21S
Insulation Grade	F
Arc Way	Contact
Recommended Air Pressure	4-5
Cutting Thickness(mm)	1-12
Net Weight(kg)	8
Packing Dimension(mm)	440x260x340

Shenzhen Donrun Welding Equipment Co., Ltd.
Shenzhen Donrun Welding Equipment Co.,Ltd("Donrun" for short) is a high-tech enterprise,which specializes in the R&D,manufacture,sales and service of inverter welding and cutting equipment,automatic welding devices,welding accessories and labor protection appliances.
Donrun founded in 2009,and the team is one of the earliest professional manufacturing and design of inverter welding and cutting equipment in China.There are full range welding equipment with ARC,TIG,MIG,plasma cutting,SAW,stud welder and multi-function welders over 100 models,which are widely used in military,aerospace,construction,machinery manufacturing,shipbuilding,steel structures,marine engineering,vehicle manufacturing,electricity,pipeline,chemical construction,boilers,bridge building and normal manufacture normal industries,etc.
RIVCEN,POWCEN and DONSUN are 3 major brands of Donrun. With the own brands,it has set up the dominating distribution network in the welding industry after years of accumulation,with nearly 500 dealers and sub-dealers,and near to one hundred dealers covering more than 40 countries and regions overseas,offering excellent products and services worldwide.
Independent innovation is the driving force for the company's continuous development.The best quality and optimal performance products are the cornerstones of Donrun development.As a leading enterprise,Donrun devotes itself to the perfect welding solutions for customers worldwide.

FAQ
1. Q: Are you a factory or trading company?A: Shenzhen Donrun Welding Equipment Co., Ltd("Donrun" for short) is a high-tech enterprise, which specializes in the R&D, manufacture, sales and service of inverter welding and cutting equipment, automatic welding devices, welding accessories and labor protection appliances. 2. How many employees in your company?A: Totally nearly 500 staff in our company.3. Q: Where is your factory located ? How can i get there ?A: Our factory is located Shenzhen City of Guangdong Province. You can reach us veryconveniently.4. Q: What certificates do you have ?A: We have gained the certificate of CE, CCC, ROHS, and ISO9001.5. Q: What's your delivery time ?A: Usually, it will take two months after we confirming the sales contract and details.6. Q: What kind of payment terms do you accept ?A: T/T or L/C at sight.7. Q: Can you do OEM ?A: Yes. We offer OEM/ ODM service.8. Q: What's your warranty ?A: We offer one year warranty period as the quality guarantee. Meanwhile, we will offer 1% free PCB or spare parts for customers maintanence with the shipment.
