Manual Automatic Drilling Milling Machine with CE (KY32LV)
| US$1,020.00-1,350.00 | 3 Sets (MOQ) |
Basic Info.
Model NO.
KY32LV
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Color
Red
Warranty
1 Year
Drilling Capacity
32mm
Face Milling Capacity
70mm
End Milling Capacity
20mm
Spindle Taper
Mt3 or ISO30
Net Weight
220kg
Motor
1.1 Kw
T-Slot
12mm
Sleeve Travel
70mm
Transport Package
Wooden Case
Specification
KY32V/KY32LV
Trademark
KY
Origin
China
Production Capacity
150-200 Sets /Month
Product Description
Features1.Compact, economical mini ertical drilling/mlling machine.
2.Variable speed enables to oprerate easily.
3.Spindle is supported by high precision taper roller bearing.
4.Gear head provides greater torque.
5.Mill head may be tilted 90 degree
6.Adjustable taper gibs.
| Specification | ||
| Model No. | KY32V | KY32LV |
| Drilling capacity | 32mm | 32mm |
| Face milling capacity | 70mm | 70mm |
| End milling capacity | 20mm | 20mm |
| Spindle taper | MT3 or ISO30 | MT3 or ISO30 |
| Sleeve travel | 70mm | 70mm |
| Low speed stage | 50-1000 rpm | 50-1000 rpm |
| High speed stage | 150-3000 rpm | 150-3000 rpm |
| Head rotation | ±90° | ±90° |
| Table size | 700x210mm | 840x210mm |
| X-axis travel | 425mm | 625mm |
| Y-axis travel | 220mm | 220mm |
| Z-axis travel | 370mm | 370mm |
| T-slot | 12mm | 12mm |
| Motor | 1.1 KW | 1.1 KW |
| Packing size | 710x890x1150mm | 710x890x1150mm |
| Net weight | 220kg | 220kg |
| Standard Accessories | ||
| Speed display | 1 set | |
| Depth ruler | 1 set | |
| Working lamp | 1 set | |
| Drill chuck 3-16mm | 1 set | |
| Arbor MT2/B16, M10 | 1 set | |
| Drawbar MT2/M10 | 1 set | |
| Operation tools | 1 set | |
| Optional Accessories | ||
| Stand & chip tray | ||
| Keyless drill chuck 3-16mm | ||
| ER32/6pcs collet chuck (6-20mm) | ||
| 3-way angle vise/75mm | ||
| Milling vise | ||
| End mill 7pcs (4-16mm) | ||
| 58pcs of clamping kits/M10*11.7mm | ||
| X-axis Power feed | ||
| Digital readout | ||

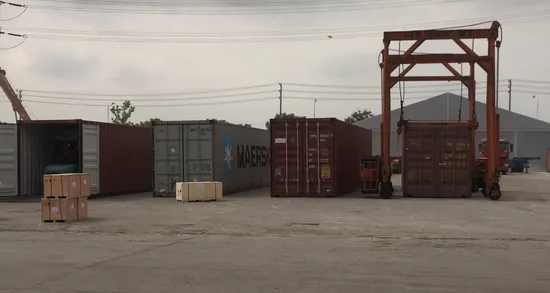

packing
Warehouse to film
