Pontoon Excavator with Cutter Suction Dredging Pump for Sale
| US$132,220.00-183,300.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
SWEA260
Usage
Special Excavator, Marine Excavator, Mining Excavator
Bucket
Backhoe
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
0.5~1.0m³
Size
Medium-Sized
Certification
CE, ISO9001: 2000, ISO14001
Condition
New
Pontoon Size
9.5 Meters
Spud Pile Length
4~10 Meters
Pontoon Material
Alloy Steel
Side Pontoon
Optional
Hydraulic Piles
Optional
Transport Package
Nude
Specification
ISO
Trademark
SINOWAY
Origin
China
HS Code
84163600
Production Capacity
100 PCS Per Year
Product Description

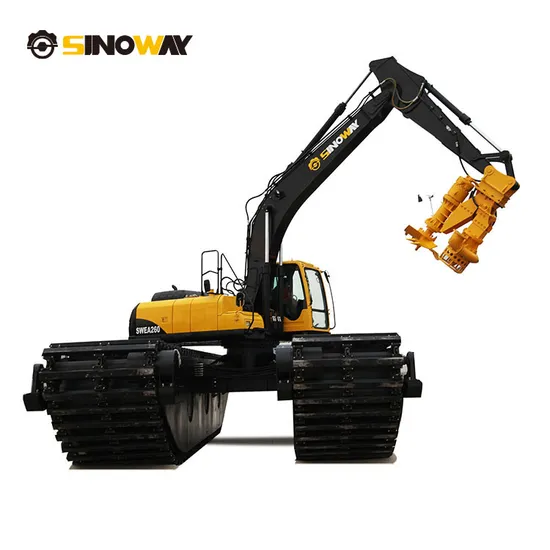

SINOWAY Marsh ExcavatorProduct Show
Machine Introduction
Specifications
| Engine | |
| Model | Cummins/Isuzu |
| Type | Six-cylinder,water-cooled turbocharged,mechanical injection |
| Rated power | 125KW |
| Rated speed | 2100rpm |
| Main Technical Specification | |
| Operating weight | 42000Kg |
| Standard bucket capacity | 1.1m³ |
| Slewing speed 11rpm | 11rpm |
| Stick digging force | 110KN |
| Bucket digging force | 150KN |
| Main Features | |
| Tracked pontoon structure | |
| Big torque travelling device | |
| Big circular arc structure | |
| High capacity of fuel tank | |
| Main Applications | |
| River/Beach earth moving | |
| Swamp works | |
| Dredging applications | |
| Delta works | |
| Waterway deepening | |
| Hydraulic System | |
| Main pump | KAWASAKI |
| Main valve | KAWASAKI |
| Motor | KAWASAKI |
| Hydraulic flow rate | 2x235L/min |
| Hydraulic pressure | 32MPa |
| Travelling System | |
| Travelling speed | 0~5.4km/h |
| Grade ability | 65% |
| Ground pressure | 0.0135MPa |
| No. of chains | 3 |
| Dimensions | |
| Overall length | 12100mm |
| Overall width | 6000mm |
| Overall height | 3900mm |
| Ground clearance | 1192mm |
| Length of pontoon | 10200mm |
| Width of pontoon | 1760mm |
| Height of pontoon | 1700mm |
| Operating Scope | |
| Stick length | 3000mm |
| A: Max. cutting height | 10980mm |
| B: Max. dumping height | 8140mm |
| C: Max. digging depth | 6940mm |
| D: Max. reach | 10290mm |
