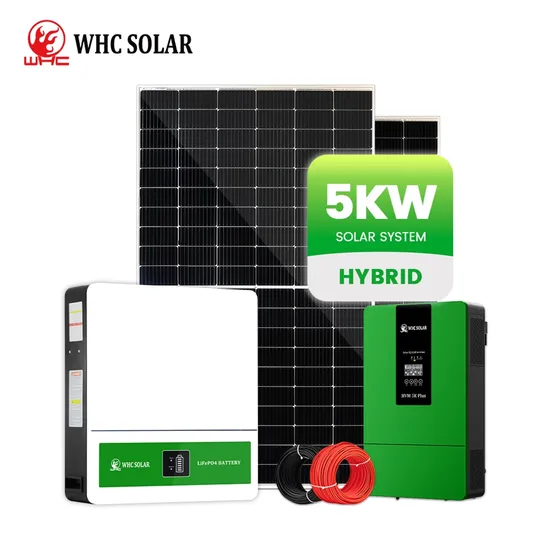

WHC Complete Hybrid Solar Energy System Off Grid 5KW Solar Panel System Kit
| US$2,120.80 | 1 Set (MOQ) |
Basic Info.
Model NO.
WHC5KW-5120WH
Condition
New
Certification
CE, RoHS
Application
Home
Specification
Normal, 5KW
System Type
Residential Solar System
Load Power
5000W
Output Voltage
AC220V
Solar Panel Type
Mono Solar Panel
Inverter Type
Hybrid Solar System 5kw
Battery Type
Gel Battery /Lead Acid Battery
Work Time
24 Hours
Solar Panel Bracket
Aluminum Alloy
Installation Site
Flat Roof Ground
Accessories
Mc4 & Cable
Usage
Home Solar System/Energy Storage System/UPS System
Transport Package
Package in Carton or According to Your Requiremen
Trademark
WHC / WHC SOLAR
Origin
Guangdong, China (Mainland)
Production Capacity
1000pieces/Month
Packaging & Delivery
Package Size
200.00cm * 200.00cm * 200.00cm
Package Gross Weight
100.000kg
Product Description
Product DescriptionWHC Solar Energy System also known as off-grid solar system is the most cost effective type for the solar system. It is a complete solar setup that comes with highly efficient solar panels.off-grid solar inverter, lithium ion battery or gel battery, and other standard solar accessories. This solar system will not only provide you continuous electricity but will also reduce your heavy electricity bills.
Product Parameters
| WHC-HVM-5KW-5120WH | |||
| Item | Model | Specifications | Quantity |
| Solar Inverter | HVM Plus 5KW Solar Inverter | 48V 5KW &MPPT500V 80A | 1 pc |
| Solar Panel | WHC-550M-144 Solar Panel | Mono 49.6V 550W | 6 pcs |
| Solar Battery | WHC-P-51.2V100AH Lithium Battery | Lithium Battery 5120Wh | 1 pc |
| PV Cable 100m | PV 6 MM² | 2 pcs | |
| Accessories | Battery Cable | 25 MM² | 2 pcs |
| MC4 | MC4 Connecter | 4 pcs | |
| DATA Line | Communication Cable | 2 pcs | |
| Mounting System | Roof/Ground Support | 1 pc | |
6.High Efficiency Pure Sine Wave Inverter Mono Solar Panel 1. Model:WHC-550M-144 2. Max Power Voltage: 41.97V 3. Max Power Current:13.11A 4. Open Circuit Voltage: 49.6V 5. Short Circuit Current: 14.05A 6. Dimensions: 2279*1134*35mm
7. Weight: 27.3KGSolar Lithium Battery
1. WHC-P-51.2V100Ah Lithium Battery2. Nominal Votage: 51.2V(48V)3. Capacity:100AH 4. Energy: 5120Wh5. Installation: Wall Mount6. Sizes: 440*500*142mm PV cable 1. Solar Cable 100m 2. Type:RVV1*6mm2
3. Material:Pure Copper
4. Temperature Rating:-40°C-120°CMore than 25 YearsMC4 Connector1. MC4 Solar Connector2. IP68 Waterproof
3. High Quality.Safe ProtectionQuick Operation.Copper Mc4Connector.Certifications
