Sachet Vertical Form Fill Seal Seasoning/Chinese Medicine/Coffee Powder Packaging-Machine

Sachet Vertical Form Fill Seal Seasoning/Chinese Medicine/Coffee Powder Packaging-Machine

US$2,180.00-2,350.00 1 Piece (MOQ)

Basic Info.

Model NO.
SD-61F
Automatic Grade
Automatic
Application
Dairy Products, Snack, Rice, Flour, Seasoning
Type
Forming Filling Sealing Machine
Forming Species
Bag Moulding
Forming Function
Forming, Filling, Seal
Driven Type
Electric
Material Type
Powder
Packaging
Bag
Packaging Material
Film
Transport Package
Wooden Case Packaging
Specification
990 * 730* 1620 mm
Trademark
ODM/OEM
Origin
China
HS Code
8422303090
Production Capacity
1200

Packaging & Delivery

Package Size
99.00cm * 73.00cm * 162.00cm
Package Gross Weight
230.000kg

Product Description

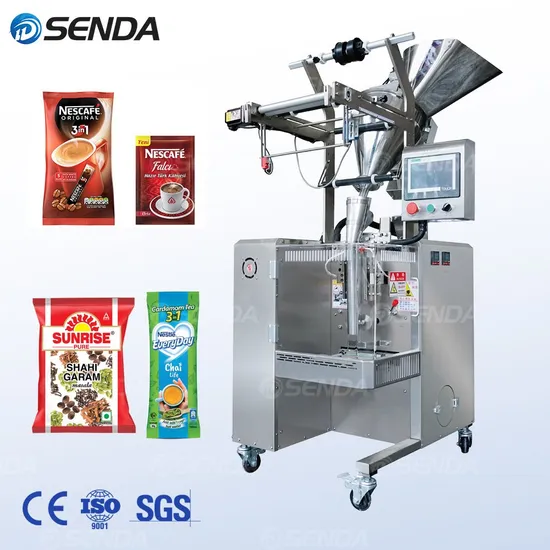

Sachet Vertical Form Fill Seal Seasoning/Chinese Medicine/Coffee Powder Packing Machine
.............................................................................................................................................................................................................................................
Technical Parameters
Product Name Sachet Vertical Form Powder Packing Machine
Measuring Scope 1-100g
Bag Length 30-170mm
Bag Width 30-130mm
Packing Speed 30-100bags/min
Packing material
BOPP/Polyethylene, Aluminium/Polyethylene, Paper/Polyethylene, Polyester/Aluminizer/Polyethylene, Nylon/CPP and so on.
Sealing Type Three sides Sealing/ Four sides Sealing/ Back sealing
Power voltage 220V/50-60Hz/1.4kw
Equipment size 990 * 730* 1620 mm
Weight 235kg
..........................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
Characteristic
All the works of bag making,measuring,filling,sealing,cutting and counting can be done automatically,at the same time,it can also according to the demand of customers printing batch number and other functions.
The touch screen operation, PLC control, drive stepper motor to control the bag length,stable performance,easy to adjust and accurate detection.Choose the intelligent temperature controller and PID control to ensure the error range of temperature controlled within 1 degree Centigrade.
..........................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
Scope of application
Food, medicine, chemical industry, cosmetics industry of powder of measurement packing.
Jiangxi Senda Automation Equipment Co., Ltd. Was established in August 2012 and is located in Ganzhou Economic and Technological Development Zone, Jiangxi Province. Our company mainly produces automatic bag-type packaging machines, automatic bag-type vacuum packaging machines, powder packaging machines, liquid packaging machines, granule packaging machines, etc. It is an international enterprise integrating R&D, manufacturing, marketing and service.The company has a number of invention patents and utility model patents. Passed ISO9001, CE, SGS and other certifications. The company′s products sell well all over the country and exported to many countries and regions. It is a large-scale research and development institution in the same industry in China, with a complete production and manufacturing system and huge marketing services.
Packaging & Shipping
