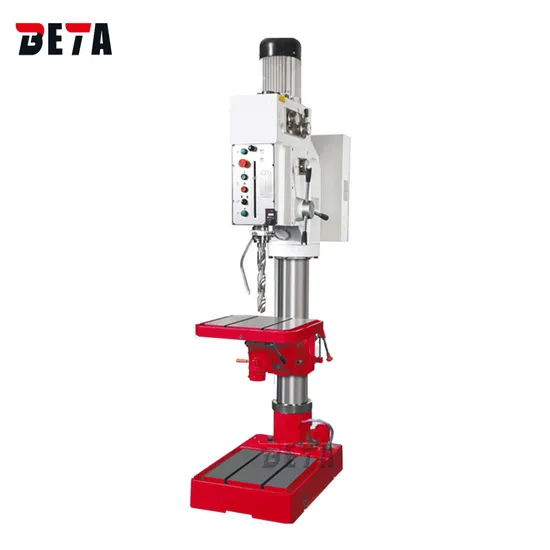

Good New Vertical Pillar Drilling Machine for Metal Z5040
Basic Info.
Model NO.
Z5040
Structure
Vertical Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Number of Shaft
3
Hole Diameter
<50mm
Automatic Grade
Manual
Precision
Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Name
Vertical Pillar Drilling Machine for Metal
Max. Drilling Diameter
40mm
Max. Taping Capacity
M27
Dia. Column
160mm
Spindle Travel
180mm
Spindle Speeds Range
42-2050rpm
Spindle Bor Taper
Mt4
Power of Main Motor
2.2/2.8kw
Dimension of Work Table Surface
550X470
Key Word
Vertical Drilling Machine
Function
Drilling Hole for Metal
Delivery Time
40 Days
Distance Spindle Axis to Column Generati
1180mm
Voltage
OEM
Transport Package
Wooden Case
Specification
1080x620x2450mm
Trademark
BETA
Origin
Shandong, China
Production Capacity
100 Sets Per Month
Packaging & Delivery
Package Size
108.00cm * 62.00cm * 245.00cm
Package Gross Weight
815.000kg
Product Description
Good New Vertical Pillar Drilling Machine For Metal Z5040Standard accessories:
Drill chuck Arbor Taper sleeve Drift Eyelet bolts Wrench
| Model | Unit | Z5030 | Z5035 | Z5040 | Z5050 |
| Max. drilling capacity | mm | 30 | 35 | 40 | 50 |
| Max. tapping capacity | mm | M20 | M24 | M27 | M30 |
| Diameter of column | mm | 120 | 140 | 160 | 180 |
| Spindle travel | mm | 135 | 160 | 180 | 240 |
| Distance between spindle axis to column generating line | mm | 320 | 330 | 360 | 360 |
| Max. distance between spindle nose to table | mm | 550 | 590 | 590 | 570 |
| Max. distance between spindle nose to base | mm | 1100 | 1180 | 1180 | 1160 |
| Spindle taper | MT3 | MT4 | MT4 | MT4 or MT5 | |
| Spindle speed range | r/min | 65-2600 | 75-2500 | 42-2050 | 42-2050 |
| Spindle speed steps | 12 | 12 | 12 | 12 | |
| Spindle feeds | 0.1, 0.2, 0.3 | 0.1, 0.2, 0.3 | 0.07, 0.15, 0.26, 0.4 | 0.07, 0.15, 0.26, 0.4 | |
| Worktable size | mm | 500x440 | 500x440 | 550x470 | 550x470 |
| Table travel | mm | 490 | 550 | 550 | 550 |
| Base size | mm | 400x390 | 400x390 | 450x440 | 450x440 |
| Overall height | mm | 2050 | 2300 | 2330 | 2380 |
| Main motor | kw | 0.85/1.1 | 1.5/2.2 | 2.2/2.8 | 2.2/2.8 |
| Coolant motor | W | 40 | 40 | 40 | 40 |
| N.W./G.W. | kg | 450/495 | 545/595 | 755/815 | 985/1045 |
| Packing size | mm | 1080x620x2150 | 1080x620x2200 | 1080x620x2450 | 1080x620x2450 |
Feature and Application: New-designed,pleasing appearance,compact construction, wide speed change range, easy to operate. Easy operation with its unique workable,and manual operated lifting device. The working table can be rotated 180°and can be tilted ± 45°also,it is reliable and easy job can be done. Equipped with coolant system and tapping mechanism. Equipped with shortcut and overload protection, its electrical system with powerful spindle motor, it designed according to IEC standard. Characteristic protection device is safe and reliable Ideal choice for single piece, small batch and mass production for drilling ,counter boring, reaming, tapping, spot facing.etc.
