Cylindrical Roller Bearing/SKF/NSK/Koyo/Roller Bearing/ Automotive Bearing for Air Conditioner Compressor Pump Water Pump Car Parts Motorcycle Parts

Product Description

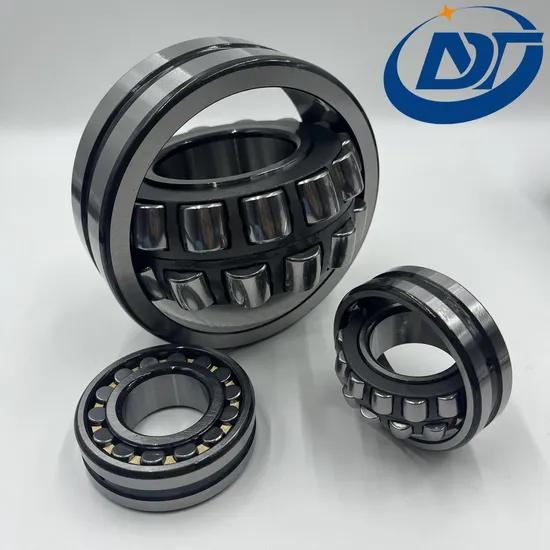

About Spherical Roller Bearing 1): Able to accommodate misalignment2): Suitable for high axial and some radial loads3): Relatively high speed ratings4): Type: YM (CA, CAM, EAS ), YMB, MB, CJ(CC CD RH), E (E1)5): Application examples: Heavy vertical shafts, injection moulding machines, etc. Structure and CompositionSpherical roller bearings have double-row rollers, the outer ring has a commonspherical raceway, and the inner ring has two raceways that are inclined at anangle relative to the bearing axis.In addition to being able to withstand radial loads, the bearing can alsowithstand bidirectional axial loads.
Stamped steel plate reinforced cage (E). Stamped steel plate type cage (CC), glass fiber reinforced polyamide 66 cage ( TVPB), and machined brass two-piece cage (MB). Machined brass integral cages (CA), stamped steel plate cages for vibration applications (JPA). Brass cage for vibration occasions (EMA)
Product Parameters

Bearing Number	Principal Dimensions			Basic Load Ratings		Limiting Speeds		Weight(kg)
	d	D	B	Cr	Cor	Grease	Oil
	mm	mm	mm	kN	kN	r/min	r/min
22232 CA	160	290	80	879	1220	1400	1900	22.8
22232 C	160	290	80	879	1220	1400	1900	22.8
23232 CA	160	290	104	1050	1670	910	1200	30.6
23232 C	160	290	104	1050	1670	910	1200	30.6
22332 CA	160	340	114	1350	1860	1000	1400	51.9
22332 C	160	340	114	1350	1860	1000	1400	51.9
23934 CA	170	230	45	339	633	1600	2100	5.4
23034 CA	170	260	67	652	1110	1200	1600	13
23034 C	170	260	67	652	1110	1200	1600	13
24034 CA	170	260	90	800	1470	860	1200	17.6
24034 C	170	260	90	800	1470	860	1200	17.6
23134 CA	170	280	88	887	1490	990	1300	22.2
23134 C	170	280	88	887	1490	990	1300	22.2
24134 C A	170	280	109	1080	1870	740	990	27.2
24134 C	170	280	109	1080	1870	740	990	27.2
22234 CA	170	310	86	983	1380	1300	1800	29.2
22234 C	170	310	86	983	1380	1300	1800	29.2
23234 CA	170	310	110	1230	1970	840	1100	37.4
23234 C	170	310	110	1230	1970	840	1100	37.4
22240 CA	200	360	98	1290	1910	1100	1500	43.2
22240C	200	360	98	1290	1910	1100	1500	43.2
23240 CA	200	360	128	1580	2620	730	970	57.8
23240C	200	360	128	1580	2620	730	970	57.8
22340 CA	200	420	138	1990	2800	840	1100	95.2
23944 CA	220	300	60	578	1120	1200	1600	12.6
23044 CA	220	340	90	1030	1790	930	1200	31
23044 C	220	340	90	1030	1790	930	1200	31
24044 CA	220	340	118	1370	2550	660	880	40.5
24044 C	220	340	118	1370	2550	660	880	40.5
23144 CA	220	370	120	1500	2570	760	1000	54.1
24144 CA	220	370	150	1870	3390	570	750	65.6
22244 CA	220	400	108	1560	2260	1000	1400	59.5
23244 CA	220	400	144	1960	3270	660	880	81.5
22344 CA	220	460	145	2290	3250	760	1000	121
23948 CA	240	320	60	677	1330	1100	1500	13.5
23048 CA	240	360	92	1130	2080	870	1200	34.3
23048 C	240	360	92	1130	2080	870	1200	34.3
24048 CA	240	360	118	1400	2680	620	830	43.6
22220 CA	100	180	46	317	423	2200	3000	5.1
22220C	100	180	46	317	423	2200	3000	5.1
23220 CA	100	180	60.3	405	589	1500	1900	6.81
23220C	100	180	60.3	405	589	1500	1900	6.81
21320 CA	100	215	47	382	446	1600	2000	8.44
22320 CA	100	215	73	613	799	1600	2200	13.3
22320C	100	215	73	613	799	1600	2200	13.3
23922 CA	110	150	30	182	303	2400	3300	1.5
23022 CA	110	170	45	304	489	1900	2500	3.79
23022C	110	170	45	304	489	1900	2500	3.79
24022 CA	110	170	60	294	506	1300	1800	5.04
24022C	110	170	60	294	506	1300	1800	5.04
23122 CA	110	180	56	382	596	1500	2000	5.72
23122C	110	180	56	382	596	1500	2000	5.72
24122 CA	110	180	69	462	758	1200	1500	7.15
24122C	110	180	69	462	758	1200	1500	7.15
22222 CA	110	200	53	414	574	2000	2700	7.69
22222C	110	200	53	414	574	2000	2700	7.69
23222 CA	1110	200	69.8	528	786	1300	1800	9.79
22212 CA	60	110	28	127	154	3700	4900	1.2
22212 C	60	110	28	127	154	3700	4900	1.2
21312 CA	60	130	31	165	175	2500	3400	1.99
22312 CA	60	130	46	243	2S4	2700	3600	3.01
22312 C	60	130	46	243	284	2700	3600	3.01
22213 CA	65	120	31	151	188	3400	4600	1.61
22213C	65	120	31	151	188	3400	4600	1.61
21313 CA	65	140	33	186	197	2300	3100	2.45
22313 CA	65	140	48	251	291	2500	3400	3.53
22313C	65	140	48	251	291	2500	3400	3.53
22214 CA	70	125	31	155	193	3200	4300	1.68
22214 C	70	125	31	155	193	3200	4300	1.68
21314 CA	70	150	35	206	223	2200	2900	2.98
22314 CA	70	150	51	300	362	2400	3100	4.37
22314 C	70	150	51	300	362	2400	3100	4.37
24048C	240	360	118	1400	2680	620	830	43.6
23148 CA	240	400	128	1680	3060	700	930	66.3
24148 CA	240	400	160	2110	3880	520	700	83.2
22248 CA	240	440	120	1970	2870	750	950	80.7
23248 CA	240	440	160	2450	4110	600	800	111
22348 CA	240	500	155	2690	3850	700	940	152
23952 CA	260	360	75	835	1620	1000	1400	23.4
23052 CA	260	400	104	1420	2520	870	1200	49.8
24052 CA	260	400	140	1650	3340	560	750	66
23152 CA	260	440	144	2140	3660	640	850	92.1
24152 CA	260	440	180	2650	4940	480	640	115
22252 CA	260	480	130	2230	3350	670	850	107
23252 CA	260	480	174	2760	4600	550	740	144
22352 CA	260	540	165	2980	4330	650	870	188
23956 CA	280	380	75	1010	1950	960	1300	24.3
23056 CA	280	420	106	1480	2710	870	1200	53.8
24056 CA	280	420	140	1940	3940	530	710	69.4
23156 CA	280	460	146	2240	3950	600	800	98.1
24156 CA	280	460	180	2730	5220	450	600	120
23130 CA	150	250	80	716	1150	1100	1500	16.2
23130 C	150	250	80	716	1150	1100	1500	16.2
24130 CA	150	250	100	891	1520	840	1100	20.2
24130 C	150	250	100	891	1520	840	1100	20.2
22230 CA	150	270	73	750	1060	1500	2000	18.1
22230C	150	270	73	750	1060	1500	2000	13.1
23230 CA	150	270	96	925	1450	980	1300	24.3
23230C	150	270	96	925	1450	980	1300	24.3
22330 CA	150	320	108	1270	1750	1100	1500	43.7
22330 C	150	320	108	1270	1750	1100	1500	43.7
23932 CA	160	220	45	334	611	1700	2200	5.16
23032 CA	160	240	60	538	917	1300	1700	9.56
23032 C	160	240	60	538	917	1300	1700	9.56
24032 CA	160	240	80	655	1180	930	1200	13
24032 C	160	240	80	655	1180	930	1200	13
23132 CA	160	270	86	841	1370	1000	1400	20.8
23132C	160	270	86	841	1370	1000	1400	20.8
24132 CA	160	270	109	1050	1810	780	1000	26.1
24132C	160	270	109	1050	1810	780	1000	26.1
23222C	110	200	69.8	528	786	1300	1800	9.79
21322 CA	110	240	50	471	611	1400	1800	11.8
22322 CA	110	240	80	724	915	1500	2000	18.3
22322 C	110	240	80	724	915	1500	2000	18.3
23924 CA	120	165	34	226	383	2200	3000	2.12
23024 CA	120	180	46	317	514	1700	2300	4.1
23024 C	120	180	46	317	514	1700	2300	4.1
24024 CA	120	180	60	386	673	1200	1700	5.4
24024 C	120	180	60	386	673	1200	1700	5.4
23124 CA	120	200	62	468	726	1400	1900 .	8.01
23124 C	120	200	62	468	726	1400	1900	8.01
24124 CA	120	200	80	601	994	1100	1400	10.2
24124 C	120	200	80	601	994	1100	1400	10.2
22224 CA	120	215	58	488	666	1900	2500	9.06
22224 C	120	215	58	488	666	1900	2500	9.06
23224 CA	120	215	76	592	904	1200	1G00	12.1
23224 C	120	215	76	592	904	1200	1600	12.1
22324 CA	120	260	86	848	1130	1400	1800	23.4
22209 CA	45	85	23	80.5	91.9	4900	6500	0.597
22209 C	45	85	23	80.5	91.9	4900	6500	0.597
21309 CA	45	100	25	105	112	3300	4400	1.01
22309 CA	45	100	36	146	168	3600	4800	1.43
22309 C	45	100	36	146	168	3600	4800	1.43
22210 CA	50	90	23	83.1	97.8	4500	6000	0.641
22210 C	50	90	23	83.1	97.8	4500	6000	0.641
21310 CA	50	110	27	121	129	3000	4000	1.3
22310 CA	50	110	40	181	208	3200	4300	1.87
22310 C	50	110	40	181	208	3200	4300	1.87
22211 CA	55	100	25	102	119	4100	5400	0.849
22211 C	55	100	25	102	119	4100	5400	0.849
21311 CA	55	120	29	141	152	2800	3700	1.66
22311 CA	55	120	43	213	248	3000	3900	2.43
22311 C	55	120	43	213	248	3000	3900	2.43
23176 CA	380	620	194	3910	7390	450	600	236
24176 CA	380	620	243	4800	9650	390	590	292
22276 CA	380	680	175	4070	6380	600	800	271
23276 CA	380	680	240	5250	9460	390	520	388
22376 CA	380	780	230	5850	9300	340	450	554
23980 CA	400	540	106	1930	3960	680	900	68.2
23080 CA	400	600	148	2890	5650	520	690	150
24080 CA	400	600	200	3720	8080	370	500	202
23180 CA	400	650	200	4220	8000	430	570	265
24180 CA	400	650	250	4800	9700	360	560	333
22280 CA	400	720	185	4610	7270	570	750	324
23280 CA	400	720	256	5850	10600	340	520	457
22380 CA	400	820	243	6232	9880	360	450	650
23984 CA	420	560	106	1980	4200	650	860	71.4
23084 CA	420	620	150	3130	5980	500	670	154
24084 CA	420	620	200	3750	8100	380	480	199
23184 CA	420	700	224	4680	9200	360	450	253
24184 CA	420	700	280	6000	12000	340	450	421
22284 CA	420	760	195	5060	8080	540	710	382
23284 CA	420	760	272	6110	11900	320	400	549
23988 CA	440	600	118	2370	4820	610	810	96.1
23088 CA	440	650	157	3390	6560	480	640	178
24088 CA	440	650	212	4150	9100	360	450	237
23188 CA	440	720	226	4950	10000	340	430	377
24188 CA	440	720	280	6000	12100	320	430	433
22288 CA	440	790	200	5420	8670	520	690	419
23288 CA	440	790	280	6900	12800	300	400	594
23992 CA	460	620	118	2420	5020	590	780	99.7
23092 CA	460	680	163	3390	6840	460	610	206
24092 CA	460	680	218	4500	9950	340	430	266
23192 CA	460	760	240	5500	10000	320	400	457
24192 CA	460	760	300	6300	12400	300	400	512
23292 CA	460	830	296	7050	14500	290	440	700
23996 CA	480	650	128	2750	5780	560	750	121
23096 CA	480	700	165	3550	7640	360	550	218
24096 CA	480	700	218	4600	10200	320	4S0	270
23196 CA	480	790	248	6100	12000	300	380	516
24196 CA	480	790	308	7150	14600	300	380	567
23968 CA	340	460	90	1280	2610	670	850	42.9
23068 CA	340	520	133	2380	4290	610	810	102
24068 CA	340	520	180	2950	6180	430	580	141
23168 CA	340	580	190	3620	6460	490	650	212
24168 CA	340	580	243	4280	8880	360	480	269
22268 CA	340	620	165	3610	5660	660	880	217
23268 CA	340	620	224	4460	7990	430	570	307
22368 CA	340	710	212	5000	7800	360	480	422
23972 CA	360	480	90	1470	3030	760	1000	44.6
23072 CA	360	540	134	2490	4590	580	770	108
24072 CA	360	540	180	3050	6510	410	550	148
23172 CA	360	600	192	3760	6920	470	620	224
24172 CA	360	600	243	4410	9360	350	460	282
22272 CA	360	650	170	3920	6160	630	840	244
23272 CA	360	650	232	4830	8690	400	540	346
22372 CA	360	750	224	5500	8650	360	480	503
23976 CA	380	520	106	1880	3780	710	940	65.4
23076 CA	380	560	135	2580	4880	560	740	114
24076 CA	380	560	180	3150	6860	400	530	154
23296 CA	480	870	310	7750	15200	260	340	853
22218 CA	90	160	40	252	332	2500	3300	3.47
22218 C	90	160	40	252	332	2500	3300	3.47
23218 CA	90	160	52.4	316	453	1600	2200	4.64
23218 C	90	160	52.4	316	453	1600	2200	4.64
21318 CA	90	190	43	320	387	1700	2300	6.09
22318 CA	90	190	64	486	623	1900	2500	8.87
22318 C	90	190	64	486	623	1900	2500	8.87
22219 CA	95	170	43	273	359	2400	3200	4.32
22219 C	95	170	43	273	359	2400	32®0	4.32
21319 CA	95	200	45	351	444	1700	2200	7.09
22319 CA	95	200	67	534	686	1800	2300	10.4
22319 C	95	200	67	534	686	1800	2300	10.4
23920 CA	100	140	30	173	278	2600	3500	1.39
24020 CA	100	150	50	242	425	1500	2000	3.15
24020 C	100	150	50	242	425	1500	2000	3.15
24120 CA	100	165	65	389	632	1300	1700	5.54
24120 C	100	165	65	389	632	1300	1700	5.54
23120 CA	100	165	52	326	490	1700	2200	4.39
23120 C	100	165	52	326	490	1700	2200	4.39
22334 CA	170	360	120	1500	2090	980	1300	61.1
22334 C	170	360	120	1500	2090	980	1300	61.1
23936 CA	180	250	52	447	849	1500	2000	7.98
23036 CA	180	280	74	702	1170	1100	1500	17.3
23036 C	180	280	74	702	1170	1100	1500	17.3
24036 CA	180	280	100	936	1710	810	1100	23.5
24036 C	180	280	100	936	1710	810	1100	23.5

ApplicationsHere are examples of applications in which spherical roller bearings might be used:
Wind energyMining, mineral processing and cementMaterial handlingPulp and paperIndustrial transmissionMetalsMarineCompany ProfileShandong Dente International Trade Co.,Ltd has taken in this line for more than 20 years. Besides of our own factory, we also cooperate with more than 500 bearing factories to meet market requirements. Our products include deep groove ball bearings, tapered roller bearings, pillow block bearings, self-aligning ball bearings, spherical roller bearings, cylindrical roller bearings, thrust ball bearings, non-standard bearings of automobiles. Simultaneously we also supply needle roller bearings, stainless steel bearings ,inch series bearings, non-standard bearings, imported bearings of global brand, wheel hub bearings.
Testing equipment
Company testing center is equipped with professional testing equipment,bearings produced by professional and technical personnel to detect bearing greatly enchance the ability to control the technical indicators,to ensure that the pass rate of products manufactured to meet customer demand.
DNT bearing products used have undergone multiple rigorous technical screening, testing, and release to ensure that the performance of each product matches the precision of the unit and device. The factory has complete testing equipment, ensuring safety and quality that you can rest assured!CertificationsFAQQ:Who are you?A:We are the biggest supplier of bearing in China. Shandong Dente International Trade Co.,Ltd
Q:Do you provide samples ? is it free or extra ?
A:Yes, we could offer the sample but it is not free.
Q:What kind of shipment will you use?
A:Boat and FedEx,TNT,DHL,UPS,EMS etc.
Q:Could you make bearings with our OEM logo,color and packing?
A: Of course. What you need to do is email us the brand logo and colors.
Q: How long is your delivery time?
A: Generally it is 37 days if the goods are in stock. or it is 1530 days if the goods are not in stock, it is according to quantity.
Q: Will you check these products before shipment?
A: Yes, before shipment products will be strictly inspection on our factory QC Process System.We have a professional QC team.
Q: What's the Payment Terms ?
A: Usually we accept T/T ,western union ,and order online.
